Native Instruments MASCHINE MK3 User Manual

7.3 Using Gate Mode
Gate mode is used to chop and pitch selected parts of your audio by applying MIDI note events
in the Keyboard view of the Pattern Editor or by recording them using your controller. Each
event is a gate for the audio; the length determines the duration of playback, and placement
on the scale determines the pitch. By chopping and pitching the loop you can create melodies
or even use it for effect on drums.
In Keyboard view MIDI note events are visually layered on top of the audio waveform and can
be edited or deleted at any time, and more importantly, the audio can be changed at any time
while retaining the MIDI note events in the Pattern, meaning you can keep the phrasing and
melody but use different audio for the playback.

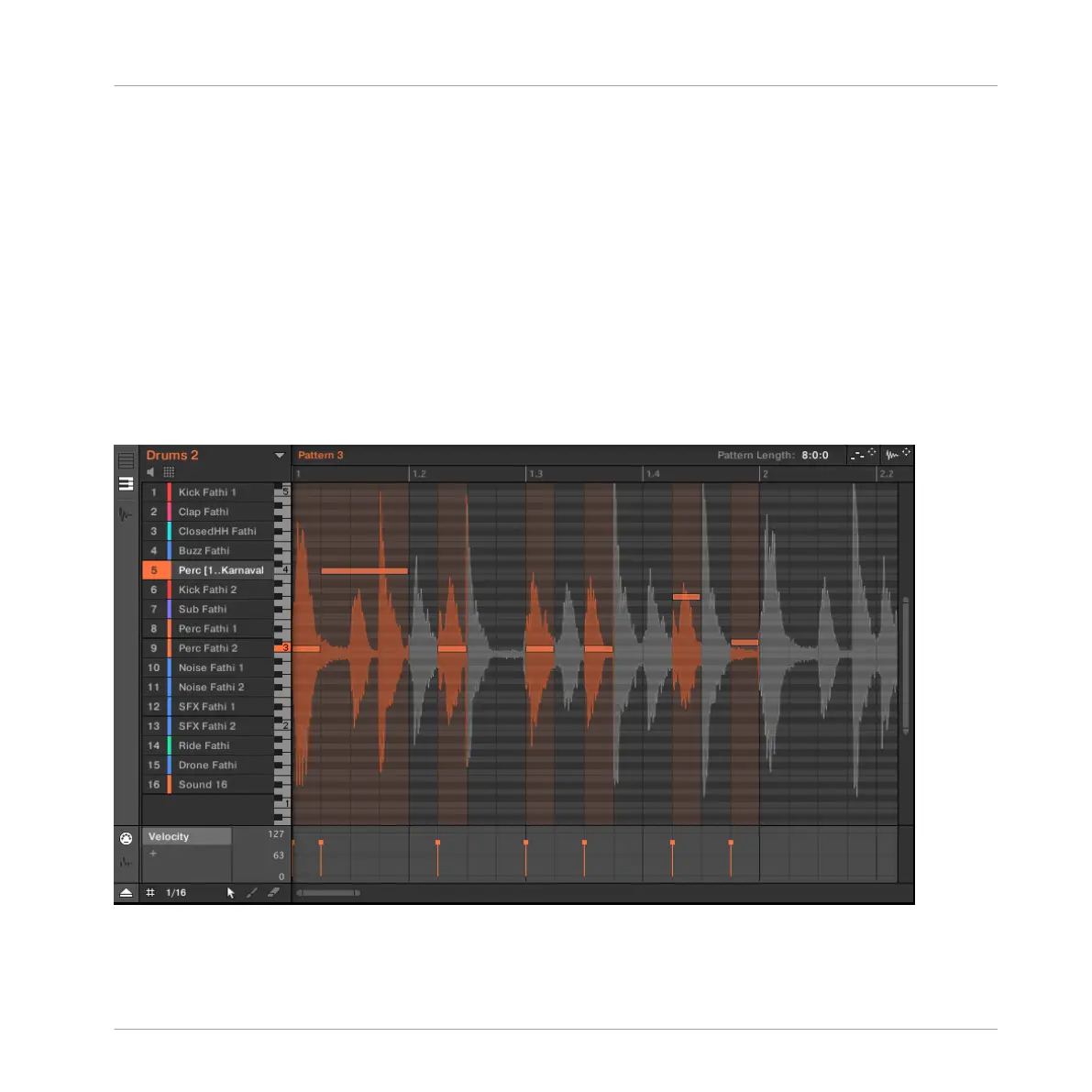

Gate Mode in the Pattern Editor with an audio waveform and MIDI Events.
Using the Audio Plug-in
Using Gate Mode
MASCHINE - Manual - 333

Native Instruments MASCHINE MK3 Specifications

General

Encoders	8 touch-sensitive knobs
Audio Interface	24-bit / 96 kHz
MIDI I/O	1 x MIDI In, 1 x MIDI Out
USB	USB 2.0
Pads	16 x Multi-color Pads, Velocity-Sensitive, Aftertouch
Display	2 full-color screens
Outputs	1/4" TRS Line Outputs, Stereo Headphone Output
Software	Maschine Software
Power Supply	USB bus-powered
Dimensions	320 x 301 x 41 mm
Weight	2.2 kg
System Requirements	Intel Core i5, 4 GB RAM
Inputs	1 x 1/4" TRS Mic Input, 2 x 1/4" TRS Line Inputs
