Native Instruments MASCHINE MK3 User Manual

Level Meters in the Compressor Panel (Plug-in Strip)
In the Plug-in Strip, the Compressor panel offers a few extra features not available in the Con-
trol area:
▪ The Threshold and Gain faders (corresponding to the Threshold and Gain parameters of the
Main page in the Control area) provide level meters for visual monitoring of the input and
output levels. In particular, by comparing the input level with the position of the Threshold
fader, you can easily see you which parts of the signal will be compressed, and adjust the
Threshold fader accordingly.
▪ An additional GR level meter indicates the gain reduction currently applied by the Compres-
sor to the input signal.
14.1.2 Gate
The Gate cuts any part of the input signal which falls below the input threshold. This can be
used to rhythmically chop the signal and make it stutter or sound staccato.
If this effect is used in a Sound or a Group, it also provides a Side-Chain Input page (in the
Control area and on your controller).

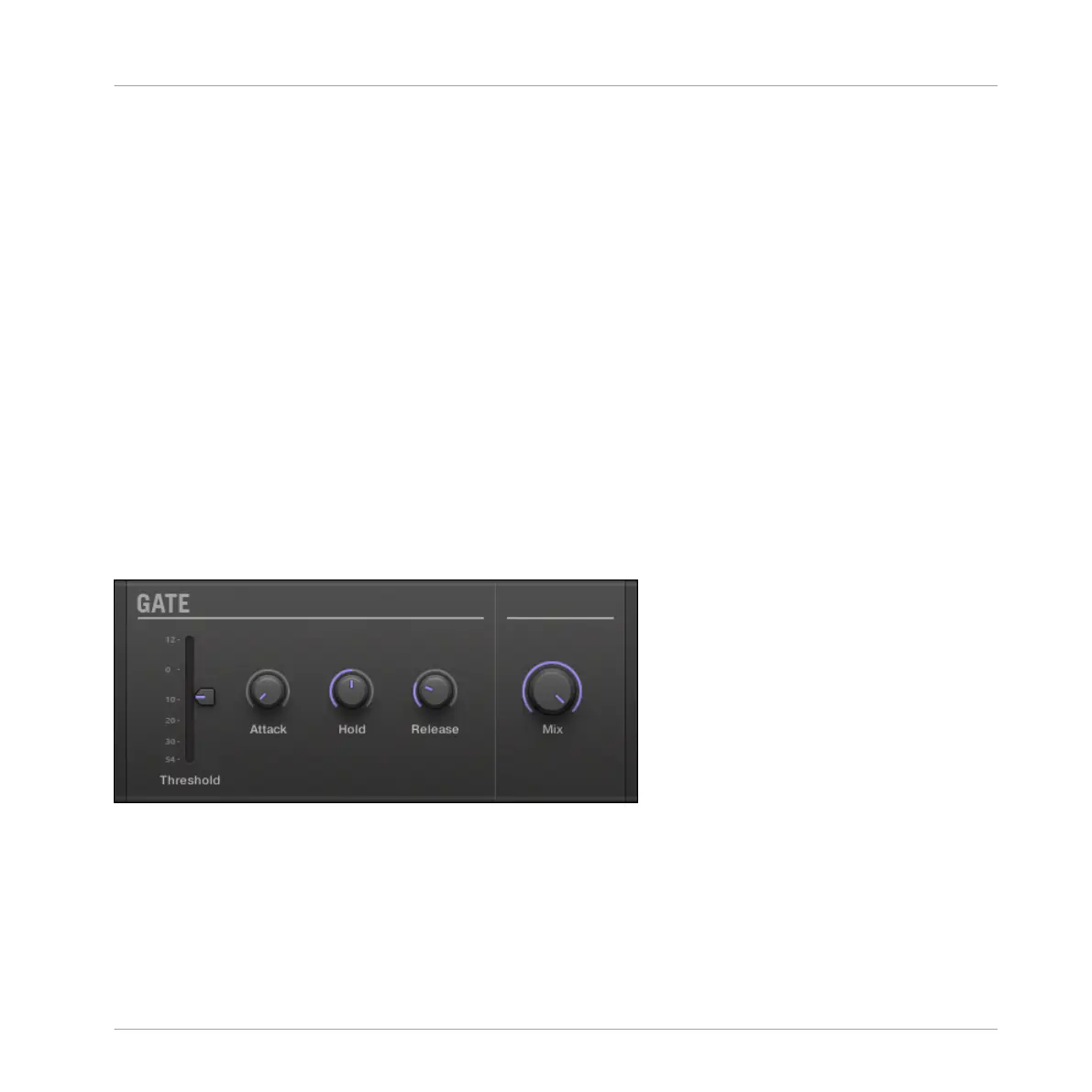

The Gate panel in the Plug-in Strip.
Effect Reference
Dynamics
MASCHINE - Manual - 664

Native Instruments MASCHINE MK3 Specifications

General

Encoders	8 touch-sensitive knobs
Audio Interface	24-bit / 96 kHz
MIDI I/O	1 x MIDI In, 1 x MIDI Out
USB	USB 2.0
Pads	16 x Multi-color Pads, Velocity-Sensitive, Aftertouch
Display	2 full-color screens
Outputs	1/4" TRS Line Outputs, Stereo Headphone Output
Software	Maschine Software
Power Supply	USB bus-powered
Dimensions	320 x 301 x 41 mm
Weight	2.2 kg
System Requirements	Intel Core i5, 4 GB RAM
Inputs	1 x 1/4" TRS Mic Input, 2 x 1/4" TRS Line Inputs
