Native Instruments MASCHINE MK3 User Manual

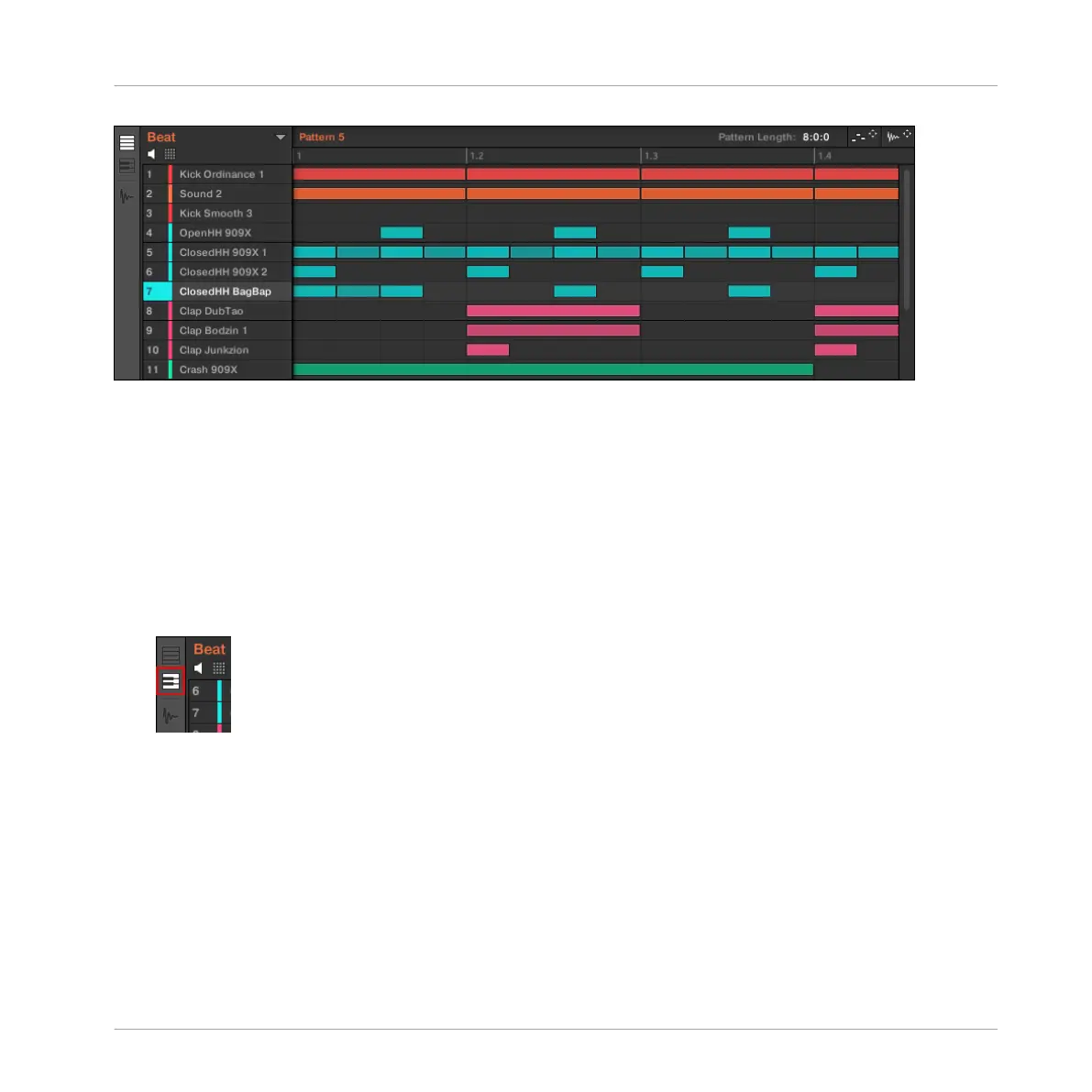

In Group view, the Pattern Editor shows the events for all Sounds in the Group.
This view is well suited for rhythmic instruments (e.g., a drum kit), since you can see and edit
the events for all Sounds at once, without worrying about the pitch of the events you create or
edit.
The Keyboard View
Alternatively, you can switch the Pattern Editor to Keyboard view:
► Click the Keyboard View button (showing a little keyboard) on the left of the Pattern Edi-
tor to switch it to Keyboard view:
→ The Event area now only shows notes for the selected Sound. By adding or editing notes,
you can choose their pitch in semitones depending on where you place them on the verti-
cal axis, the lowest note being the lowest row.
Working with Patterns
Pattern Basics
MASCHINE - Manual - 437

Native Instruments MASCHINE MK3 Specifications

General

Encoders	8 touch-sensitive knobs
Audio Interface	24-bit / 96 kHz
MIDI I/O	1 x MIDI In, 1 x MIDI Out
USB	USB 2.0
Pads	16 x Multi-color Pads, Velocity-Sensitive, Aftertouch
Display	2 full-color screens
Outputs	1/4" TRS Line Outputs, Stereo Headphone Output
Software	Maschine Software
Power Supply	USB bus-powered
Dimensions	320 x 301 x 41 mm
Weight	2.2 kg
System Requirements	Intel Core i5, 4 GB RAM
Inputs	1 x 1/4" TRS Mic Input, 2 x 1/4" TRS Line Inputs
