Native Instruments MASCHINE MK3 User Manual

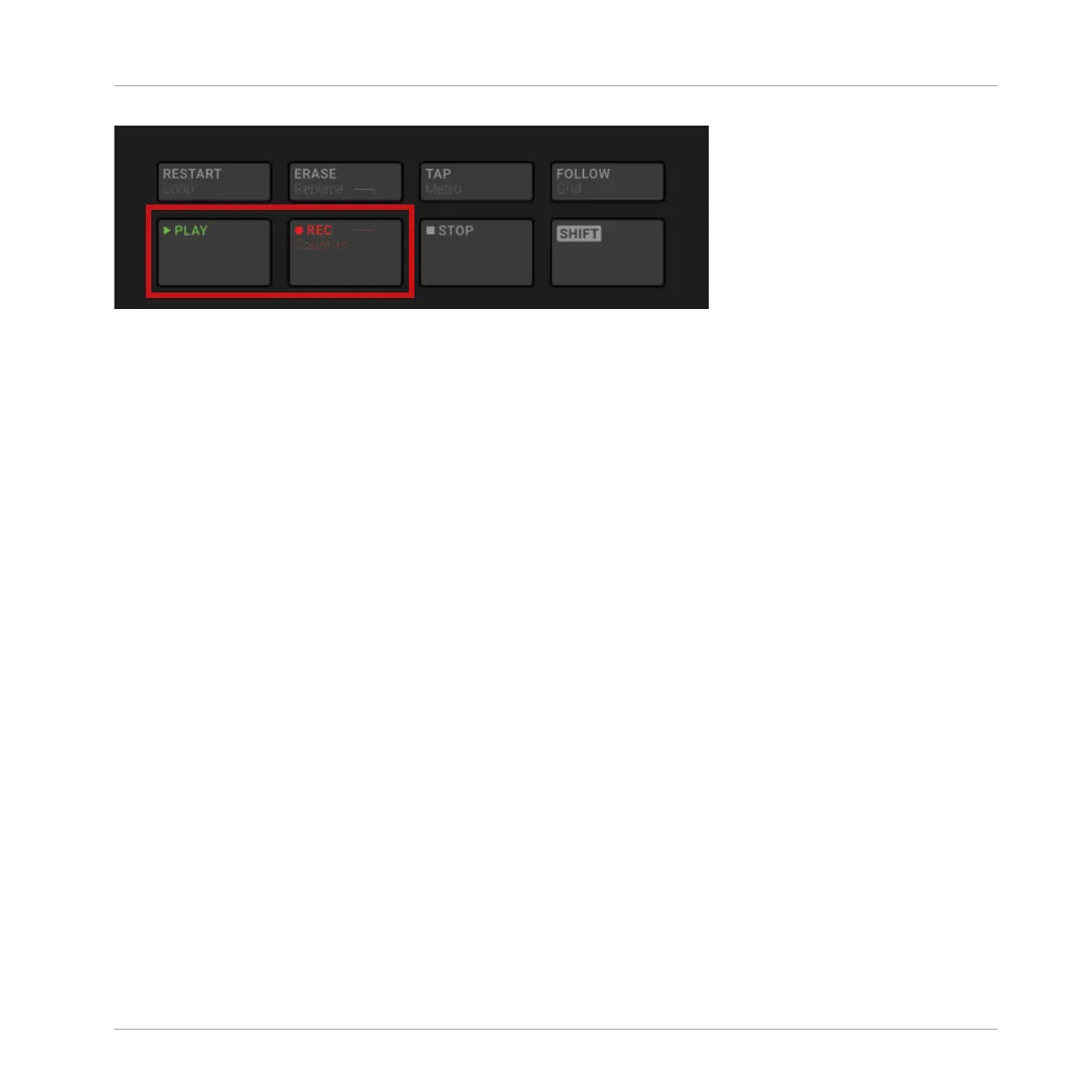

Recording a Pattern: press PLAY then REC and hit some pads!
1. Press PLAY to start the sequencer.
The PLAY button lights up.
2. Press REC to begin recording.
The REC button lights up.
3. Now hit the pads you want to record and listen to what happens.
Each hit will create an event in the Pattern Editor, the event length depends on how long
you hold the pad. Your pad hits keep on being added to the existing events in the Pattern,
even as the Pattern cycles.
4. When you’re done, press REC again to stop recording the pads.
The REC button turns off. The sequencer keeps playing until you press PLAY again.
Replace Mode
When recording in Replace mode the events of the selected Sound(s) are replaced by what you
play.
1. Select the Sound(s) of which you want to replace events: In Group mode you can select
multiple Sounds (see section ↑4.1.3, Selecting Multiple Sounds or Groups); in Keyboard
mode only the focused Sound (the one played by your pads) will have its events replaced.
2. Press PLAY to start the sequencer.
The PLAY button lights up.
3. Press ERASE + REC to begin recording in Replace mode.
The ERASE and REC buttons light up.
Working with Patterns
Recording Patterns in Real Time
MASCHINE - Manual - 448

Native Instruments MASCHINE MK3 Specifications

General

Encoders	8 touch-sensitive knobs
Audio Interface	24-bit / 96 kHz
MIDI I/O	1 x MIDI In, 1 x MIDI Out
USB	USB 2.0
Pads	16 x Multi-color Pads, Velocity-Sensitive, Aftertouch
Display	2 full-color screens
Outputs	1/4" TRS Line Outputs, Stereo Headphone Output
Software	Maschine Software
Power Supply	USB bus-powered
Dimensions	320 x 301 x 41 mm
Weight	2.2 kg
System Requirements	Intel Core i5, 4 GB RAM
Inputs	1 x 1/4" TRS Mic Input, 2 x 1/4" TRS Line Inputs
