Native Instruments MASCHINE MK3 User Manual

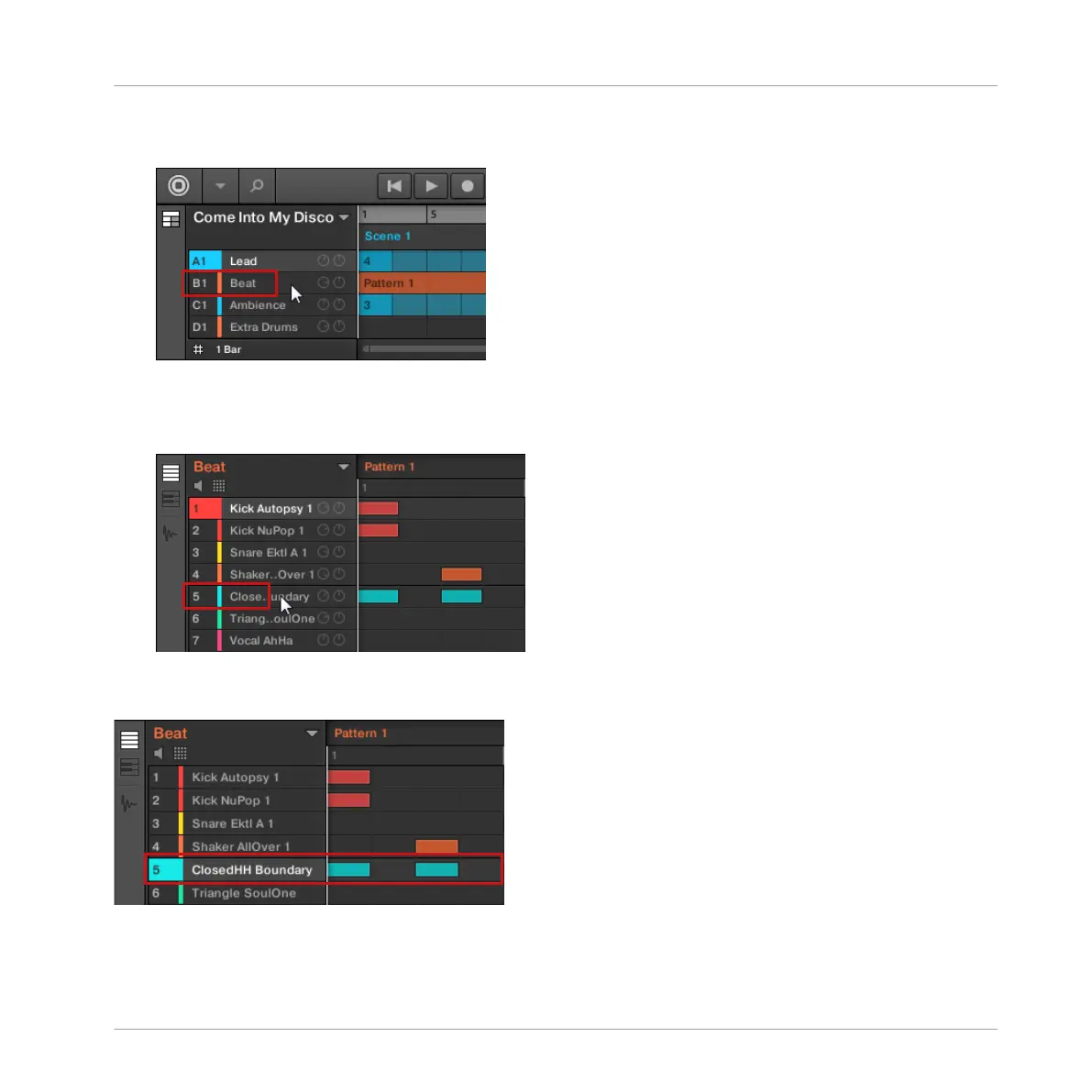

1. Set the focus to the Group containing the desired Sound by clicking it in the Group List
on the left of the Arranger (see above).
The focused Group is highlighted. The Pattern Editor displays the Sounds and Patterns of
that Group.
2. Click the desired Sound slot in the Sound List of the Pattern Editor:
→ The focused Sound slot is highlighted.
The focused Sound slot is highlighted.
Basic Concepts
Common Operations
MASCHINE - Manual - 45

Native Instruments MASCHINE MK3 Specifications

General

Encoders	8 touch-sensitive knobs
Audio Interface	24-bit / 96 kHz
MIDI I/O	1 x MIDI In, 1 x MIDI Out
USB	USB 2.0
Pads	16 x Multi-color Pads, Velocity-Sensitive, Aftertouch
Display	2 full-color screens
Outputs	1/4" TRS Line Outputs, Stereo Headphone Output
Software	Maschine Software
Power Supply	USB bus-powered
Dimensions	320 x 301 x 41 mm
Weight	2.2 kg
System Requirements	Intel Core i5, 4 GB RAM
Inputs	1 x 1/4" TRS Mic Input, 2 x 1/4" TRS Line Inputs
