Native Instruments MASCHINE MK3 User Manual

Closing the Pattern Manager
► To close the Pattern Manager, click anywhere outside it.
The Pattern Mode on Your Controller
The Pattern mode is where you select and manage your Patterns.
► To enter Pattern mode on your controller, press and hold PATTERN (you can pin it by
pressing Button 1 at the same time).
→ Your controller switches to Pattern mode. This is indicated by the lit PATTERN button.

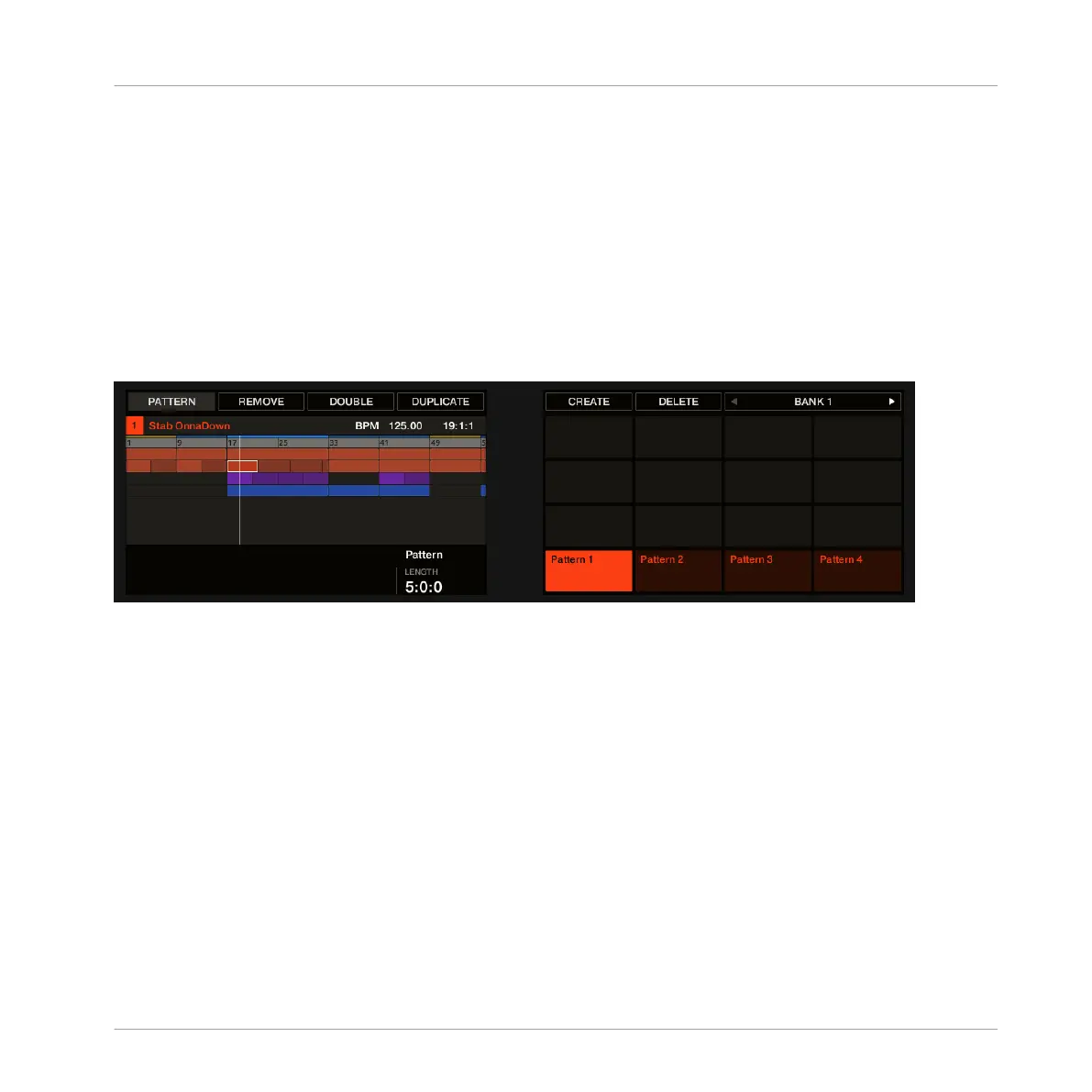

The hardware displays in Pattern mode.
On the right display, you will see all available Pattern slots in the selected Pattern bank repre-
sented as a square of 4x4 cells:
▪ The highlighted cell indicates the selected Pattern slot.
▪ Cells showing a name represent Pattern slots containing a Pattern.
▪ Empty cells represent empty Pattern slots.
This grid of cells corresponds to the pads on your controller:
▪ The fully lit pad indicates the selected Pattern slot.
▪ Dim lit pads indicate Pattern slots containing a Pattern.
▪ Unlit pads represent empty Pattern slots.
Working with Patterns
Managing Patterns
MASCHINE - Manual - 503

Native Instruments MASCHINE MK3 Specifications

General

Encoders	8 touch-sensitive knobs
Audio Interface	24-bit / 96 kHz
MIDI I/O	1 x MIDI In, 1 x MIDI Out
USB	USB 2.0
Pads	16 x Multi-color Pads, Velocity-Sensitive, Aftertouch
Display	2 full-color screens
Outputs	1/4" TRS Line Outputs, Stereo Headphone Output
Software	Maschine Software
Power Supply	USB bus-powered
Dimensions	320 x 301 x 41 mm
Weight	2.2 kg
System Requirements	Intel Core i5, 4 GB RAM
Inputs	1 x 1/4" TRS Mic Input, 2 x 1/4" TRS Line Inputs
