Native Instruments MASCHINE MK3 User Manual

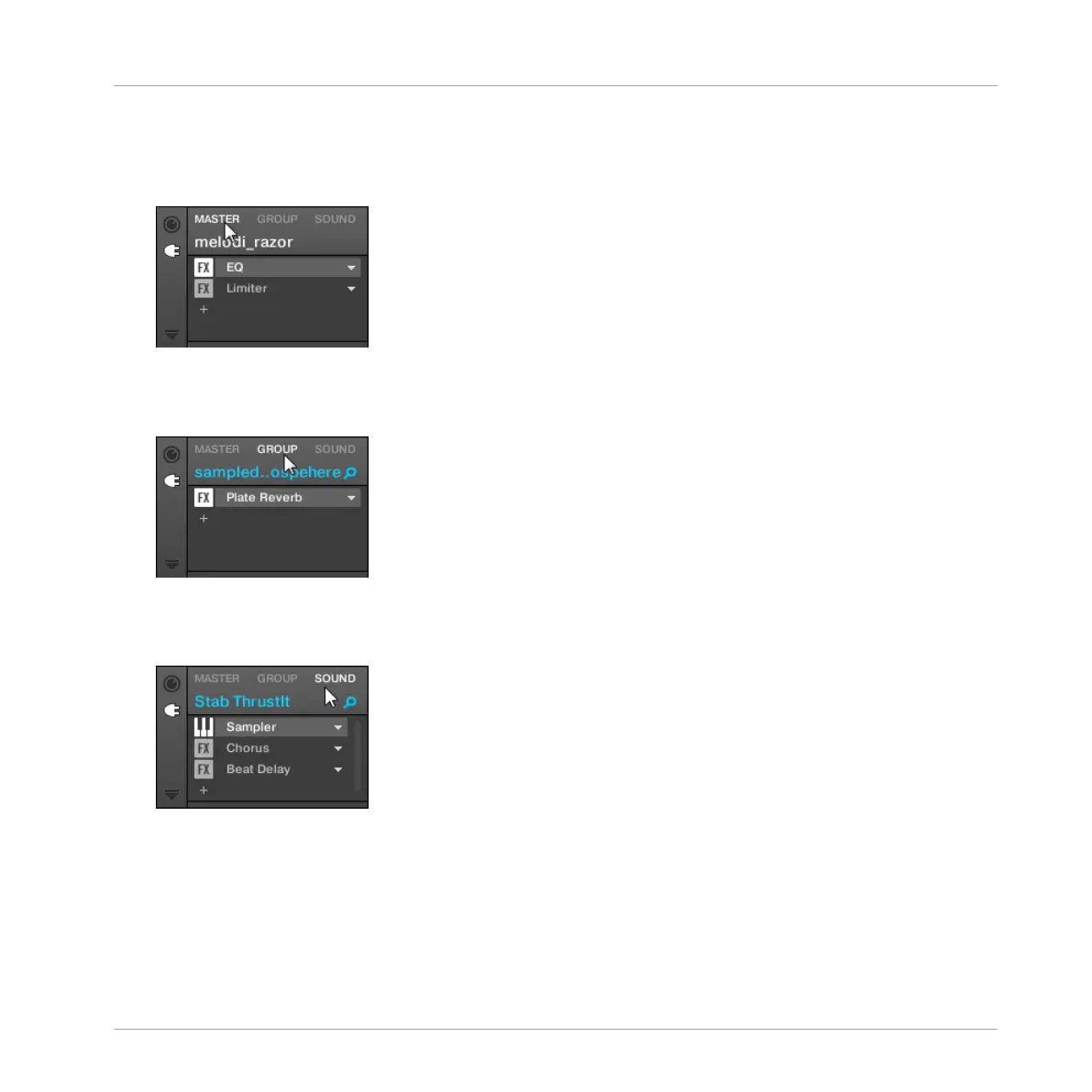

Choose the Channel in Which the Effect Is to Be Inserted
1. If you want to apply the effect to the Master (to process the audio of the whole Project),
click the MASTER tab in the top left corner of the Control area.
2. If you want to apply the effect to a Group (to process the audio of the whole Group), click
the desired Group on the left of the Arranger, and click the GROUP tab in the top left cor-
ner of the Control area.
3. If you want to apply the effect to a Sound, click its parent Group in the Group List (on the
left of the Arranger), click the desired Sound slot in the Sound List (on the left of the Pat-
tern Editor), and click the SOUND tab in the top left corner of the Control area.
Using Effects
Applying Effects to a Sound, a Group or the Master
MASCHINE - Manual - 628

Native Instruments MASCHINE MK3 Specifications

General

Encoders	8 touch-sensitive knobs
Audio Interface	24-bit / 96 kHz
MIDI I/O	1 x MIDI In, 1 x MIDI Out
USB	USB 2.0
Pads	16 x Multi-color Pads, Velocity-Sensitive, Aftertouch
Display	2 full-color screens
Outputs	1/4" TRS Line Outputs, Stereo Headphone Output
Software	Maschine Software
Power Supply	USB bus-powered
Dimensions	320 x 301 x 41 mm
Weight	2.2 kg
System Requirements	Intel Core i5, 4 GB RAM
Inputs	1 x 1/4" TRS Mic Input, 2 x 1/4" TRS Line Inputs
