Native Instruments MASCHINE MK3 User Manual

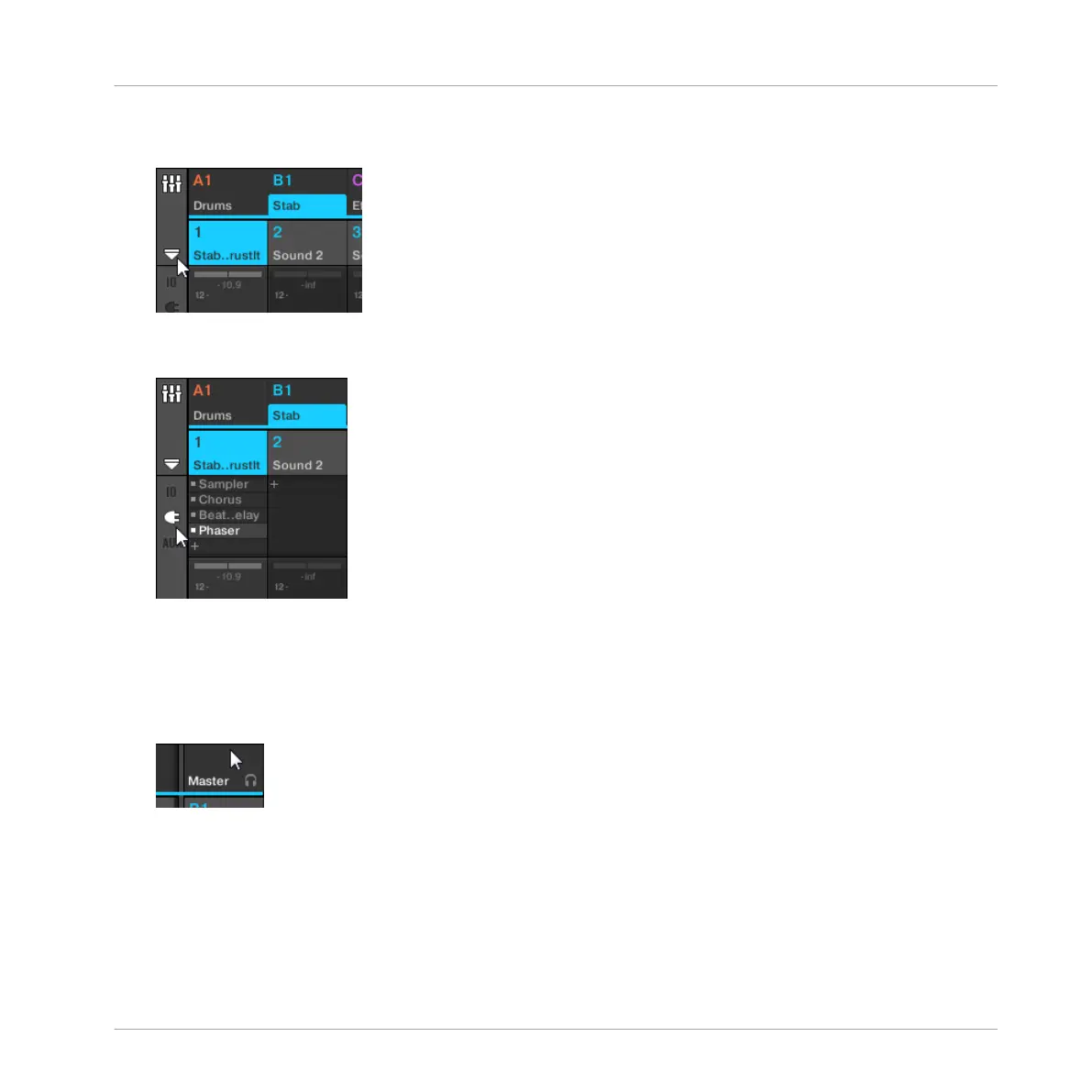

2. If it’s not already open, open the extended view of the Mixer by clicking the down-pointing
arrow at the left of the Mixer:
3. Check that the Plug-in icon is active on the left of the Mixer — if not, click it to display
the Plug-in List in each channel strip.
Then, put the focus on the channel (Master, Group or Sound) in which you want to load the
effect:
1. To set the focus to the Master channel: In the top right corner of the Mixer, click in the
blank space above the Master label and headphones icon to set the focus to the Master/
Cue channel strip.
If necessary click Master in that header to switch from the Cue channel to the Master
channel.
2. To set the focus to a Group channel: If the Mixer is currently displaying the Group channel
strips, click the header of the desired Group at the top of the Mixer. If the Mixer is cur-
rently displaying Sound channel strips, double-click the header of the desired Group at
the top of the Mixer.
Using Effects
Applying Effects to a Sound, a Group or the Master
MASCHINE - Manual - 632

Native Instruments MASCHINE MK3 Specifications

General

Encoders	8 touch-sensitive knobs
Audio Interface	24-bit / 96 kHz
MIDI I/O	1 x MIDI In, 1 x MIDI Out
USB	USB 2.0
Pads	16 x Multi-color Pads, Velocity-Sensitive, Aftertouch
Display	2 full-color screens
Outputs	1/4" TRS Line Outputs, Stereo Headphone Output
Software	Maschine Software
Power Supply	USB bus-powered
Dimensions	320 x 301 x 41 mm
Weight	2.2 kg
System Requirements	Intel Core i5, 4 GB RAM
Inputs	1 x 1/4" TRS Mic Input, 2 x 1/4" TRS Line Inputs
