Native Instruments MASCHINE MK3 User Manual

4. Press Button 5/6 to select OUTPUT.

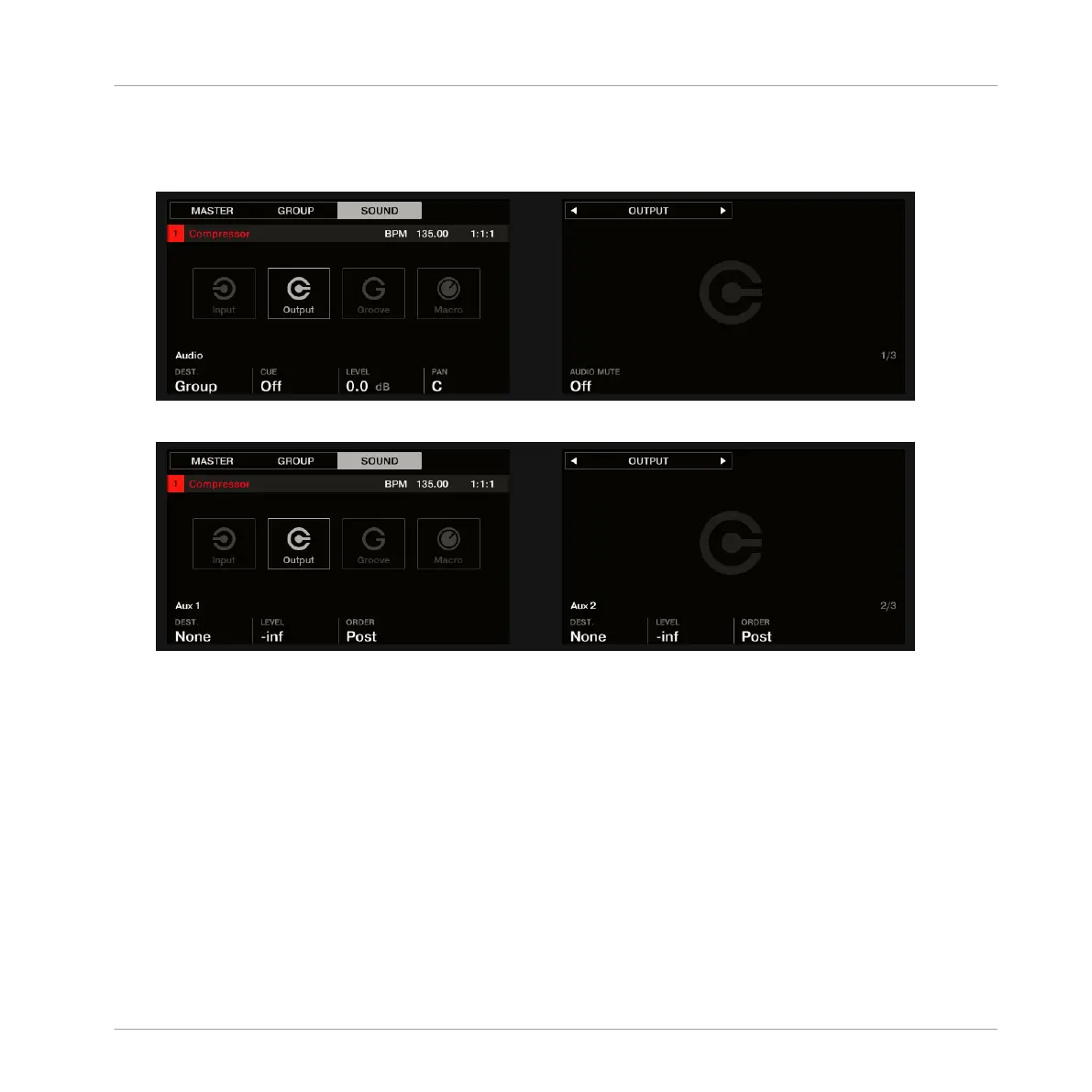

The Output properties are shown in the displays of your controller (in the example under-
neath we show the Output properties of a Sound).
5. Press the right Page button to select the Aux page of parameters.
6. Turn Knob 1 (Aux 1 DEST.) to assign the first auxiliary output to the desired send effect.
In addition to the usual entries available in both fields, you will find all the Sounds and
Groups with an Effect Plug-in loaded in their first Plug-in slot — see ↑13.3.1, Step 1: Set
Up a Sound or Group as Send Effect. For each Sound, the entry shows the Group letter
Using Effects
Creating a Send Effect
MASCHINE - Manual - 654

Native Instruments MASCHINE MK3 Specifications

General

Encoders	8 touch-sensitive knobs
Audio Interface	24-bit / 96 kHz
MIDI I/O	1 x MIDI In, 1 x MIDI Out
USB	USB 2.0
Pads	16 x Multi-color Pads, Velocity-Sensitive, Aftertouch
Display	2 full-color screens
Outputs	1/4" TRS Line Outputs, Stereo Headphone Output
Software	Maschine Software
Power Supply	USB bus-powered
Dimensions	320 x 301 x 41 mm
Weight	2.2 kg
System Requirements	Intel Core i5, 4 GB RAM
Inputs	1 x 1/4" TRS Mic Input, 2 x 1/4" TRS Line Inputs
