Native Instruments MASCHINE MK3 User Manual

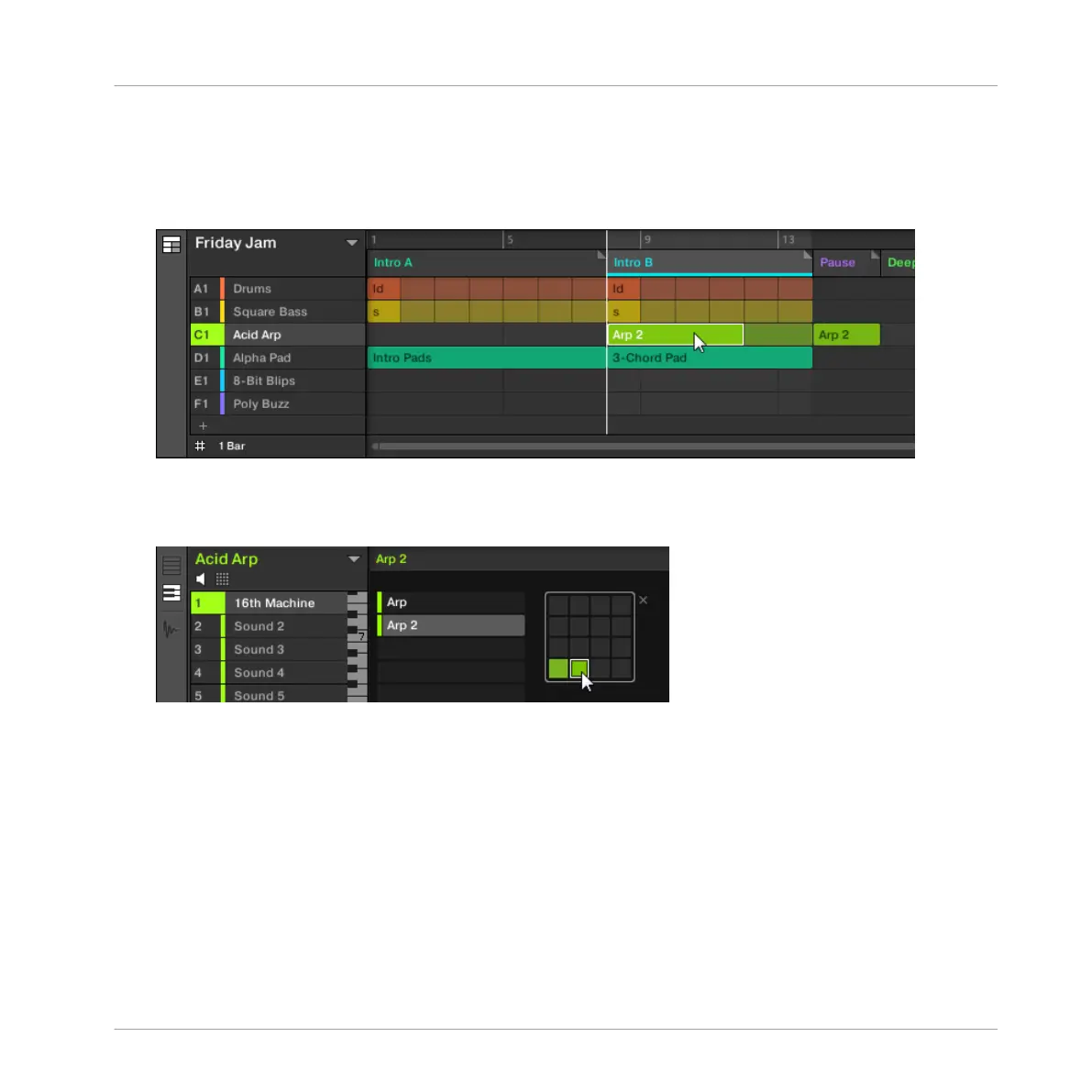

Assigning a Pattern in Arranger View
1. In the Arranger, click the cell located in the column of the desired Section and in the row
of the desired Group.
This selects both the desired Section and Group simultaneously.
You can also click the desired Section label and Group separately.
2. In the Pattern Editor, open the Pattern Manager and click the desired Pattern slot to se-
lect it (see section ↑10.7.2, Selecting Patterns and Pattern Banks for more information).
→ Upon your selection, the Pattern is inserted into the selected Section:
▪ The Pattern replaces any previous Pattern for that Group in the Section.
▪ The Pattern displays its name and color.
▪ The Pattern is inserted at the beginning of the Section. If the Pattern is longer than the
Section, the Section is extended to include the entire Pattern. If the Pattern is shorter than
the Section, the Pattern is automatically repeated in order to fill the entire Section.
▪ The corresponding Pattern will now be played by that Section.
▪ Additionally this Pattern is loaded in the Pattern Editor, ready to be modified.
Working with the Arranger
Using Arranger View
MASCHINE - Manual - 793

Native Instruments MASCHINE MK3 Specifications

General

Encoders	8 touch-sensitive knobs
Audio Interface	24-bit / 96 kHz
MIDI I/O	1 x MIDI In, 1 x MIDI Out
USB	USB 2.0
Pads	16 x Multi-color Pads, Velocity-Sensitive, Aftertouch
Display	2 full-color screens
Outputs	1/4" TRS Line Outputs, Stereo Headphone Output
Software	Maschine Software
Power Supply	USB bus-powered
Dimensions	320 x 301 x 41 mm
Weight	2.2 kg
System Requirements	Intel Core i5, 4 GB RAM
Inputs	1 x 1/4" TRS Mic Input, 2 x 1/4" TRS Line Inputs
