Manually Configuring Internet and WAN Settings
67
ProSecure Unified Threat Management (UTM) Appliance

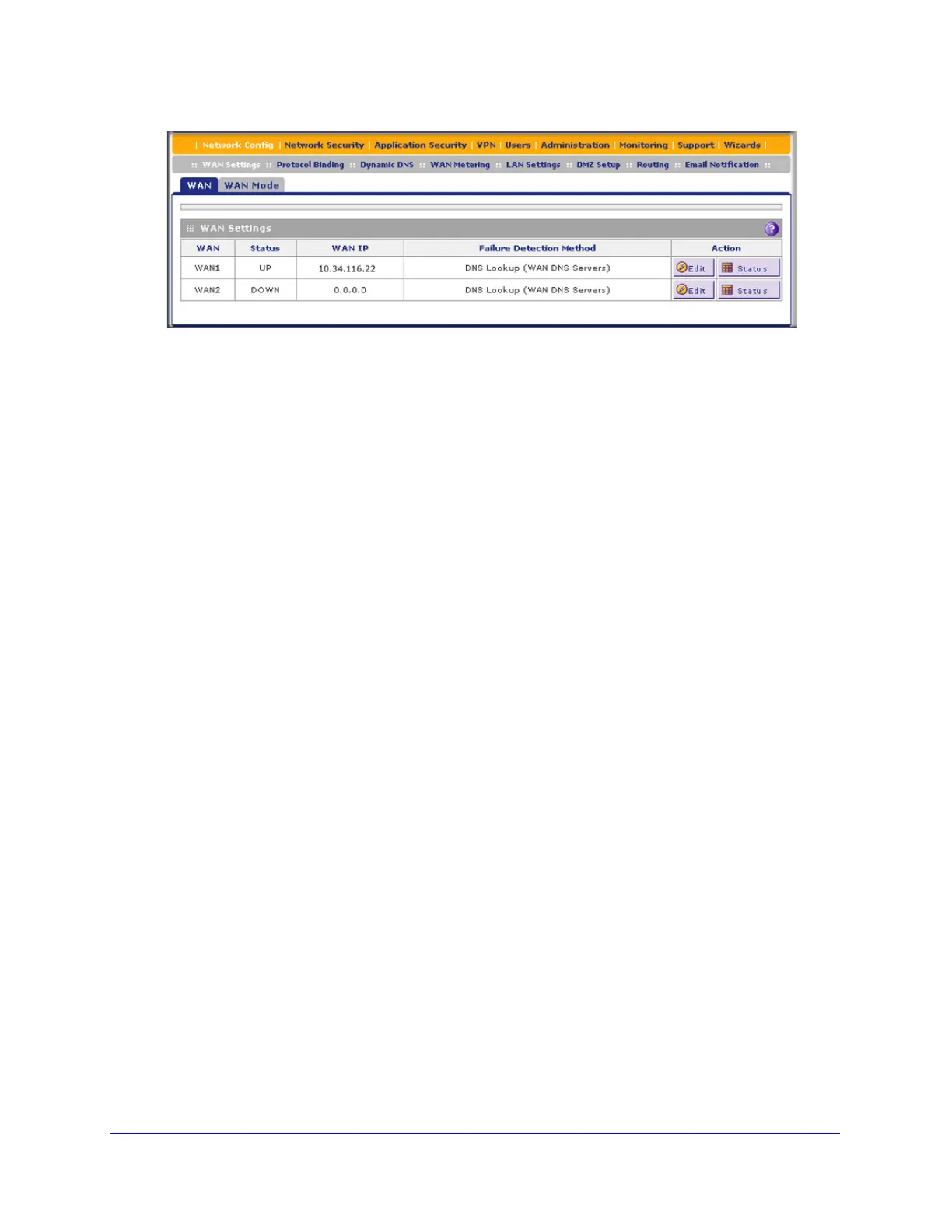

Figure 36.
The UTM5 and UTM10 screens show one WAN interface; the UTM25 and UTM50
screens show two WAN interfaces; the UTM150 screen shows four WAN interfaces; the
UTM9S screen shows two WAN interfaces and a slot (SLOT-1 or SLOT-2), in which the
xDSL module is installed.
The WAN Settings table displays the following fields:
• WAN. The WAN interface.
• Status. The status of the WAN interface (UP or DOWN).
• WAN IP. The IP address of the WAN interface.
• Failure Detection Method. The failure detection method that is active for the WAN
interface. The following methods can be displayed:
- None
- DNS Lookup (WAN DNS Servers)
- DNS Lookup (the configured IP address is displayed)
- PING (the configured IP address is displayed)
You can set the failure detection method for each WAN interface on its corresponding
WAN Advanced Options screen (see Configure Auto-Rollover Mode and the Failure
Detection Method (Multiple WAN Port Models) on page 77).
• Action. The Edit button provides access to the WAN ISP Settings screen (see
Step 2) for the corresponding WAN interface; the Status button provides access to the
Connection Status screen (see Step 4) for the corresponding WAN interface.
2. Click the Edit button in the Action column of the WAN interface or slot for which you want to
automatically configure the connection to the Internet. The WAN ISP Settings screen
displays.
The following figure shows the WAN1 ISP Settings screen of the UTM50 as an example:
