 To add or edit a VLAN profile:
1. Select Network Config > LAN Settings. The LAN submenu tabs display, with the LAN
Setup screen in view. The following figure shows the LAN Setup screen for the UTM50
with six LAN ports, and the default VLAN profile and another VLAN profile as examples.
Note that the screens for all other UTM models (not shown in this manual) have four
LAN ports in the Default VLAN section.
Note: For information about how to manage VLANs, see Port-Based
VLANs on page 93. The following information describes how to
configure a VLAN profile.

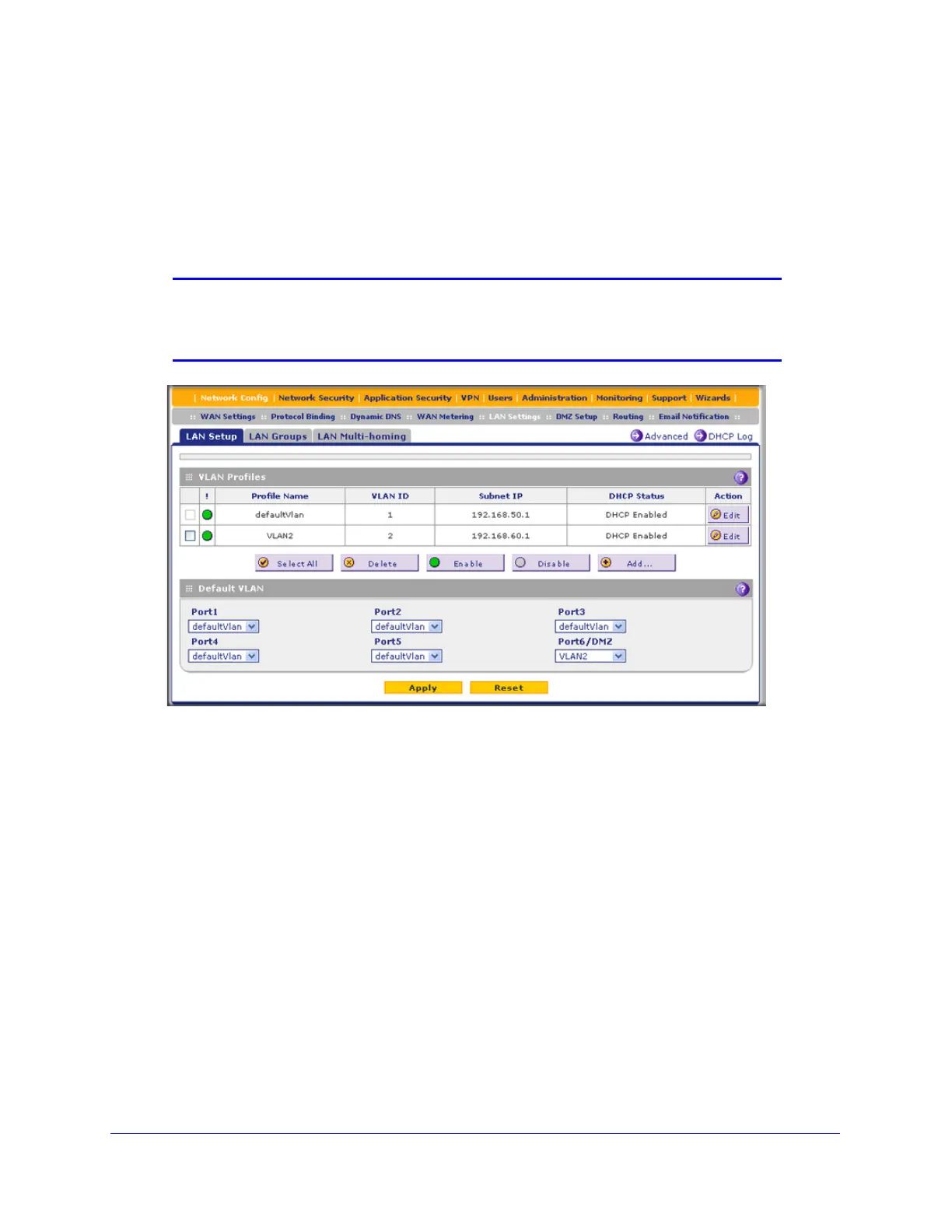

Figure 53.
2. Either select an entry from the VLAN Profiles table and click the corresponding Edit table
button, or add a new VLAN profile by clicking the Add table button under the VLAN Profiles
table. The Edit VLAN Profile screen displays. The following figure shows the Edit VLAN
Profile screen for the UTM with four ports in the Port Membership section. Note that the Edit
VLAN Profile screens for the UTM50 (not shown in this manual) has six ports in the Port
Membership section.
