Useful Functions for Operation
115
3
Performing Test Measurement/Starting Operation
Vision System FH/FZ5 Series
User’s Manual (Z340)

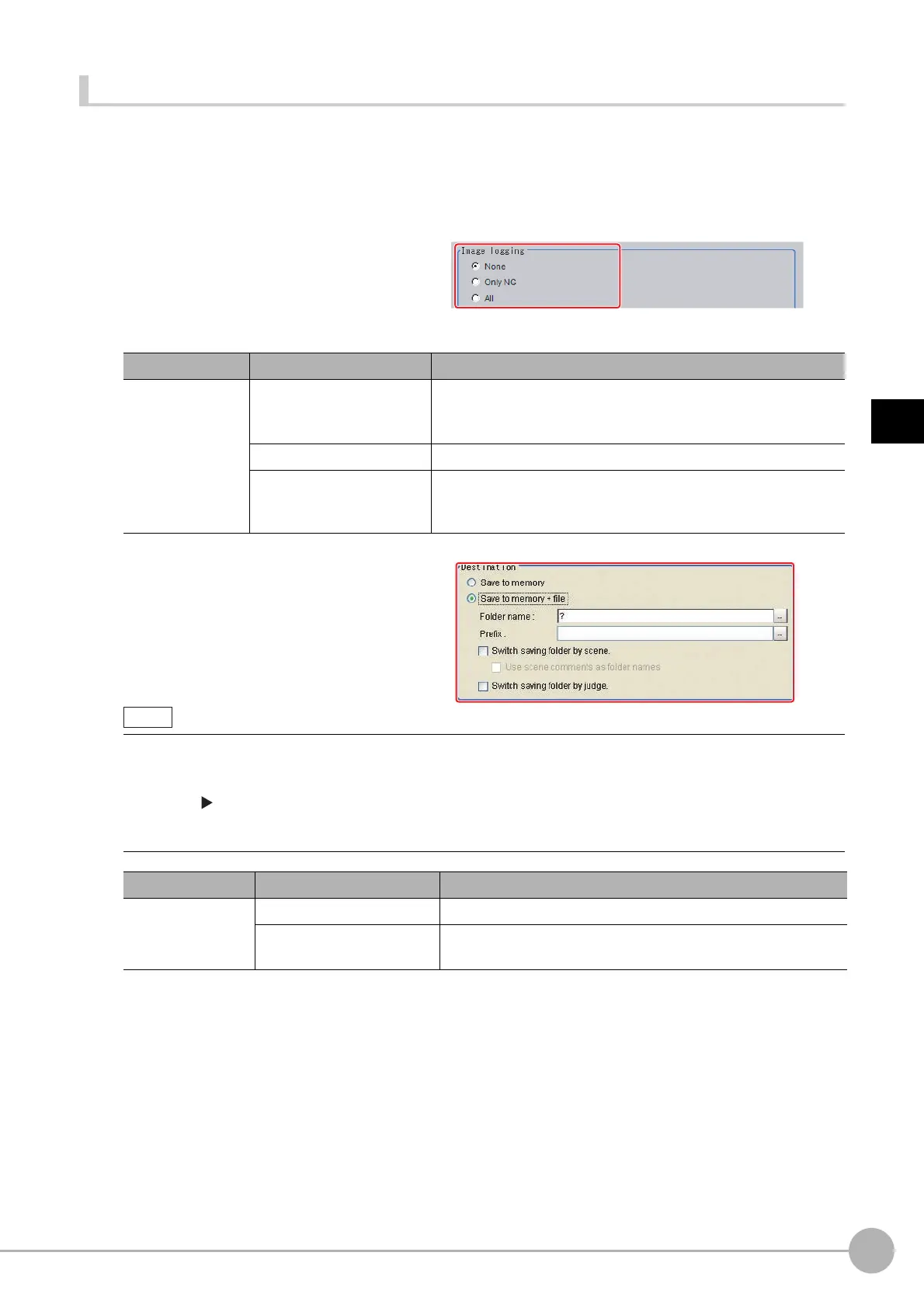

Setting Logging Conditions [Logging Setting]
Set the logging timing and the save destination.
1 In the Main Window, select [System settings] − [Other] − [Logging setting] from the [Tool]
menu.
The [Logging settings] dialog box is displayed.
2 Set the image logging conditions.
3 Set the logged image save destination.
Parameter Set value [Factory default] Description
Image logging
[None]
No images are saved.
When logging images with the processing item [Image Logging],
select [None].
Only NG Only images with an overall judgement of NG are saved.
All
All measured images are saved.
Some images may not be saved if [Measurement] is set in
[Logging priority] in step 4.
In order to perform logging quickly, image files are first saved in the Controller memory (RAM). The Controller
memory (RAM) for saving images is a ring memory. If the maximum number of save images is reached, images will
be overwritten starting with the oldest saved image if further images are saved.
Reference: About Number of Logging Images (p.856)
Also, the Controller memory is cleared if the power supply is turned OFF.
To keep images, select [Save to memory + file] and save images to external memory.
Parameter Set value [Factory default] Description
Destination
[Save to memory] Saves data to the Controller memory (RAM).
Save to memory + file
Images that are saved to the Controller memory (RAM) are saved
as files to a external memory or to the RAM disk in the Controller.
Note
