Displaying and Checking Processing Branches in a Scene
58
Vision System FH/FZ5 Series
User’s Manual (Z340)

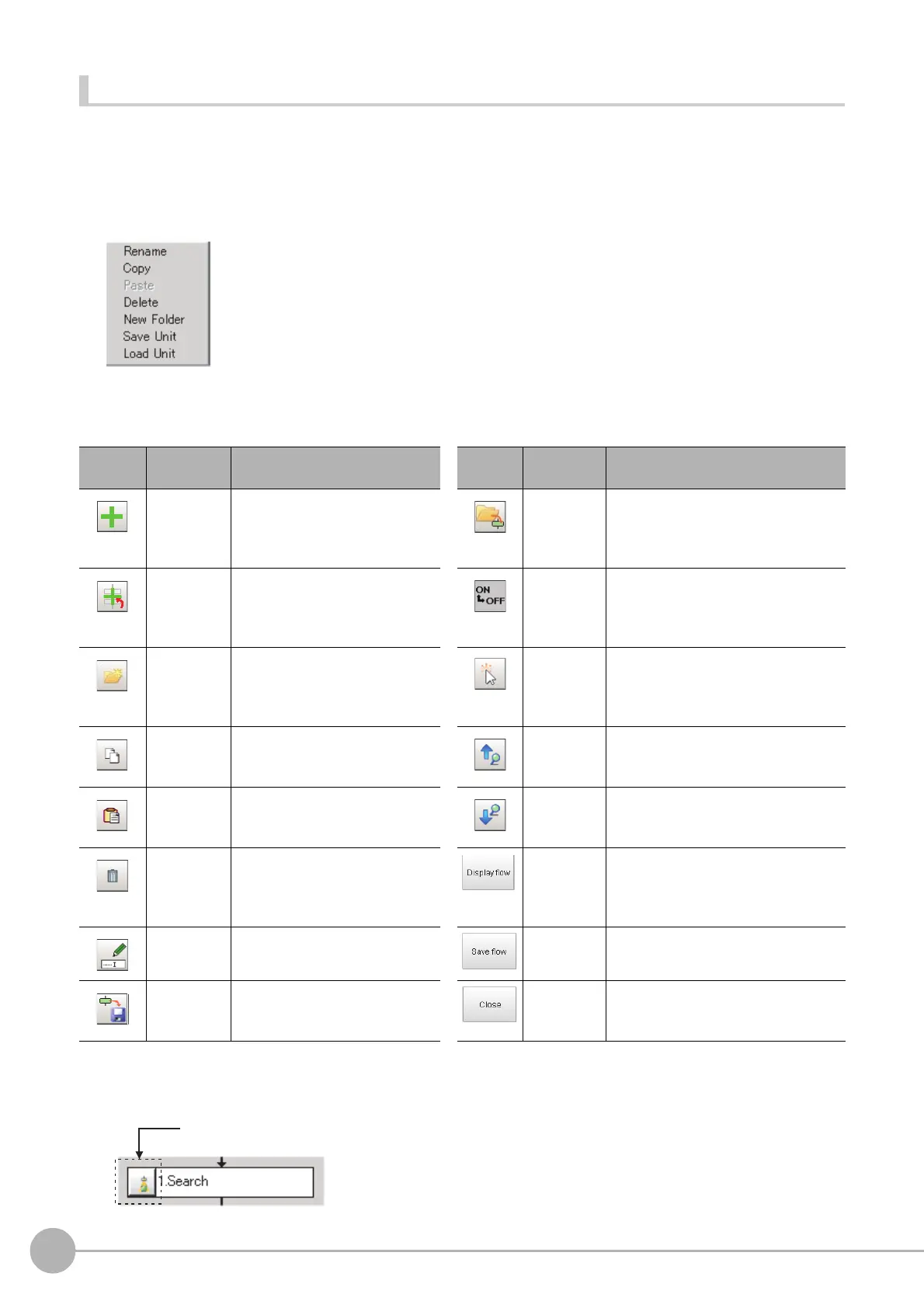

Flow Editing Functions
Repositioning a Unit within a Flow
On the Flow Builder, drag the unit to the desired position.
To insert a unit before another unit, drag it onto the desired unit.
Right-click Menu
The following popup menu is displayed when you right-click on a unit in the flow.
The menu commands perform the same operations as the Edit and Control Buttons.
Edit and Control Buttons
Changing the Properties of Units in a Flow
On the Flow Builder, click the icon to the left of the unit for which to change the properties. The property
dialog box for the unit is displayed.
Icon
button
Function Description
Icon
button
Function Description
Add to End
of Flow
Adds the selected item in the
item tree to the end of the flow
as a new unit.
Load Unit
Loads the settings for a processing
unit from a file (extension .unit) and
places it directly before the selected
unit in the flow.
Add before
Current Unit
Adds the selected item in the
item tree to the position directly
before the selected unit in the
flow as a new unit.
Measurement
ON/OFF
Used to turn off measurement
execution for individual in-scene
processing units so that measurement
is not executed.
New Folder
Creates a folder directly before
the selected unit in the flow.
Drag units to edit the contents of
the folder.
Movement
mode
Enables the flow display position to be
moved by drag operations instead of
by using the scroll bar.
Copy
Copies the selected unit in the
flow.
Search Up
Searches for the selected item in the
item tree upward from the selected
position in the flow.
Paste
Pastes the copied unit to the
position directly before the
selected unit in the flow.
Search
Down
Searches for the selected item on the
item tree in the downward direction
from the selected position in the flow.
Delete
Deletes the selected unit from
the flow.
Display
Entire Flow
Displays the entire flow in the center
of the view.
The [Save] button outputs the same
image as the [Save flow] button.
Rename
Renames the selected unit in the
flow.
Save Flow
Outputs the entire flow as an image
file (extension .jpg).
Save Unit
Saves the settings for the
selected unit in the flow to a file
(with the extension .unit).
Exit Flow
Viewer
Closes the Flow Viewer.
Click
