5.1.4. USB-RS485 Moxa Uport 1130 adapter
The serial UPort 1130 USB adapter offers a simple and comfortable method of
connecting an RS-422 or RS-485 device to your laptop or PC. The UPort 1130 is
connected to the USB port of your computer and complements your workstation
with a DB9 RS-422/485 serial interface. For simple installation and configuration,
Windows drivers are already integrated. The UPort 1130 can be used with new or
legacy serial devices and supports both 2- and 4-wire RS-485. It is especially
suited for mobile, instrumentation and point-of-sale (POS) applications.
Manufacturer link: http://www.moxa.com/product/UPort_1130.htm
http://www.moxa.com/product/UPort_1130.htm

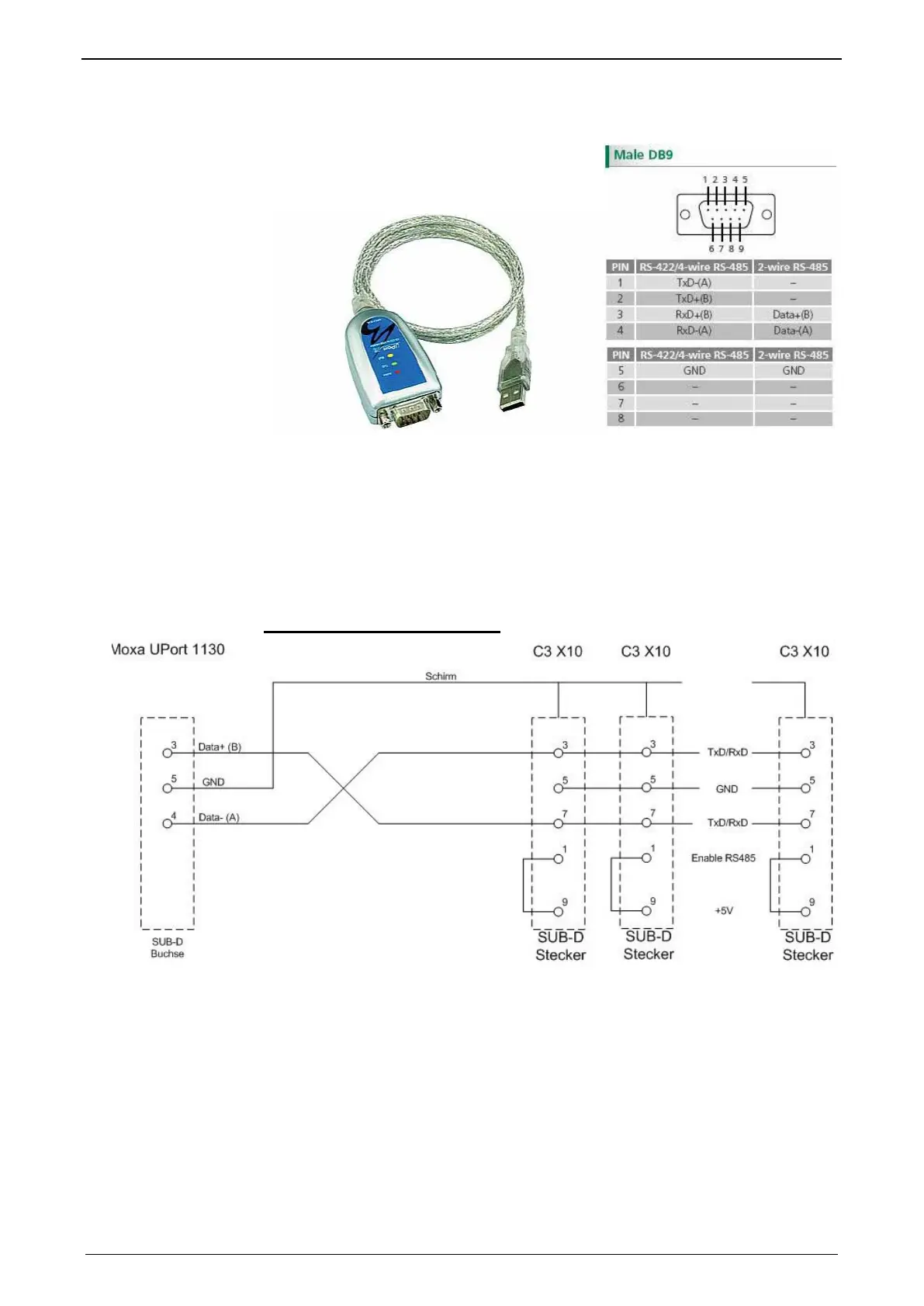

Connection plan for Compax3S:

Parker Compax3 I10T10 Specifications

General

Rated Current	10 A
Protection Class	IP20
Supply Voltage	200-480 VAC
Control Interface	EtherCAT, CANopen
Feedback Options	Resolver
