Parker EME

Compax3 Accessories

192-120100 N16 C3I10T10 - December 2010

177

9.2.1.6 Mains filter NFI03/02

for PSUP10D6

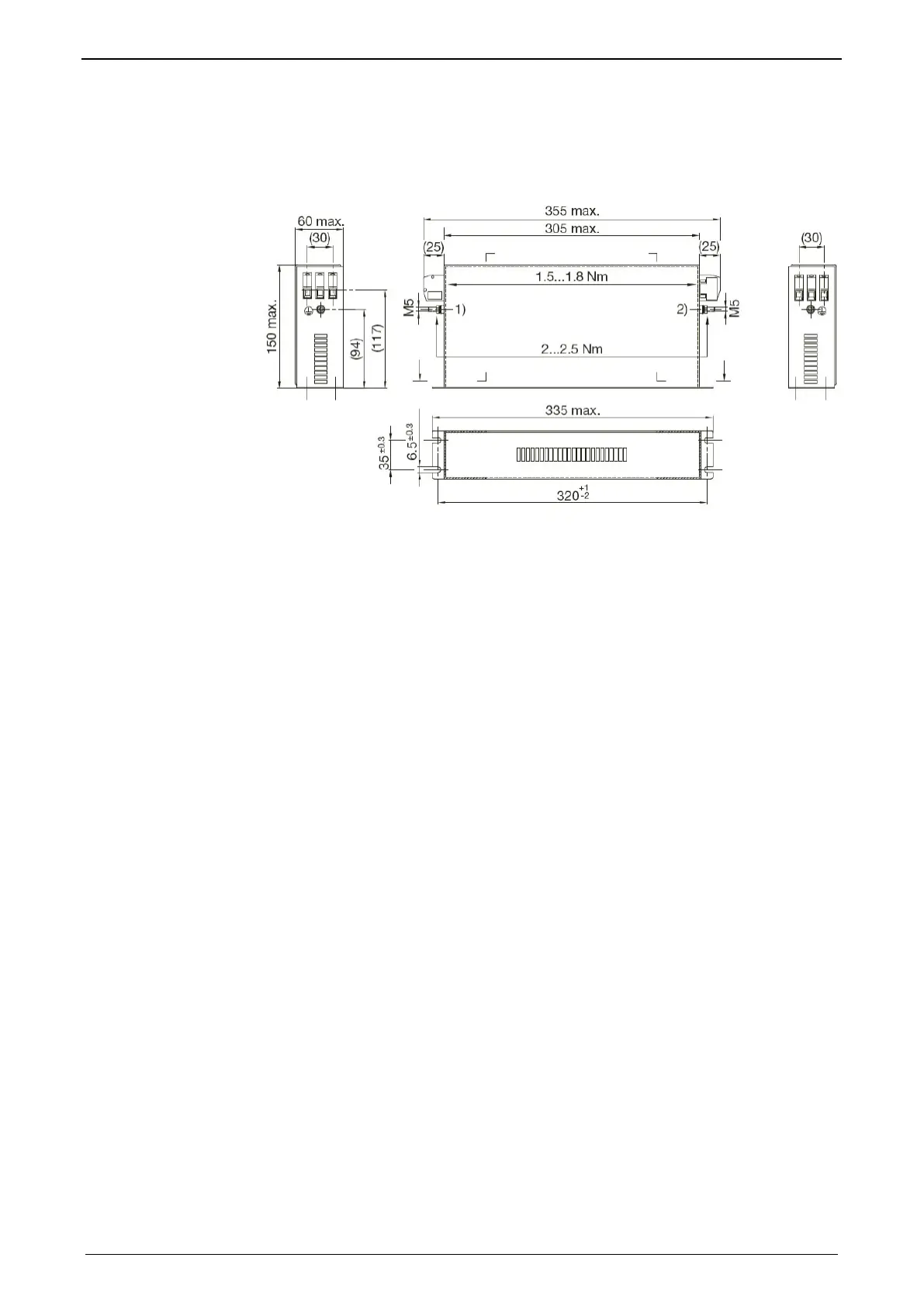

Dimensional drawing:
