9.4.2.4 Ballast resistor BRM4/0x and BRM10/02

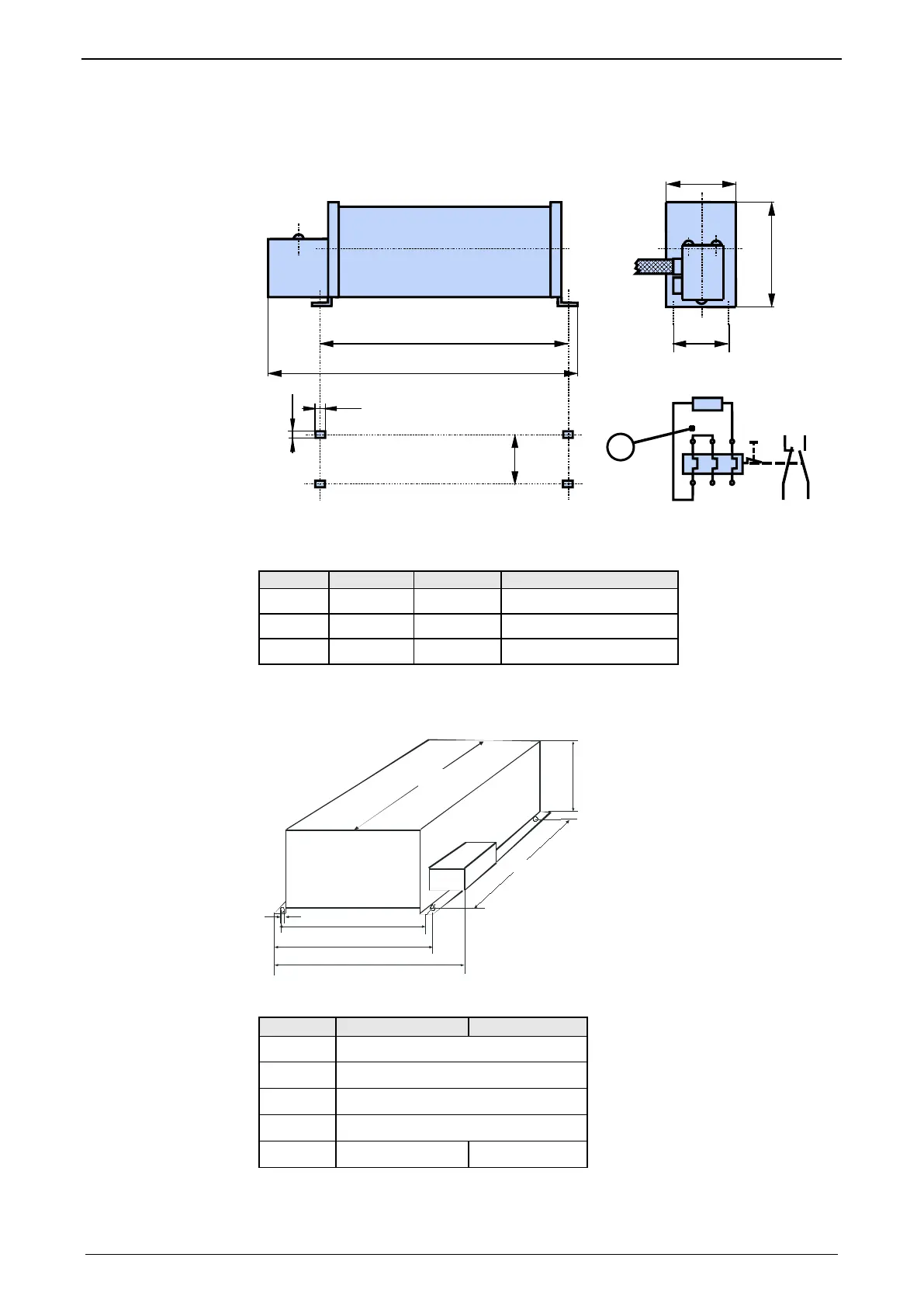

Dimensional drawing:
95 97
96
98
A
B
C
120
6,5
C
92
12
1
1: thermal overcurrent relay
Dimensions in mm:
Size:
BRM4/01
BRM4/02
BRM4/03 & BRM10/02
A 250 300 540
B 330 380 620
C 64 64 64
9.4.2.5 Braking resistor BRM11/01 & BRM12/01
Dimensional drawing:
H
490
380
Ø10,5
B2
B1
B
Dimensions in mm:
BRM11/01 BRM12/02
B
330
B1
295
B2
270
H
260
Weight
6.0 7.0
