Parker Compax3 I10T10 User Manual

Compax3 Accessories
C3I10T10
180
192-120100 N16 C3I10T10 - December 2010
9.2.3. Mains filters
Mains filter for PSUP30
In this chapter you can read about:
..................................................................................................180
Mains filters serve for reducing the low-frequency interferences on the mains side.
9.2.3.1 Mains filter for PSUP30
Required mains filter for the PSUP30: 0.45 mH / 55 A
We offer the following mains filters:
 LCG-0055-0.45 mH (WxDxH: 180 mm x 140 mm x 157 mm; 10 kg)
 LCG-0055-0.45 mH-UL (with UL approval) (WxDxH: 180 mm x 170 mm x
157 mm; 15 kg)

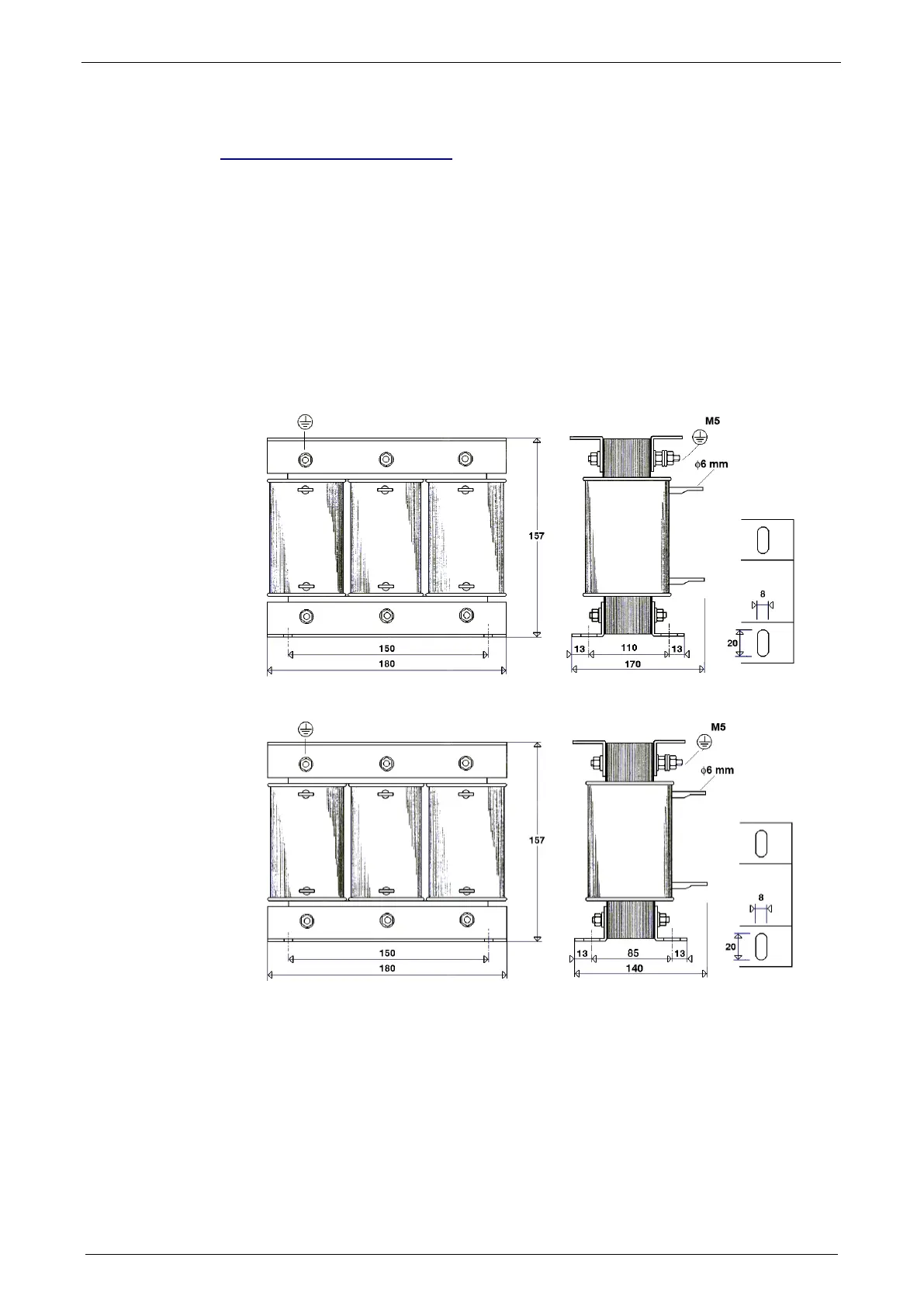

Dimensional drawing: LCG-0055-0.45 mH
Dimensional drawing: LCG-0055-0.45 mH-UL

Parker Compax3 I10T10 Specifications

General

Rated Current	10 A
Protection Class	IP20
Supply Voltage	200-480 VAC
Control Interface	EtherCAT, CANopen
Feedback Options	Resolver
