3.7.2. Communication Compax3M
PC - PSUP (Mains module)
In this chapter you can read about:
............................................................................................. 60
Communication in the axis combination (connector X30, X31) ........................................ 60
Adjusting the basic address ............................................................................................ 61
Setting the axis function .................................................................................................. 61
3.7.2.1 PC - PSUP (Mains module)
Connector X3
USB2.0
Connect your PC to the USB sleeve X3 of the mains module via an USB cable
(SSK33/03).

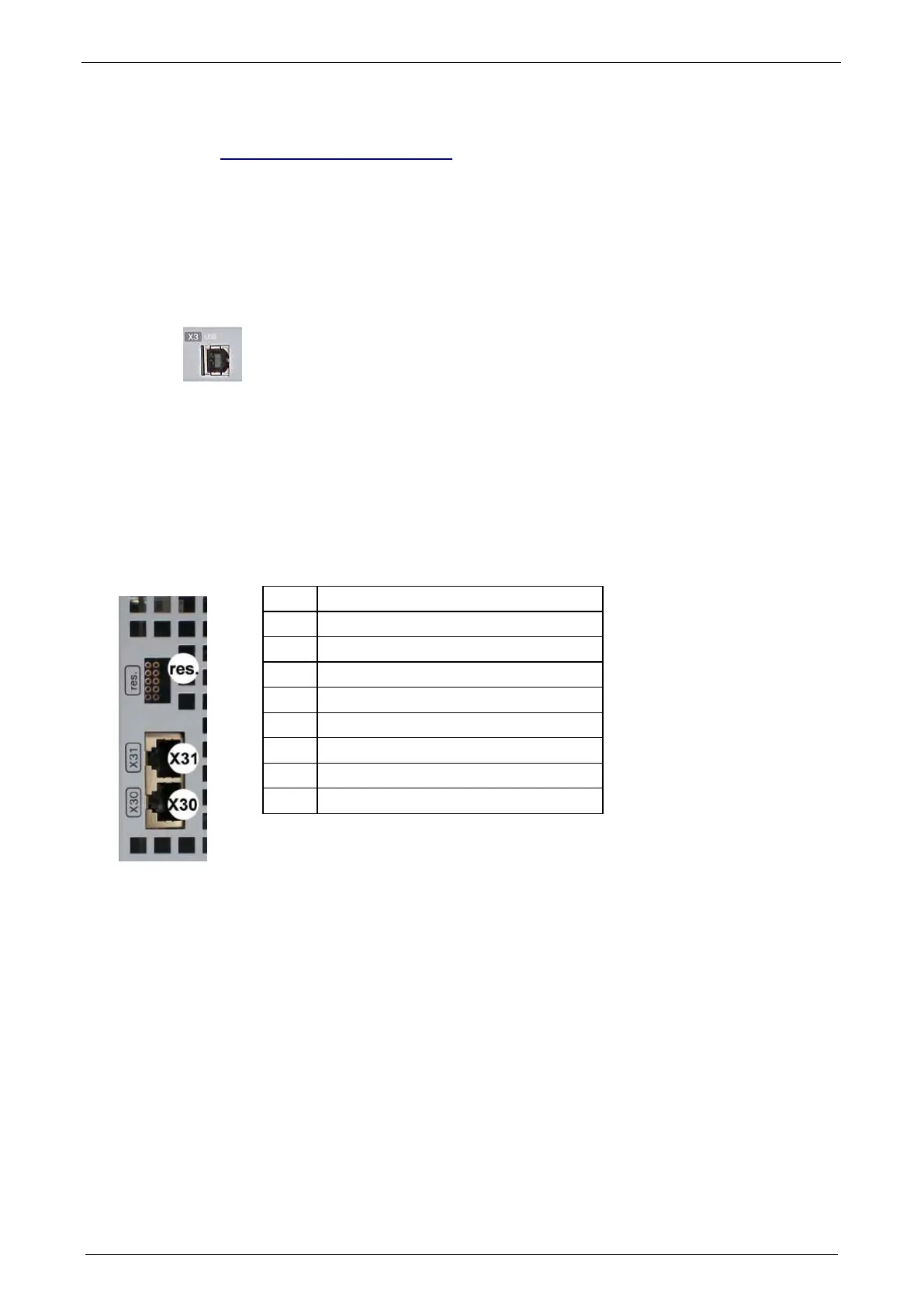

3.7.2.2 Communication in the axis combination (connector
X30, X31)
The communication in the axis combination is implemented via a SSK28 cable and
double RJ45 sleeves on the device top.
Beginning with the PSUP (mains module) the connection is always made from X30
to X31 of the next device. On the first device (X31) and the last device (X30) in the
multi-axis combination, a bus termination plug (BUS07/01) is required.
Orientation to the back
side
Orientation to the front
plate
PSUP (Mains module)
X30 out
X31 in
res. factory use
Compax3M (axis)
X30 out
X31 in
res. factory use

Parker Compax3 I10T10 Specifications

General

Rated Current	10 A
Protection Class	IP20
Supply Voltage	200-480 VAC
Control Interface	EtherCAT, CANopen
Feedback Options	Resolver
