Compax3 device description
192-120100 N16 C3I10T10 - December 2010
67
3.9 Installation and dimensions Compax3

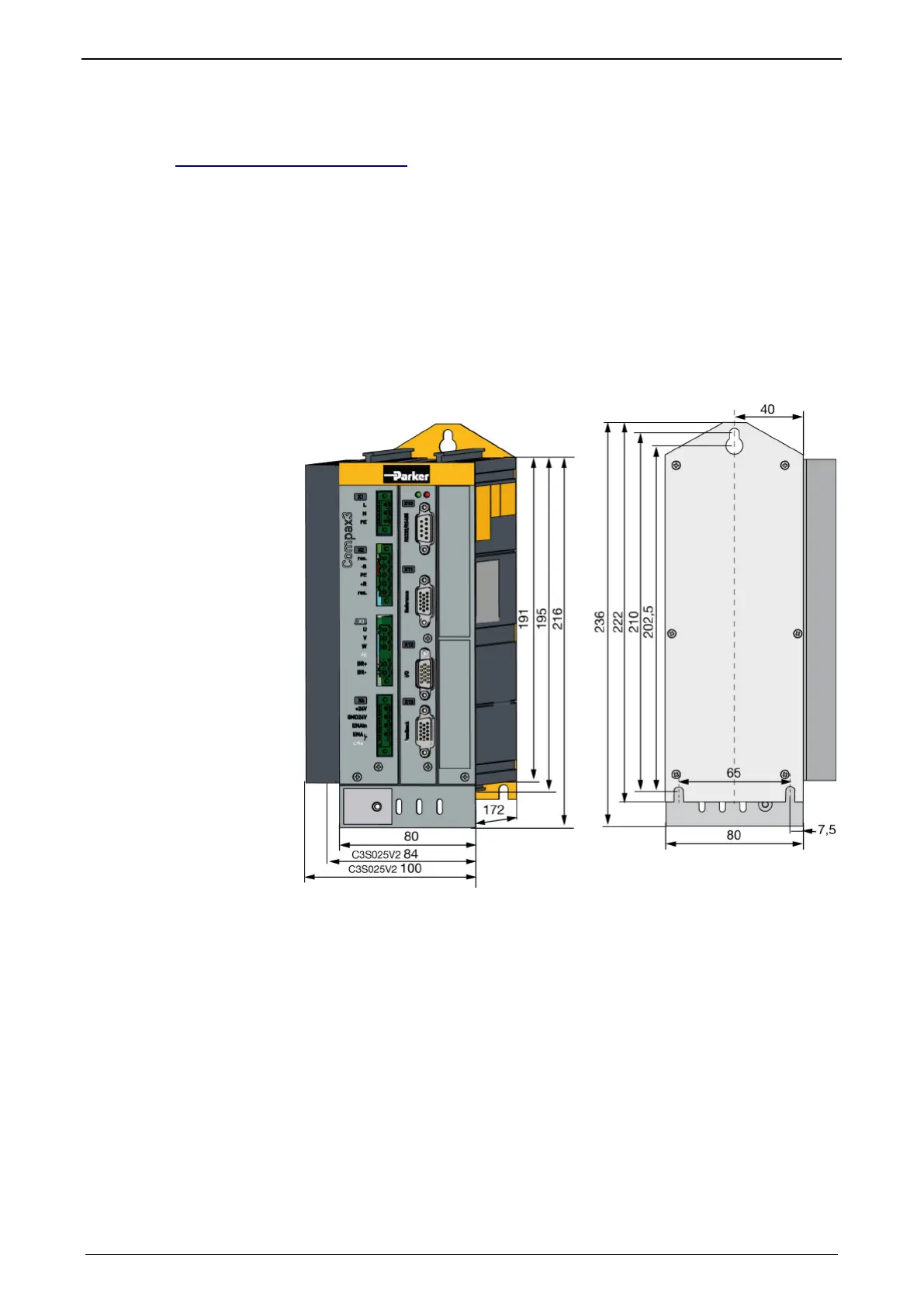

Mounting and dimensions Compax3S
In this chapter you can read about:
.............................................................................. 67
Mounting and dimensions PSUP/C3M ............................................................................. 71
Mounting and dimensions C3H ........................................................................................ 73
3.9.1. Mounting and dimensions Compax3S
3.9.1.1 Mounting and dimensions Compax3S0xxV2
Mounting:
3 socket head screws M5
Stated in mm
Please respect an appropriate mounting gap in order to ensure sufficient
convection:
 At the side: 15mm
 At the top and below: at least 100mm

Parker Compax3 I10T10 Specifications

General

Rated Current	10 A
Protection Class	IP20
Supply Voltage	200-480 VAC
Control Interface	EtherCAT, CANopen
Feedback Options	Resolver
