Parker Compax3 I10T10 - Mounting and Dimensions Compax3 S150 V2 and S150 V4

To Next Page

To Previous Page

Parker EME

Compax3 device description

192-120100 N16 C3I10T10 - December 2010

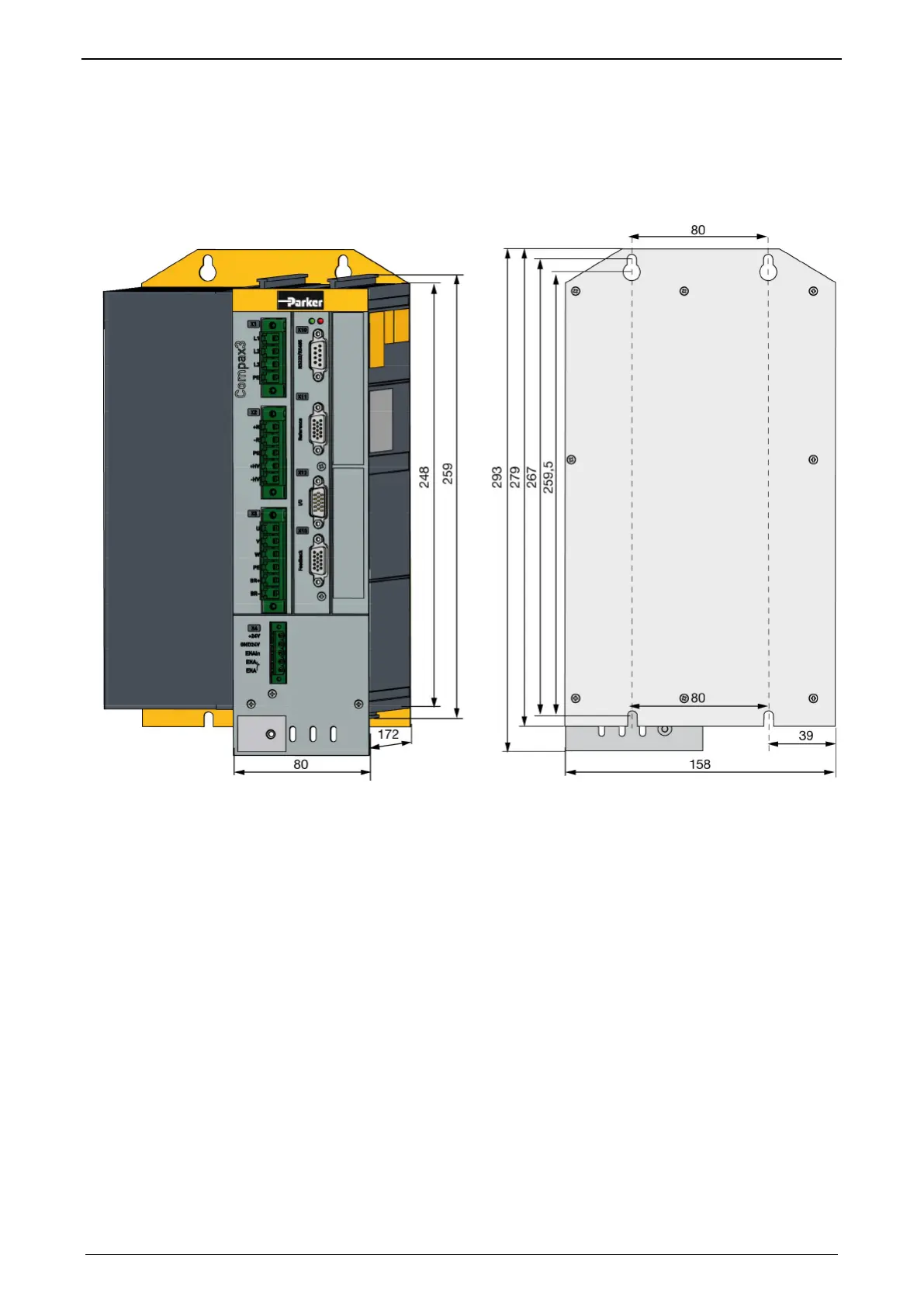

3.9.1.3 Mounting and dimensions Compax3S150V2 and

S150V4

Mounting:

4 socket head screws M5

Stated in mm

Please respect an appropriate mounting gap in order to ensure sufficient

convection:

 At the side: 15mm

 At the top and below: at least 100mm
