Parker EME
Compax3 device description
192-120100 N16 C3I10T10 - December 2010

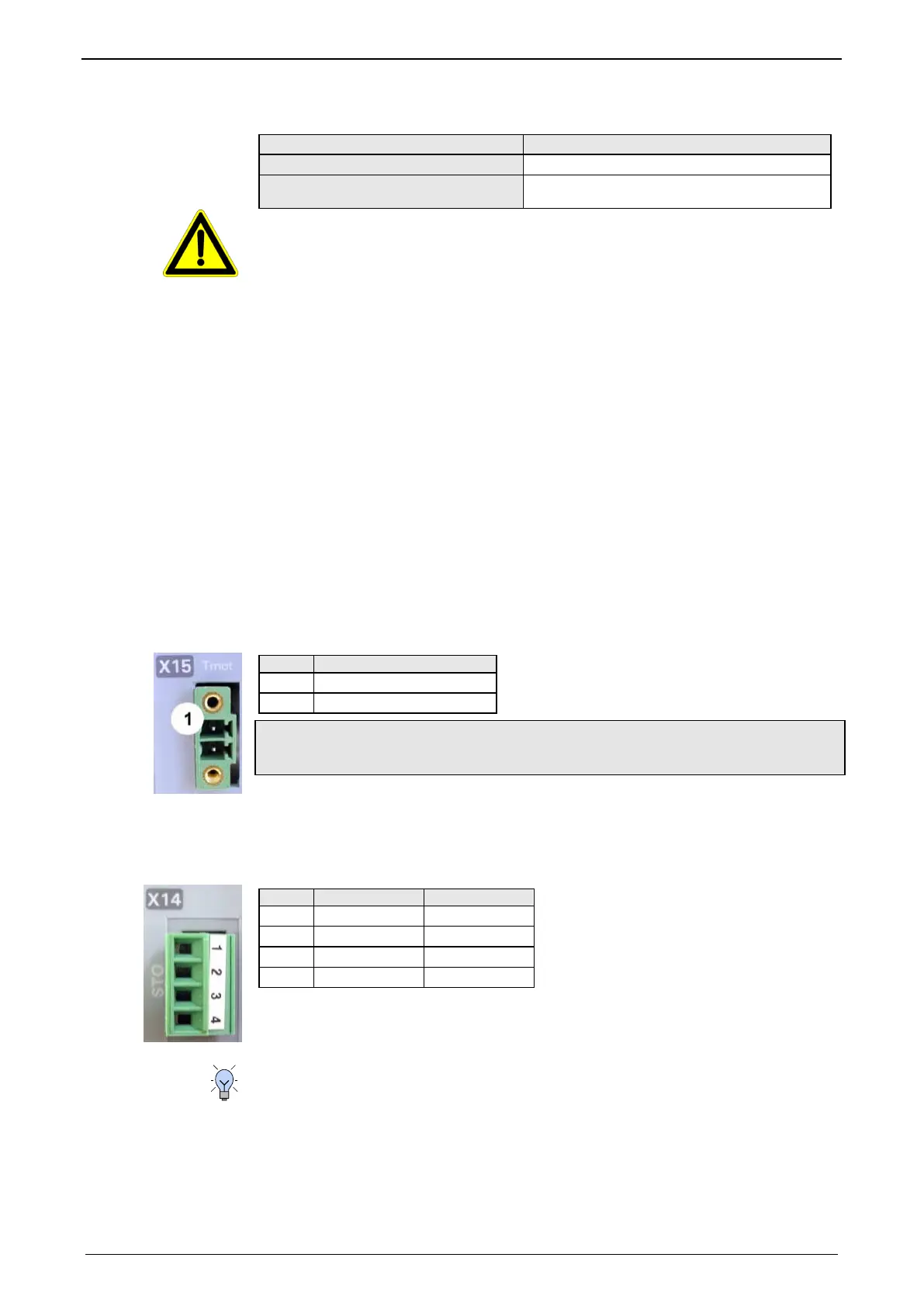

Motor holding brake output
Motor holding brake output Compax3
Voltage range
21 – 27VDC
Maximum output current (short circuit
proof)
1.6A
Attention - Please wire the motor holding brake!
Connect the brake only on motors which have a holding
brake! Otherwise make no brake connections at all.
Requirements cables for motor holding brake
If a motor holding brake is present, one cable of the
motor holding brake must be fed on the device side
through the toroidal core ferrite provided as accessory
ZBH0x/xx (63Ω @1MHz, di=5.1mm), in order to ensure
error-free switching on and off of the motor holding
brake.
3.5.7.1 Measurement of the motor temperature of Compax3M
(axis controller)
Connector X15
The acquisition of the motor temperature by the axis controller can either take
place via the connection of X15 (Tmot) or via the feedback cable and the
corresponding connection on X13 PIN10.
1 +5V
2 Sensor
The temperature acquisition on X15 Tmot can not be connected at the same
time as X13 Pin 10.
3.5.8. Safety technology option for Compax3M (axis controller)
Connector X14
1 STO1/ +24VDC
2 STO-GND GND
3 STO2/ +24VDC
4 STO-GND GND
Note!
If the Compax3M axis controller features a safety option, these connections must
also be wired, otherwise it is not possible to set up the axis.
