Parker EME
Communication
192-120100 N16 C3I10T10 - December 2010
151
1ON 2ON 3off 4off (Mode: RS485 by ART (2 wire without Echo)
DIP Switch settings NetCom 113 for two-wire operation:
Communication settings C3S/C3M:
Object
Function
Value
810.1 Protocol 16 (two wire)
810.2
Baud rate
115200
810.3 NodeAddress 1..254
810.4 Multicast Address

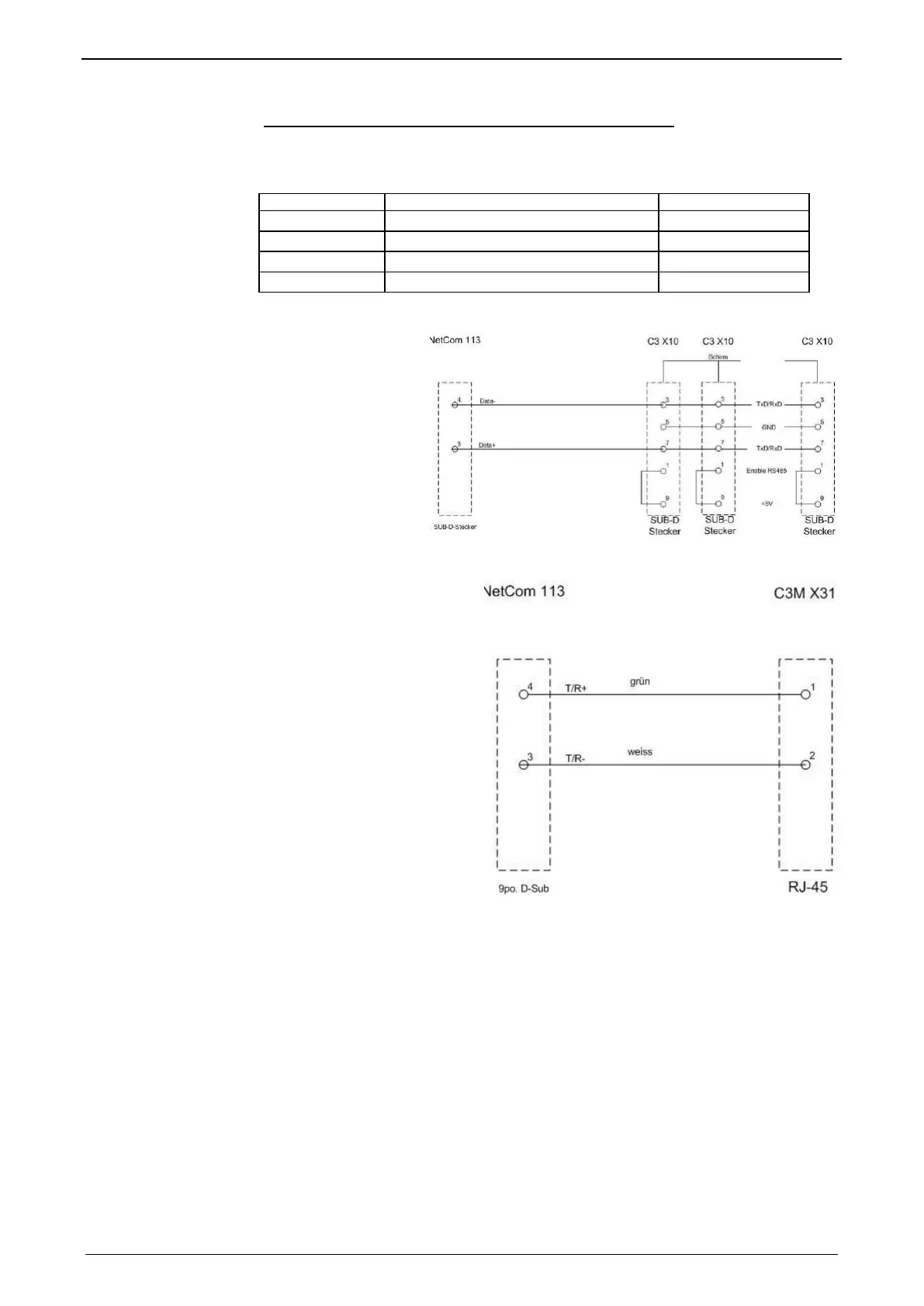

Connection plan NetCom113 <-> C3S :
Connection plan NetCom113 <-> C3M X31:
5.1.6. Modem MB-Connectline MDH 500 / MDH 504
With the modems MDH500 and MDH504 manufactured by MB-Connectline, you
can establish an independent connection. A virtual COM port is generated and the
communication with the PC as well as the Compax3 takes place via RS232 or
RS485.
It is not necessary to make any modem settings on the Compax3.
