Compax3 Accessories
192-120100 N16 C3I10T10 - December 2010
195

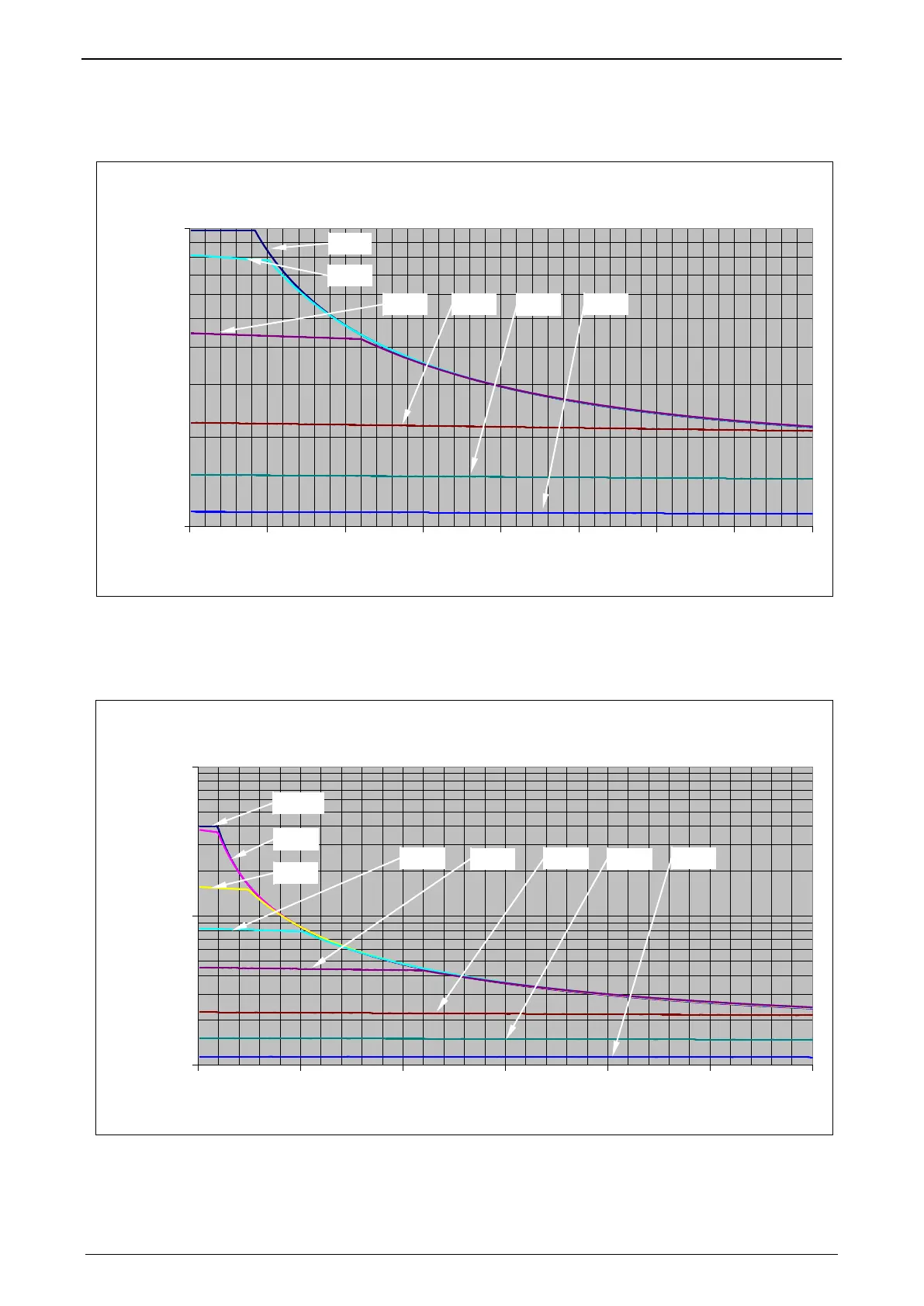

9.4.1.12 Permissible braking pulse power: BRM04/02 with
C3S150V2
BRM04/02 (230V)
1000
10000
0 0,5 1 1,5 2 2,5 3 3,5 4
Braking time [s]
PBdyn [W]
9.4.1.13 Permissible braking pulse power: BRM04/02 with
C3S300V4
BRM04/02 (400V)
1000
10000
100000
0 0,5 1 1,5 2 2,5 3
Braking time [s]
PBdyn [W]
F=20
F=10
F=5
F=2
F=1
F=0.5
F=100
F=50
F=20
F=10
F=5
F=2
F=1
F=0.5

Parker Compax3 I10T10 Specifications

General

Rated Current	10 A
Protection Class	IP20
Supply Voltage	200-480 VAC
Control Interface	EtherCAT, CANopen
Feedback Options	Resolver
