Compax3 device description
C3I10T10
192-120100 N16 C3I10T10 - December 2010
Mains connection Compax3S1xxV2 3AC
Three phase 3* 230VAC/240VAC
80-253VAC / 50-60Hz
10Arms 13Arms
Maximum fuse rating per device
(=short circuit rating)
16A 20A
MCB miniature circuit breaker, K characteristic
* for UL conform operation (see on page 20), a miniature circuit breaker, K
characteristic, Type S203 is to be used.
The 3AC V2 devices must only be operated with three phases!
Caution - Risk of Electric Shock!
Always switch devices off before wiring them!
Dangerous voltages are still present until 10 min. after switching off the power
supply.

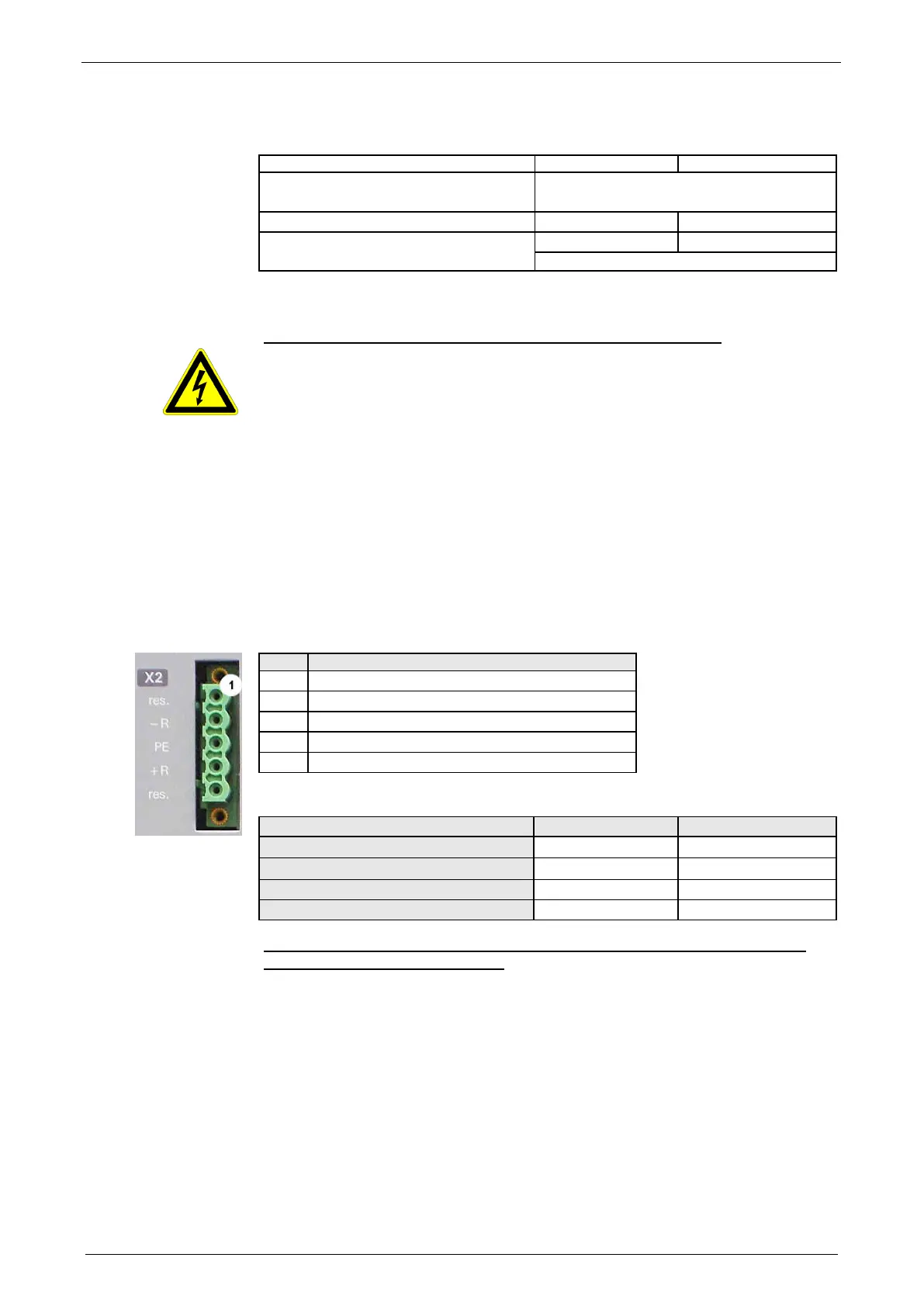

3.3.5.2 Braking resistor / high voltage DC C3S connector X2
The energy generated during braking operation is absorbed by the Compax3
storage capacity.
If this capacity is too small, the braking energy must be drained via a braking
resistor.
Braking resistor / high voltage supply plug X2 for 1AC
230VAC/240VAC devices
1 factory use
2 - braking resistor (not short-circuit protected!)
3 PE
4 + braking resistor (not short-circuit protected!)
5 factory use
Braking operation Compax3S0xxV2 1AC
Capacitance / storable energy
560µF / 15Ws 1120µF / 30Ws
Minimum braking- resistance
100Ω 56Ω
Recommended nominal power rating
20 ... 60W 60 ... 180W
Maximum continuous current
8A 15A
The power voltage DC of two Compax3 1AC V2 devices (230VAC/240VAC
devices) must not be connected.
