Parker EME
Compax3 device description
192-120100 N16 C3I10T10 - December 2010
35

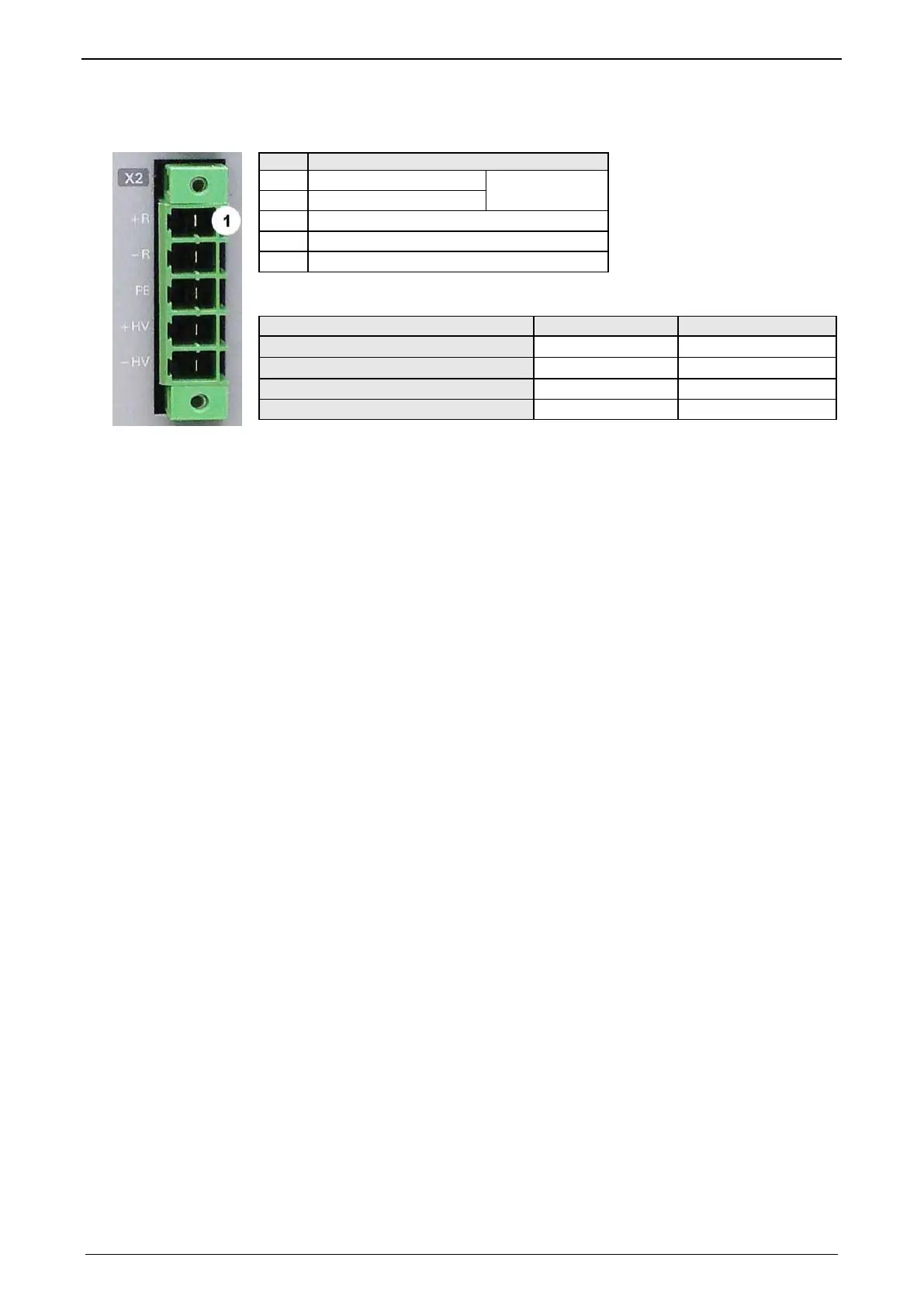

Braking resistor / high voltage supply plug X2 for 3AC
230VAC/240VAC devices
PIN
Description
1 + Braking resistor no short-circuit
protection!
2 - Braking resistor
3 PE
4
+ DC high voltage supply
5 - DC high voltage supply
Braking operation Compax3S1xxV2 3AC
Controller type
S100V2
S150V2
Capacitance / storable energy
780µF / 21Ws 1170µF / 31Ws
Minimum braking- resistance
22Ω 15Ω
Recommended nominal power rating
60 ... 450W 60 ... 600W
Maximum continuous current
20A 20A
Connection of a braking resistor
Minimum line cross section: 1.5mm
2
Maximum line length: 2m
Maximum output voltage: 400VDC
