3.3 Connections of Compax3S
Compax3S connectors
In this chapter you can read about:
.................................................................................................... 28
Connector and pin assignment C3S................................................................................. 29
Control voltage 24VDC / enable connector X4 C3S ......................................................... 31
Motor / Motor brake (C3S connector X3) ......................................................................... 32
Compax3Sxxx V2 ............................................................................................................ 33
Compax3Sxxx V4 ............................................................................................................ 36

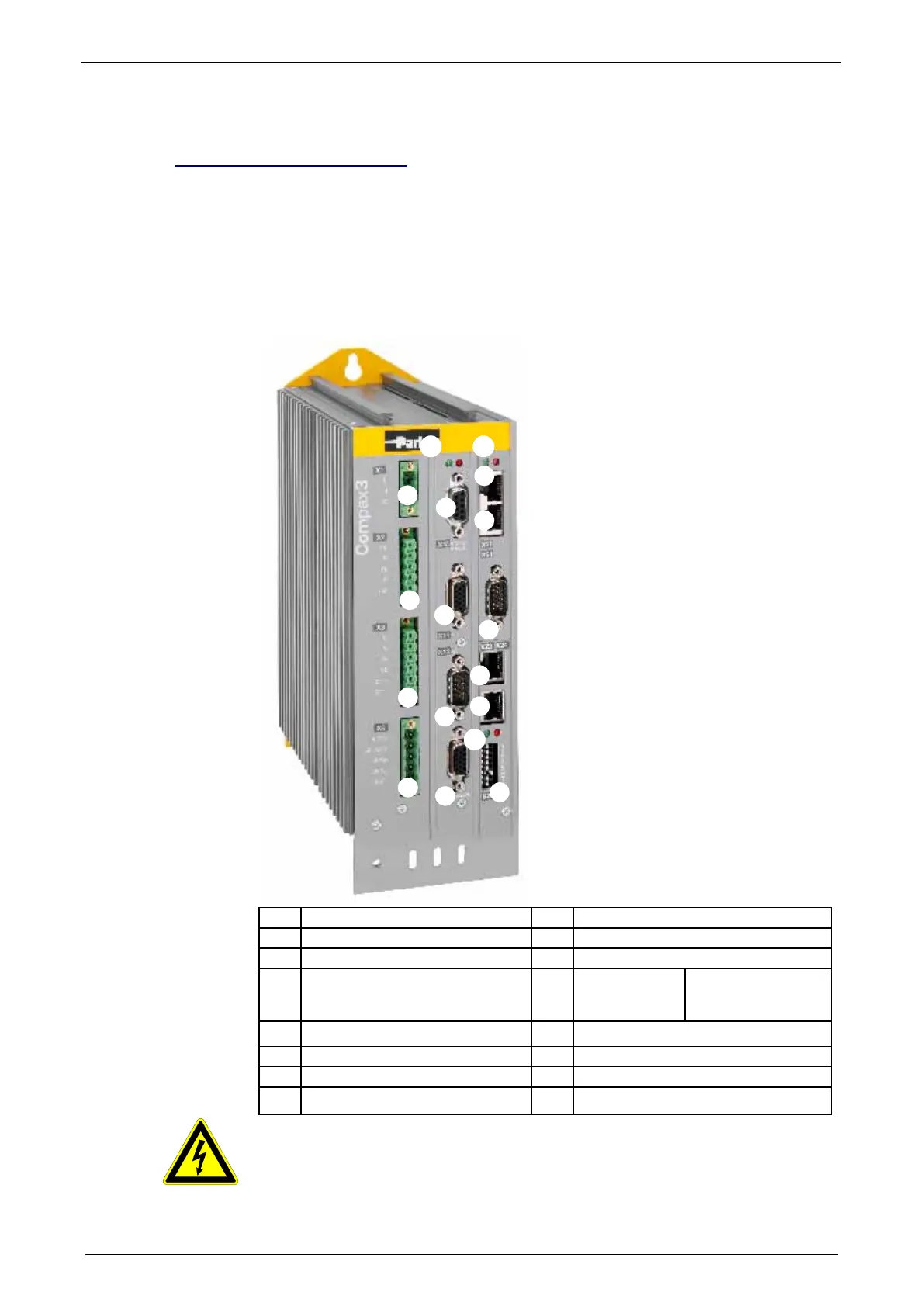

3.3.1. Compax3S connectors
X4
X10
X20
X21
X22
X24
X23
S24
X12
X13
X11
X3
X2
X1
LED3
LED2
LED1
X1
AC Supply
X20
HEDA in (Option)
X2
Ballast / DC power voltage
X21
HEDA out (Option)
X3
Motor / Brake
X22
Inputs Outputs (Option M10/12)
X4
24VDC / Enable
X23/
X24
Bus (Option) Connector type
depends on the bus
system!
X10
RS232/RS485
S24
bus settings
X11
Analog/Encoder
LED1
Device status LEDs
X12
Inputs/Outputs
LED2
HEDA LEDs
X13
Motor position feedback
LED3
Bus LEDs
Caution - Risk of Electric Shock!
Always switch devices off before wiring them!
Dangerous voltages are still present until 10 min. after switching off the power
supply.

Parker Compax3 I10T10 Specifications

General

Rated Current	10 A
Protection Class	IP20
Supply Voltage	200-480 VAC
Control Interface	EtherCAT, CANopen
Feedback Options	Resolver
