Parker EME
Compax3 Accessories
192-120100 N16 C3I10T10 - December 2010
185

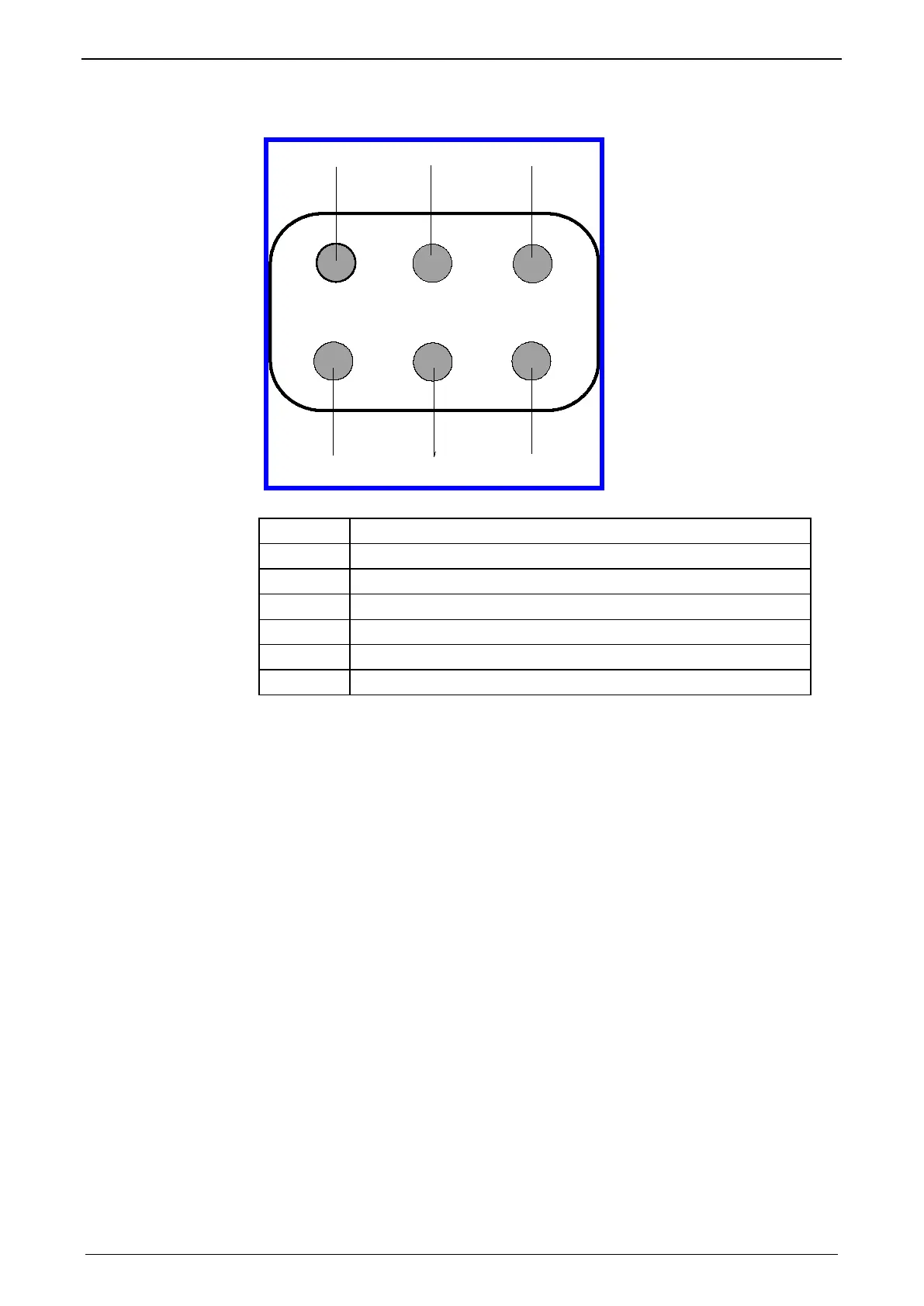

9.3.4.1 Connection of terminal box MH145 & MH205
A
BC
G
EF
Terminal Assignment
A Phase U
B Phase V
C Phase W
E Protective earth terminal
F Brake (+ red for MH205)
G Brake (- blue for MH205)
Additional designations can be found on the connection cable clamping board -
motor (internal).
