Compax3 device description
C3I10T10
72
192-120100 N16 C3I10T10 - December 2010

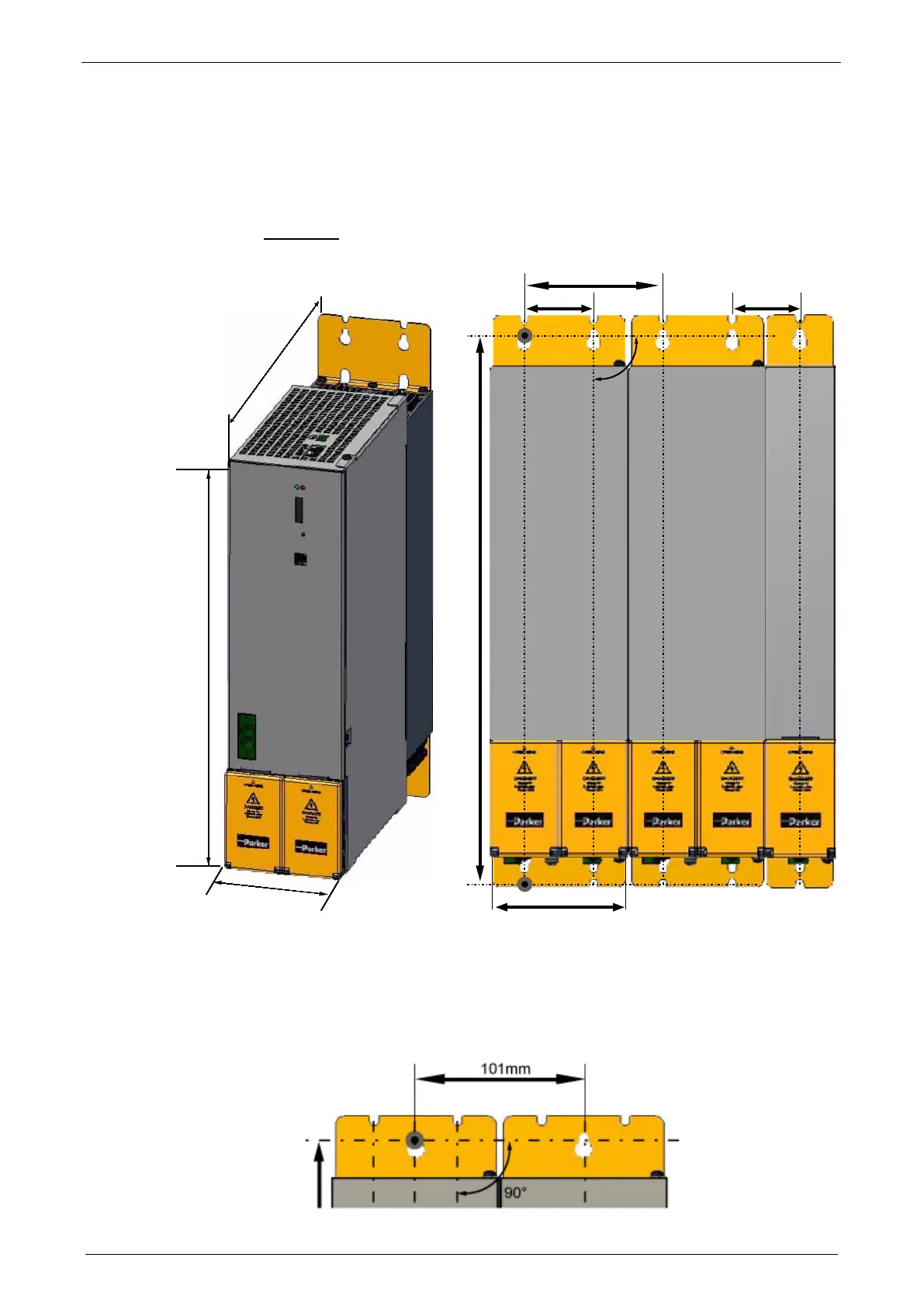

3.9.2.2 Mounting and dimensions
PSUP20/PSUP30/C3M300D6
Information on
PSUP20/PSUP30/C3M300D6
4 socket head screws M5
Mounting:
100mm
360mm
263mm
96mm
400mm
90°
50,5mm 50,5mm
101mm
Tolerances: DIN ISO 2768-f
3.9.2.3 With upper mounting, the housing design may be
different
Mounting:
3 socket head screws M5
