Compax3 with analogue and step/direction input
C3I10T10
192-120100 N16 C3I10T10 - December 2010
The complete modular structure of the Compax3 optimizes the integration of
intelligent servo-drives for various applications efficiently. With its analogue
interface or alternatively with step/direction or encoder step signals, the Compax3
I10 gives you easy and reasonably priced access to the world of servo-drive
technology. With its simple, standardized setpoint interface, the Compax3 I10 is
particularly suitable if you want to migrate to servo-drive systems for technical
reasons. Irrelevant of whether you have a PLC or PC central control unit, this
remains unchanged. The Compax3 I10 represents an ideal way of migrating from
analog +/- 10V drives to digital, intelligent servo-drives.
High-performance control technology and openness for various sender systems
are fundamental requirements for a fast and high-quality automation of movement.
The structure and size of the device are of considerable importance. High-quality
electronics are a fundamental requirement for the particularly small and compact
form of the Compax3 devices. All connectors are located on the front of the
Compax3S.
Partly integrated mains filters permit connection of motor cables up to a certain
length without requiring additional measures. EMC compatibility is within the limits
set by EN 61800-3, Class A. The Compax3 is CE-conform.
The intuitive user interface familiar from many applications, together with the
oscilloscope function, wizards and online help, simplifies making and modifying
settings via the PC.

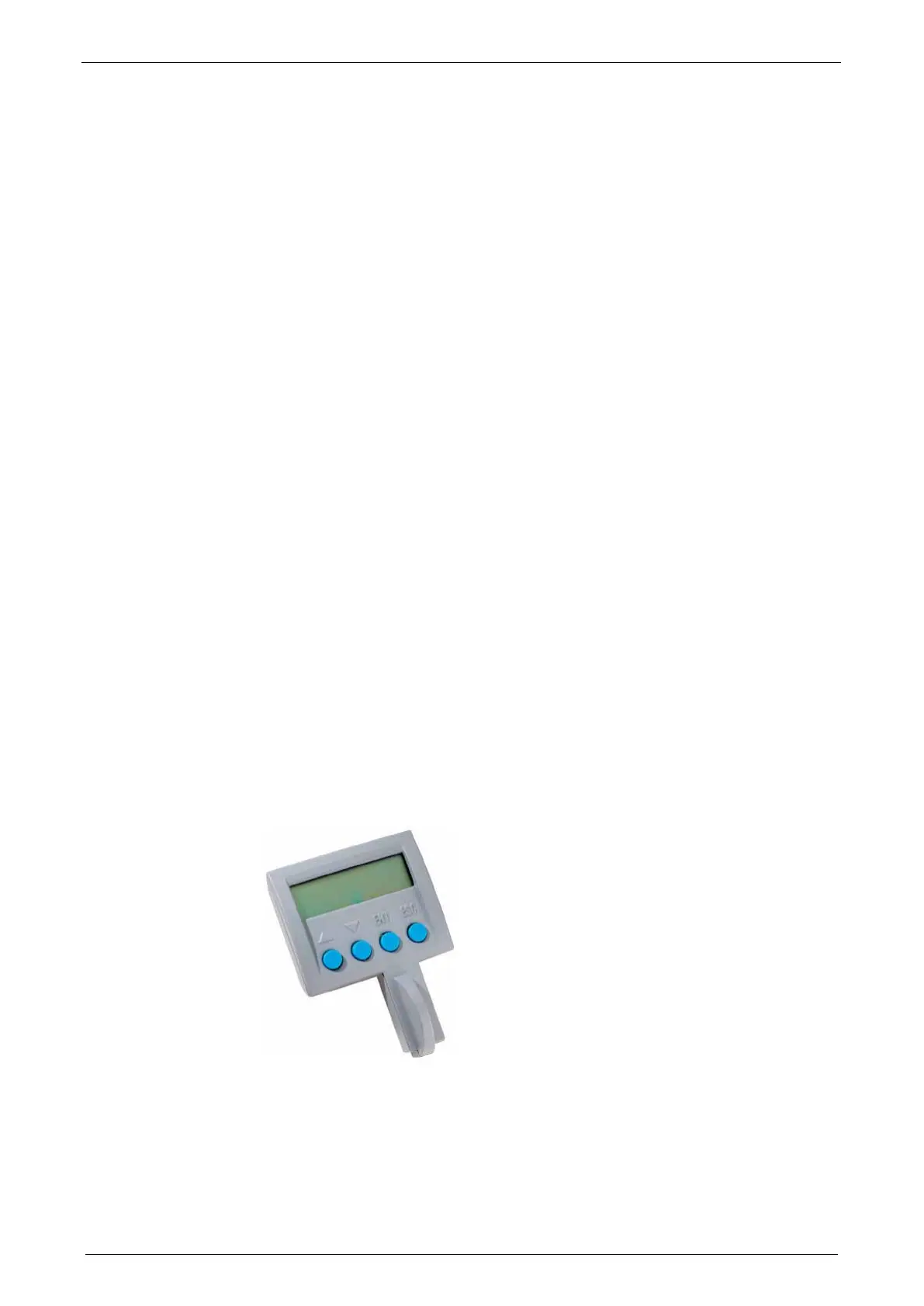

The optional Operator control module (BDM01/01) (see on page 202) for
Compax3S/F makes it possible to exchange devices quickly without requiring a
PC.
