9.2.1.3 Mains filter for NFI01/03
for Compax3 S300

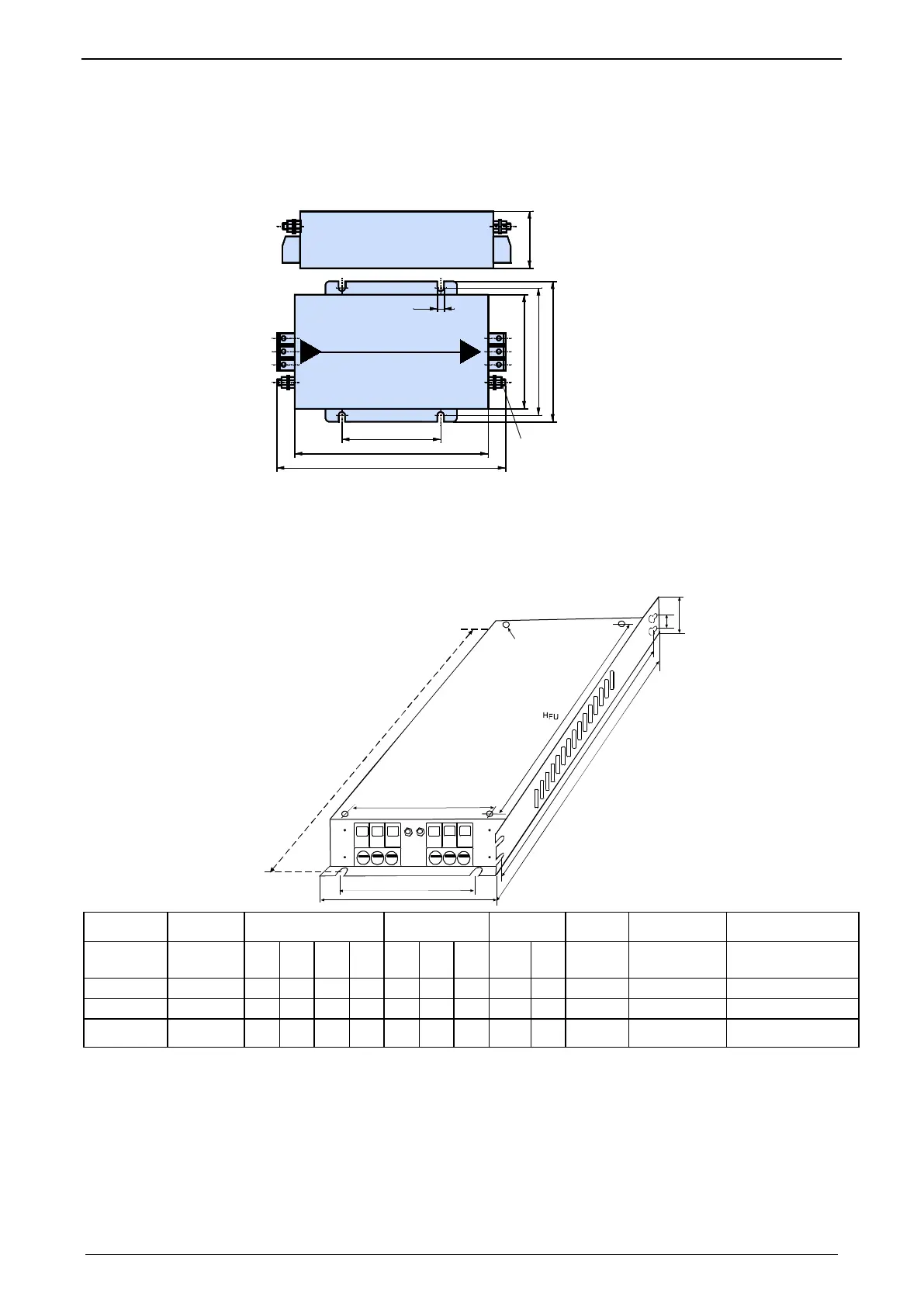

Dimensional drawing:
6,6
240
217
115±0,3
159
145
±
0,5
129
64
Ø 4
L
I
N
E
L
O
A
D
9.2.1.4 Mains filter NFI02/0x
Filter for mounting below theCompax3 Hxxx V4 housing
Dimensional drawing:
B1
B
M6
T1
T
B
FU
H2
H1
H1
Stated in mm
Filter type
Dimensions
Hole distances
Distances
Weight
Grounding
clamp
Connection clamp
B H H2 T B1 H1 T1 BFU HF
U
kg
C3H050V4
NFI02/01 233 515 456 70 186 495 40 150 440 4.3 M6 16mm
2
C3H090V4
NFI02/02 249 715 649 95 210 695 40 150 630 8.5 M8 50mm
2
C3H1xxV4
NFI02/03 249 830 719 110 150 700 15.0 M10 95mm
2

Parker Compax3 I10T10 Specifications

General

Rated Current	10 A
Protection Class	IP20
Supply Voltage	200-480 VAC
Control Interface	EtherCAT, CANopen
Feedback Options	Resolver
