192-120100 N16 C3I10T10 - December 2010
9.4.2. Dimensions of the braking resistors
BRM8/01braking resistors
In this chapter you can read about:
..............................................................................................198
BRM5/01 braking resistor ...............................................................................................198
Braking resistor BRM5/02, BRM9/01 & BRM10/01 .........................................................198
Ballast resistor BRM4/0x and BRM10/02 .......................................................................199
Braking resistor BRM11/01 & BRM12/01 .......................................................................199
Ballast resistor BRM13/01 & BRM14/01 .........................................................................200
9.4.2.1 BRM8/01braking resistors

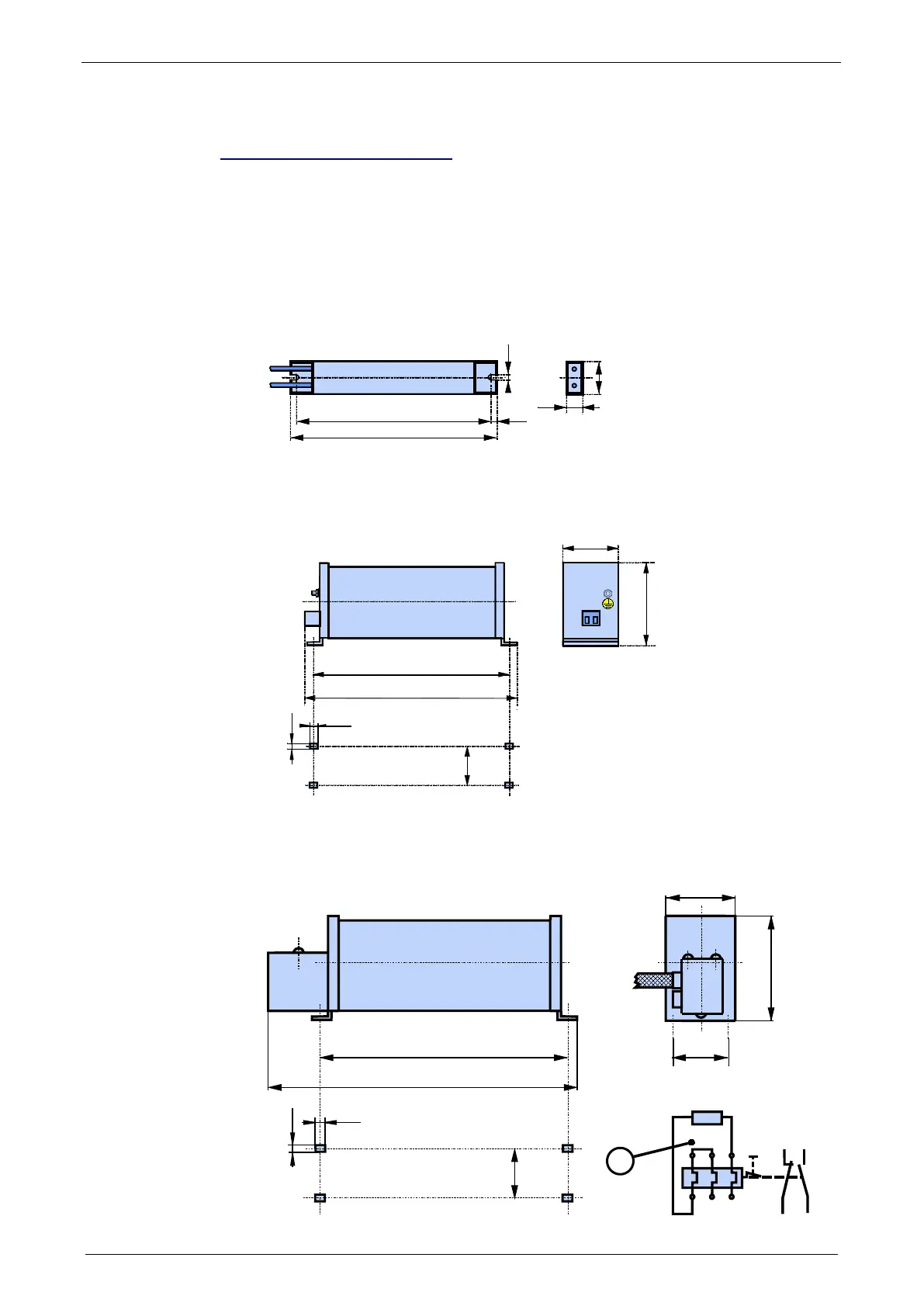

Dimensional drawing:
6
7,5
40
20
240
225
9.4.2.2 BRM5/01 braking resistor
Dimensional drawing:
222
245
101
6,5
48
73
12
9.4.2.3 Braking resistor BRM5/02, BRM9/01 & BRM10/01
Dimensional drawing:
95 97
96
98
250
330
64
120
6,5
64
92
12
1

Parker Compax3 I10T10 Specifications

General

Rated Current	10 A
Protection Class	IP20
Supply Voltage	200-480 VAC
Control Interface	EtherCAT, CANopen
Feedback Options	Resolver
