Compax3 Accessories
C3I10T10
178
192-120100 N16 C3I10T10 - December 2010
9.2.2. Motor output filter
Motor output filter MDR01/04
In this chapter you can read about:
.........................................................................................178
Motor output filter MDR01/01 .........................................................................................178
Motor output filter MDR01/02 .........................................................................................179
Wiring of the motor output filter ......................................................................................179
We offer motor output filters for disturbance suppression when the motor
connecting cables are long (>20m):
Order code for motor output filter (for Compax3S, Compx3M >20m motor cable)
/
up to 6,3 A rated motor current
MDR 0 1 / 0 4
Up to 16 A rated motor current
MDR 0 1 / 0 1
Up to 30A A rated motor current
MDR 0 1 / 0 2
Larger motor output filters are available on request!

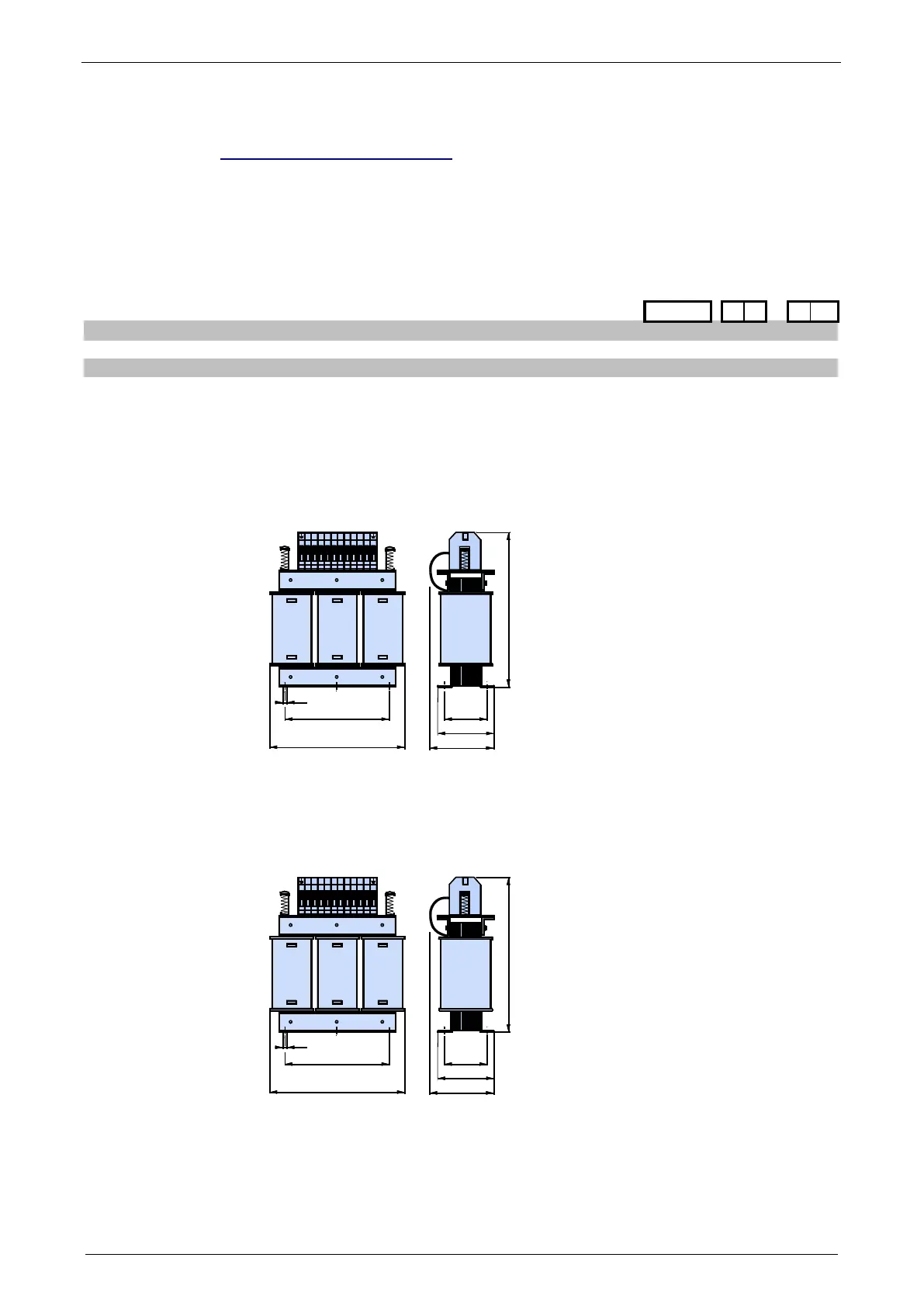

9.2.2.1 Motor output filter MDR01/04
up to 6.3A nominal motor current (3.6mH)
Dimensional drawing:
120
54
95
5
90
40
170
U1 V1 W1 + - U2 V2 W2 + -
9.2.2.2 Motor output filter MDR01/01
Up to 16 A nominal motor current (2mH)
Dimensional drawing:
150
67
95
6
113
50
195
U1 V1 W1 + - U2 V2 W2 + -
