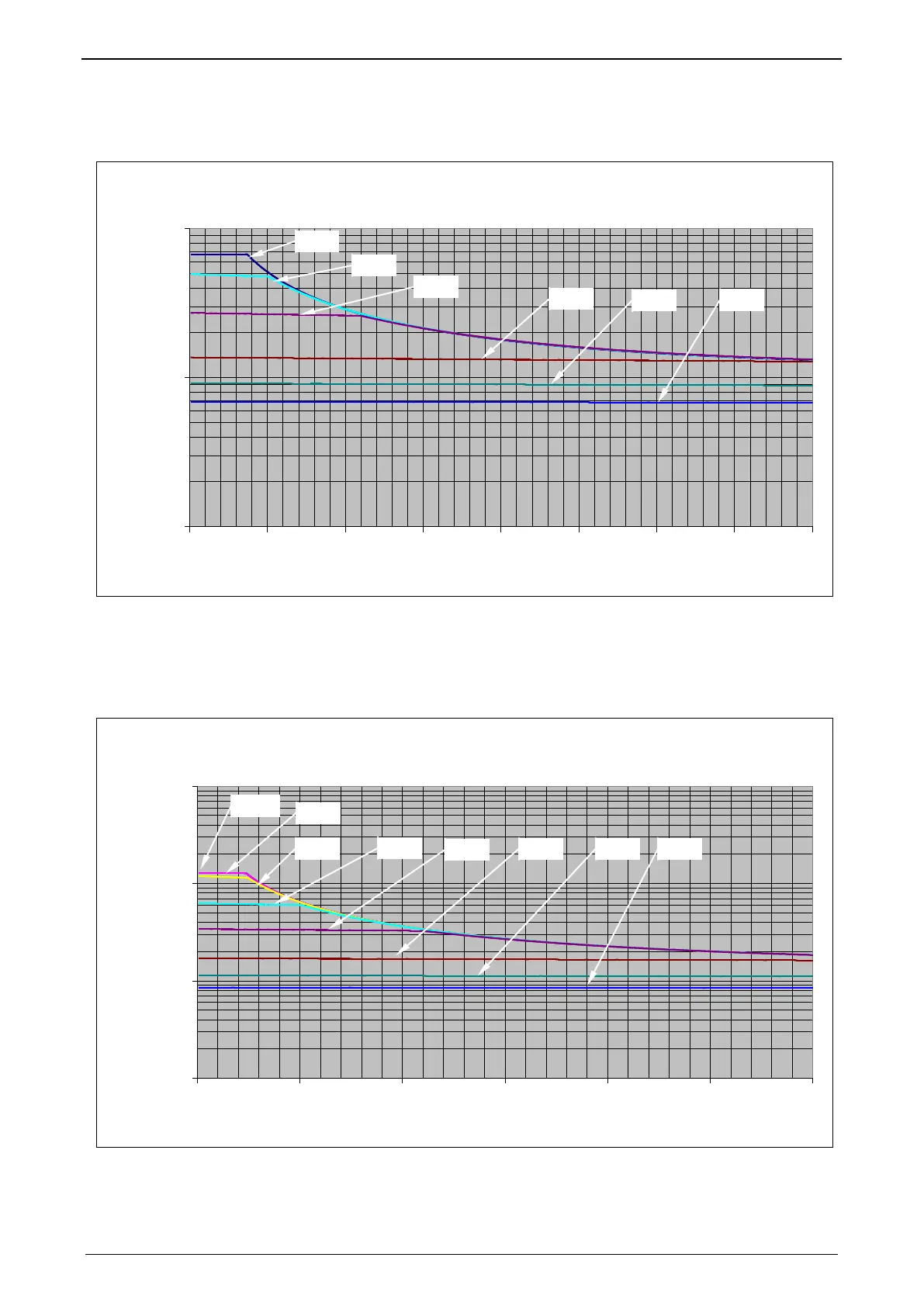

9.4.1.4 Permissible braking pulse power: BRM09/01 with
C3S100V2
BRM09/01 (230V_3AC)
100
1000
10000
0 0,5 1 1,5 2 2,5 3 3,5 4
Braking time [s]
PBdyn [W]
9.4.1.5 Permissible braking pulse power: BRM10/01 with
C3S150V4
BRM10/01 (400/480V)
100
1000
10000
100000
0 0,5 1 1,5 2 2,5 3
Braking time [s]
PBdyn [W]
F=10
F=20
F=5
F=2
F=1
F=0.5
F=10
F=5
F=2
F=1
F=0.5
F=100
F=50
F=20

Parker Compax3 I10T10 Specifications

General

Rated Current	10 A
Protection Class	IP20
Supply Voltage	200-480 VAC
Control Interface	EtherCAT, CANopen
Feedback Options	Resolver
