Compax3 device description
192-120100 N16 C3I10T10 - December 2010
29

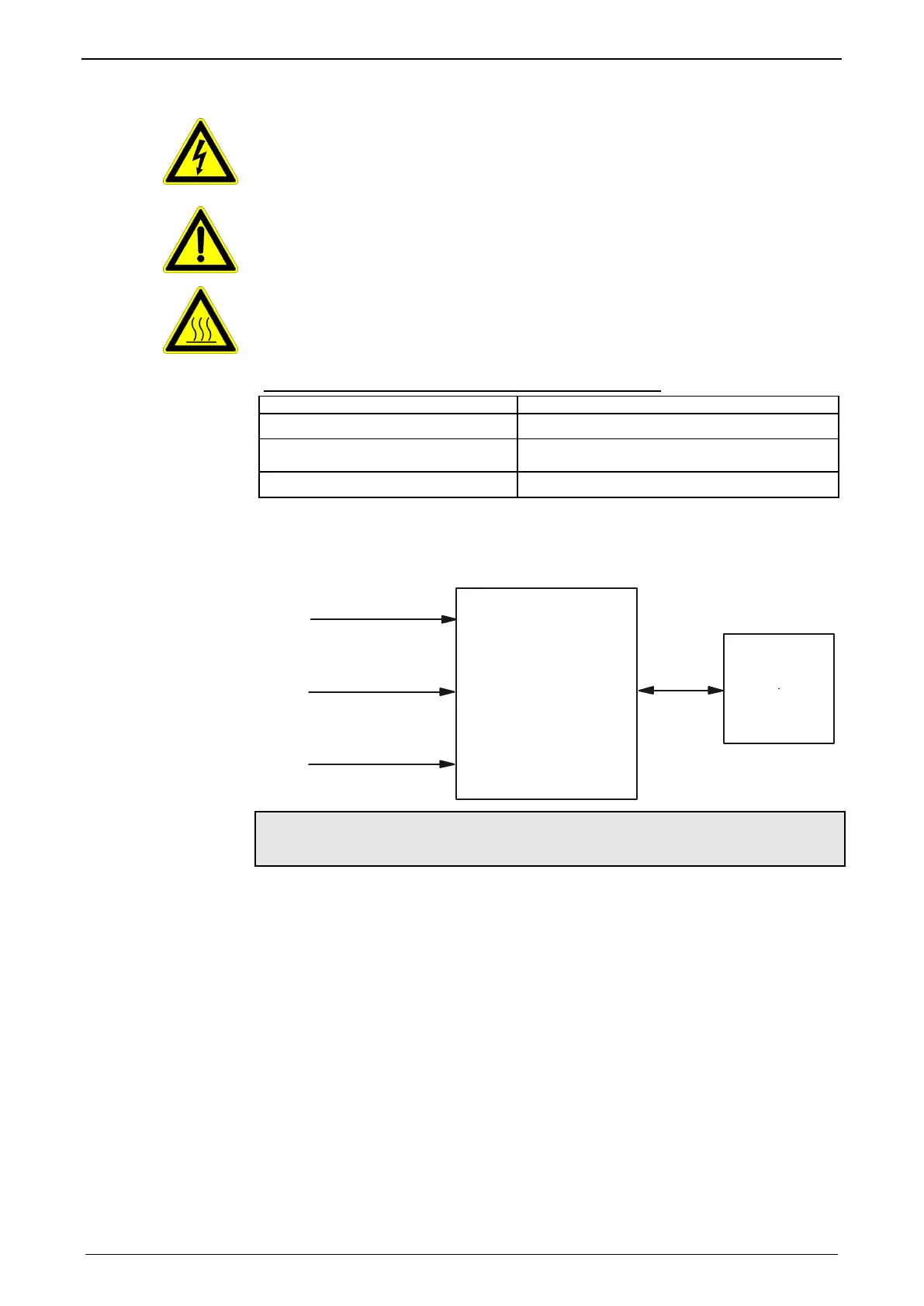

Caution!
When the control voltage is missing there is no indication whether or not high
voltage supply is available.
Attention - PE connection!
PE connection with 10mm
2
via a grounding screw at the bottom of the device.
Attention - hot surface!
The heat dissipator can reach very high temperatures (>70°C)
Compax3 device:
Line cross sections of the line connections X1, X2, X3
Cross-section: Minimum... Maximum[mm
2
]
S025V2, S063V2
0.25 ... 2.5 (AWG: 24 ... 12)
S100V2, S150V2
S015V4, S038V4, S075V4, S150V4
0.25 ... 4 (AWG: 24 ... 10)
S300V4
0.5 ... 6 (AWG: 20 ... 7)
3.3.2. Connector and pin assignment C3S
AC - Versorgung
AC - Supply
X1
X10
DC - Versorgung
DC - Supply
X4 (24VDC)
Freigabe 24VDC
Enable 24VDC
X4/3
RS232
SSK1
PC
Compax3
Further information on the assignment of the plug mounted at the particular
device can be found below!
Overview:

Parker Compax3 I10T10 Specifications

General

Rated Current	10 A
Protection Class	IP20
Supply Voltage	200-480 VAC
Control Interface	EtherCAT, CANopen
Feedback Options	Resolver
