3.6.5. Motor / Motor brake C3H
Motor connection clamps - figure (see on page 51)
Motor cable lead designation*
M1/U U (motor)
U / L1 / C / L+ 1 U1
M2/V V (motor)
V / L2 2 U2
M3/W W (motor)
W / L3 / D / L- 3 U3
PE PE (motor)
YE / GN YE / GN YE / GN
* depending on the cable type
A motor output filter is required for motor cables >50m. Please contact us.
Shielding connection of the motor cable
The motor cable should be fully shielded and connected to the Compax3 housing.
The shield of the motor cable must also be connected with the motor housing. The
fixing (via plug or screw in the terminal box) depends on the motor type.
Attention - Please wire the motor holding brake!
Connect the brake only on motors which have a holding brake! Otherwise make no
brake connections at all.
Requirements cables for motor holding brake
If a motor holding brake is present, one cable of the motor holding brake must be
fed on the device side through the toroidal core ferrite provided as accessory
ZBH0x/xx (63Ω @1MHz, di=5.1mm), in order to ensure error-free switching on and
off of the motor holding brake.

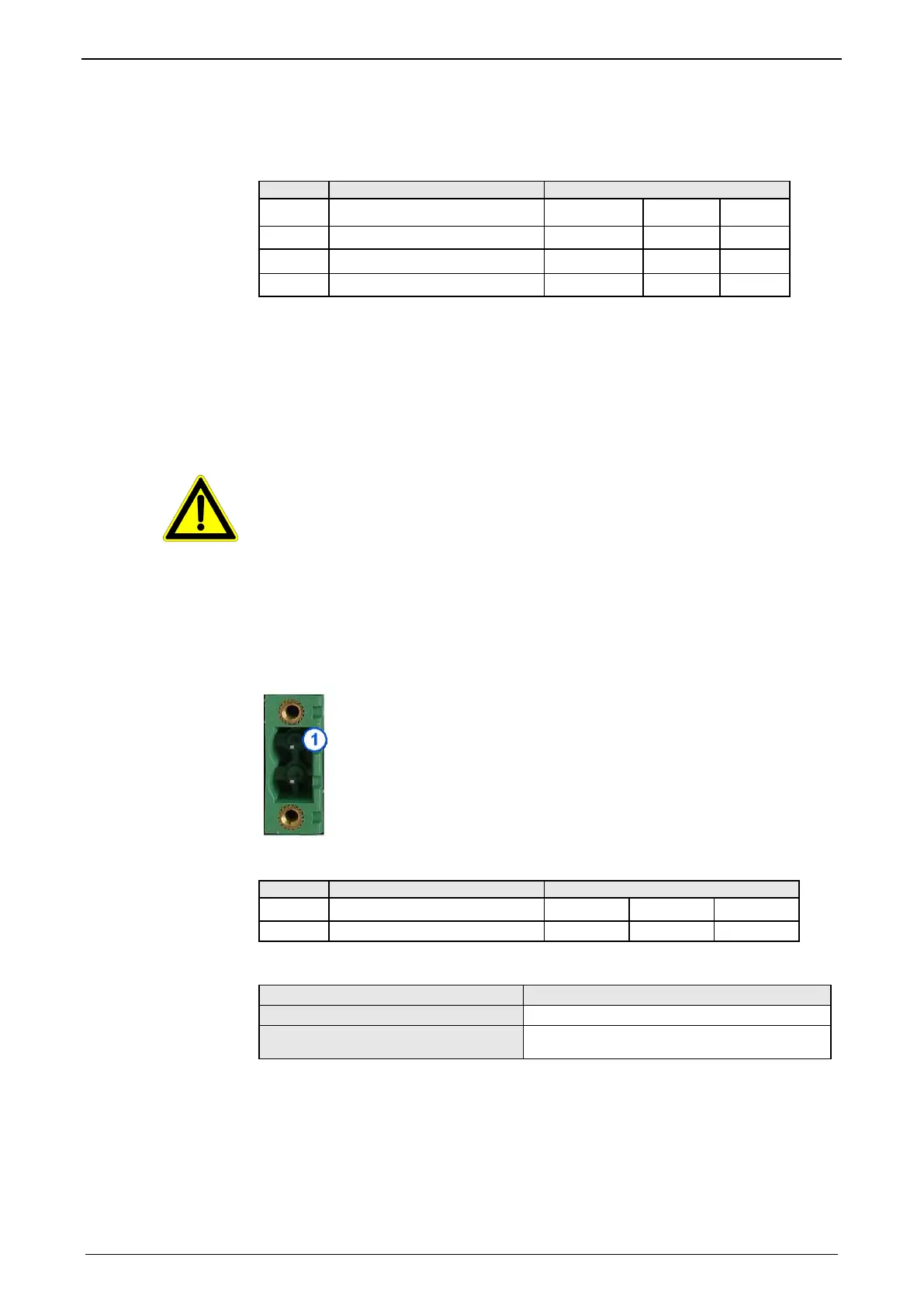

Connection of motor brake X3 - figure (see on page 53)
Motor cable lead designation*
1 BR
WH 4 Br1
2 GND
BK 5 Br2
Motor holding brake output
Motor holding brake output Compax3
Voltage range
21 – 27VDC
Maximum output current (short circuit
proof)
1.6A
