Setting up Compax3
192-120100 N16 C3I10T10 - December 2010
105
Setting values:
Increments per motor revolution / pitch
Unit: Increments Range: Standard value: 1024
Number of steps per motor revolution / pitch
Invert Motor Rotation/Direction Polarity
Unit: - Range: no / yes Standard value: no
Reverse direction inverts the sense of rotation, i.e. the direction of movement of the motor
is reversed in the case of equal setpoint.

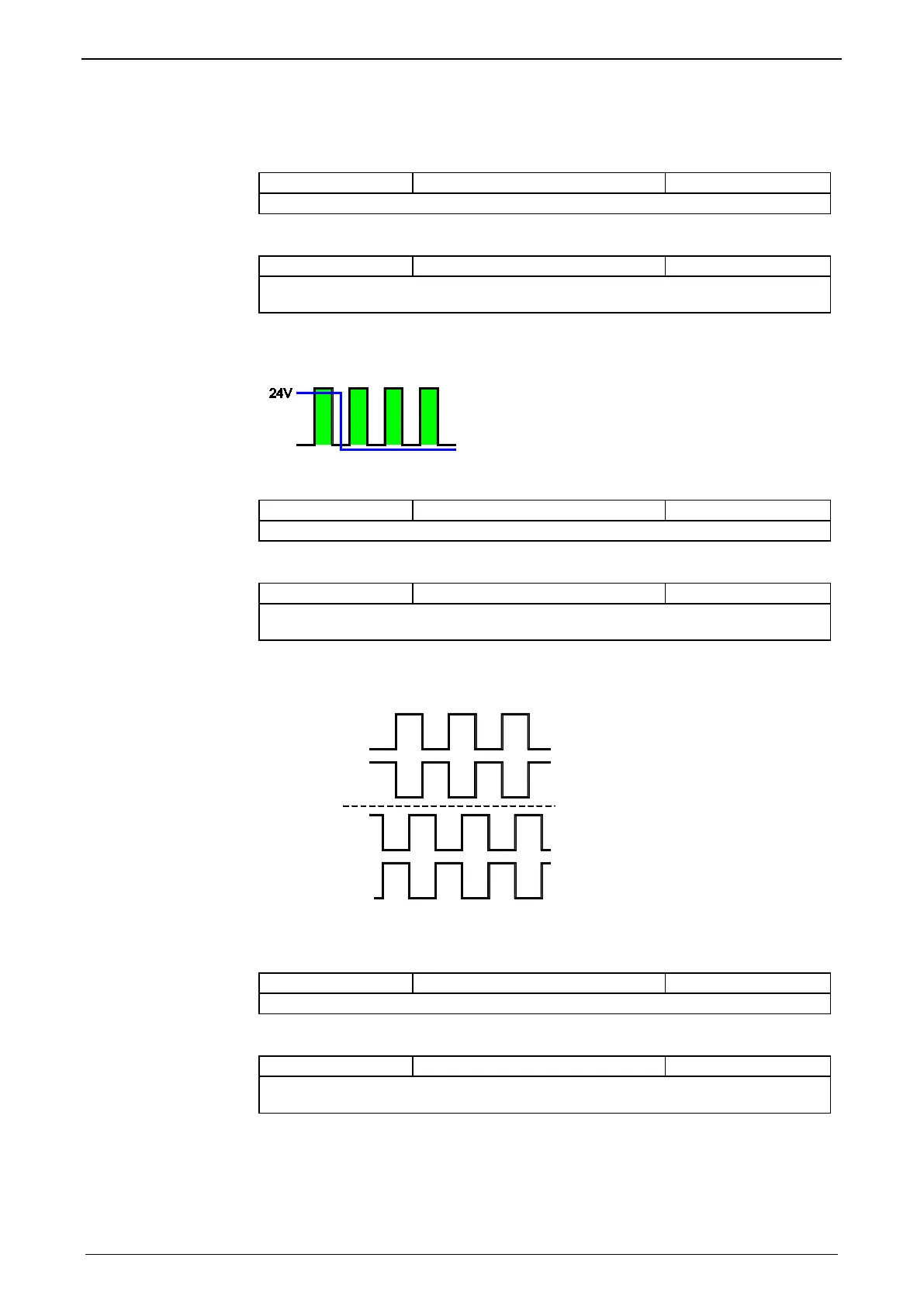

4.1.7.4 Step/Direction Input 24V
Increments per motor revolution / pitch
Unit: Increments Range: Standard value: 1024
Number of steps per motor revolution / pitch
Invert Motor Rotation/Direction Polarity
Unit: - Range: no / yes Standard value: no
Reverse direction inverts the sense of rotation, i.e. the direction of movement of the motor
is reversed in the case of equal setpoint.
4.1.7.5 Encoder input RS422
A\
A
B\
B
RS422
The zero pulse is not evaluated!
Increments per motor revolution / pitch
Unit: Increments Range: Standard value: 1024
Number of steps per motor revolution / pitch
Invert Motor Rotation/Direction Polarity
Unit: - Range: no / yes Standard value: no
Reverse direction inverts the sense of rotation, i.e. the direction of movement of the motor
is reversed in the case of equal setpoint.

Parker Compax3 I10T10 Specifications

General

Rated Current	10 A
Protection Class	IP20
Supply Voltage	200-480 VAC
Control Interface	EtherCAT, CANopen
Feedback Options	Resolver
