Parker Compax3 I10T10 User Manual

Compax3 Accessories
C3I10T10
176
192-120100 N16 C3I10T10 - December 2010
9.2.1.5 Mains filter NFI03/01& NFI03/03
for PSUP10D6 and PSUP20D6

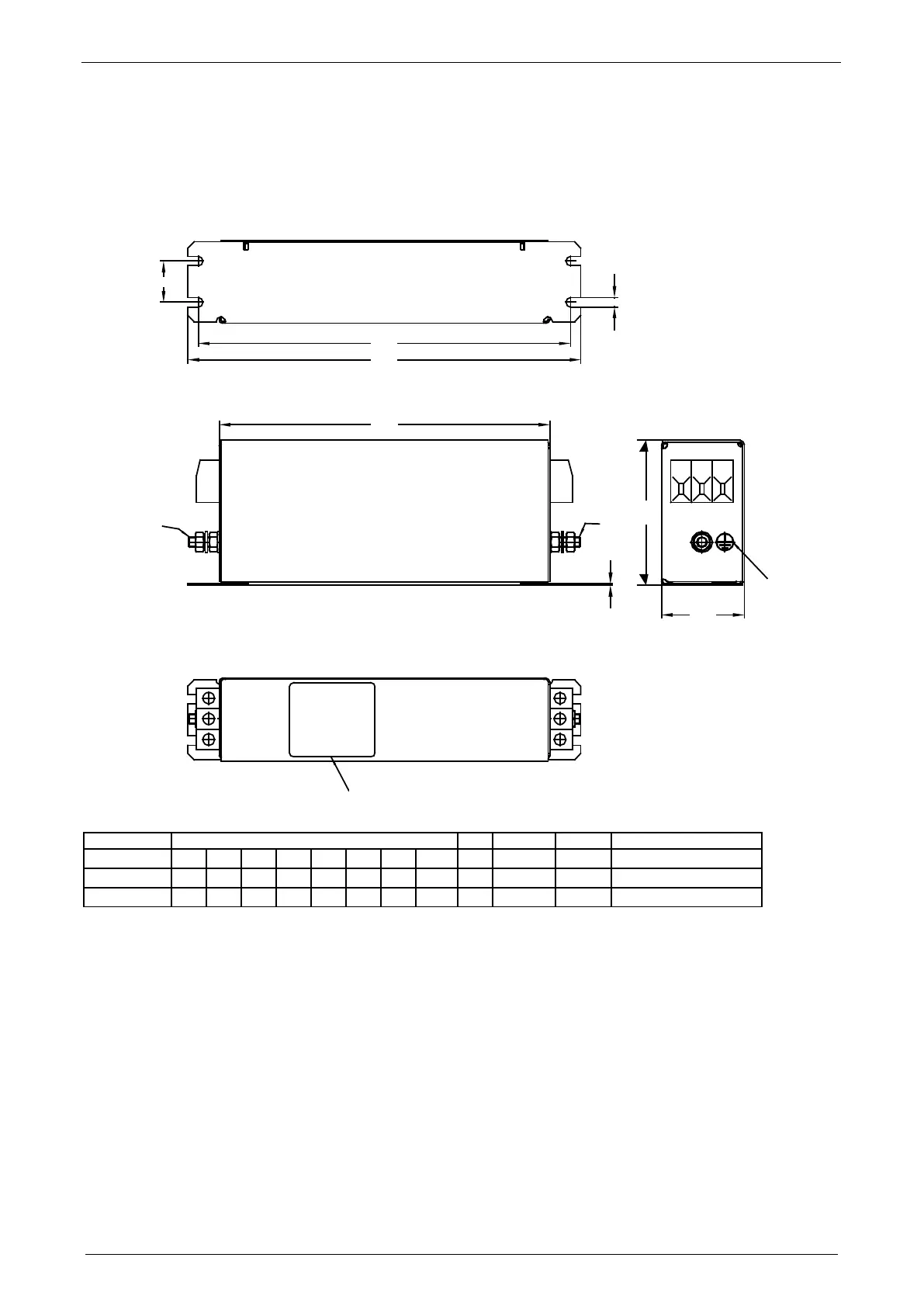

Dimensional drawing:
I I
PE PE
A
B
Label
G
D
L1
L2
L3
L1
L2
L3
F
C
E
H
Front view
Coined Earthing
Symbol on both
sides
Load Terminals
Line Terminals
Top view
Side view
Bottom view
Filter type
Weight
GND(I)
Connection clamp
A B C D I F G H kg
NFI03/01 240 50 85 270 0.8 30 255 5.4 1.5 M5 10mm
2
NFI03/03 220 85 90 250 1.0 60 235 5.4 2.4 M6 16mm
2
Stated in mm

Parker Compax3 I10T10 Specifications

General

Rated Current	10 A
Protection Class	IP20
Supply Voltage	200-480 VAC
Control Interface	EtherCAT, CANopen
Feedback Options	Resolver
