Compax3 device description

C3I10T10

192-120100 N16 C3I10T10 - December 2010

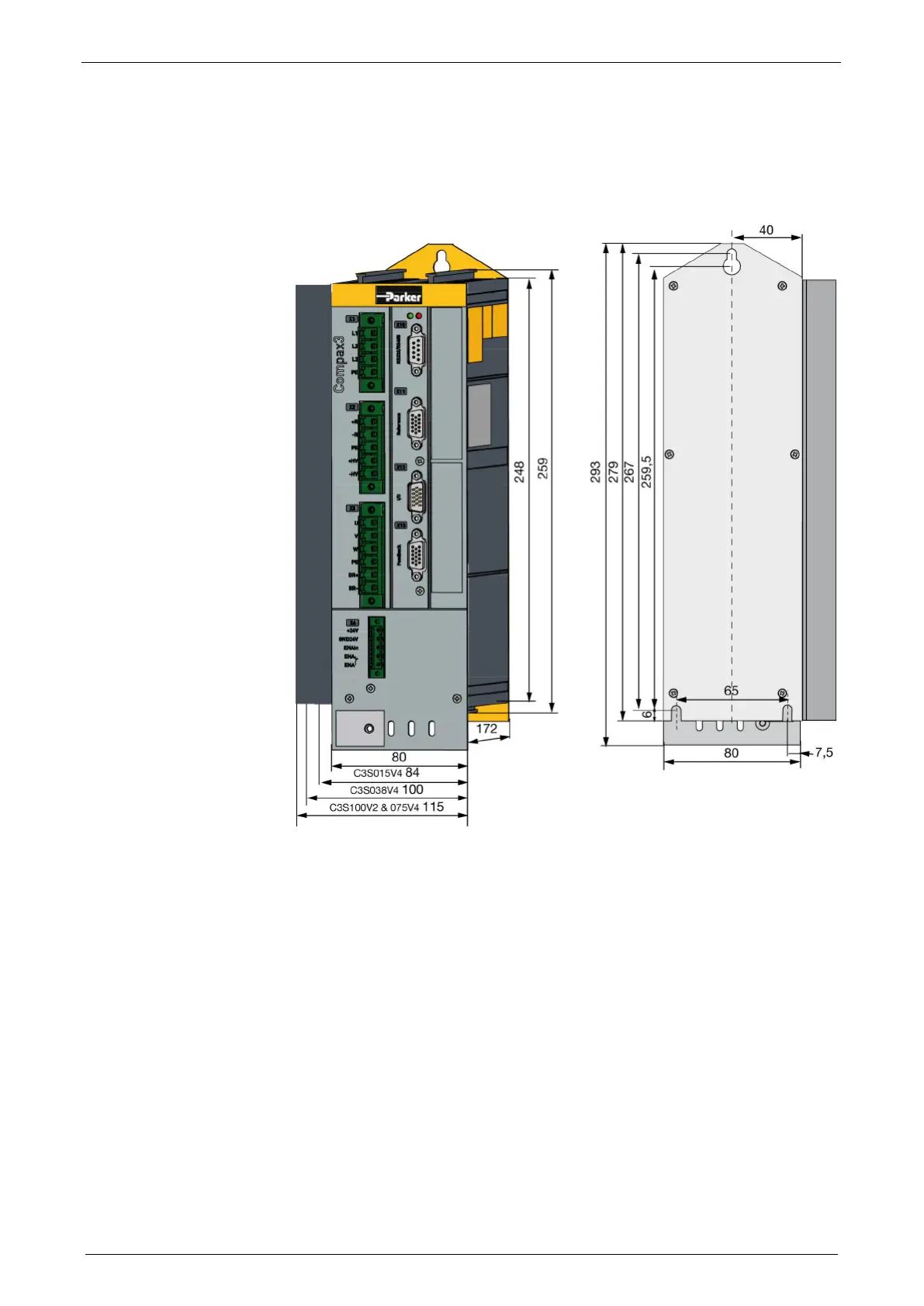

3.9.1.2 Mounting and dimensions Compax3S100V2 and

S0xxV4

Mounting:

3 socket head screws M5

Stated in mm

Please respect an appropriate mounting gap in order to ensure sufficient

convection:

 At the side: 15mm

 At the top and below: at least 100mm
