Compax3 device description
C3I10T10
70
192-120100 N16 C3I10T10 - December 2010

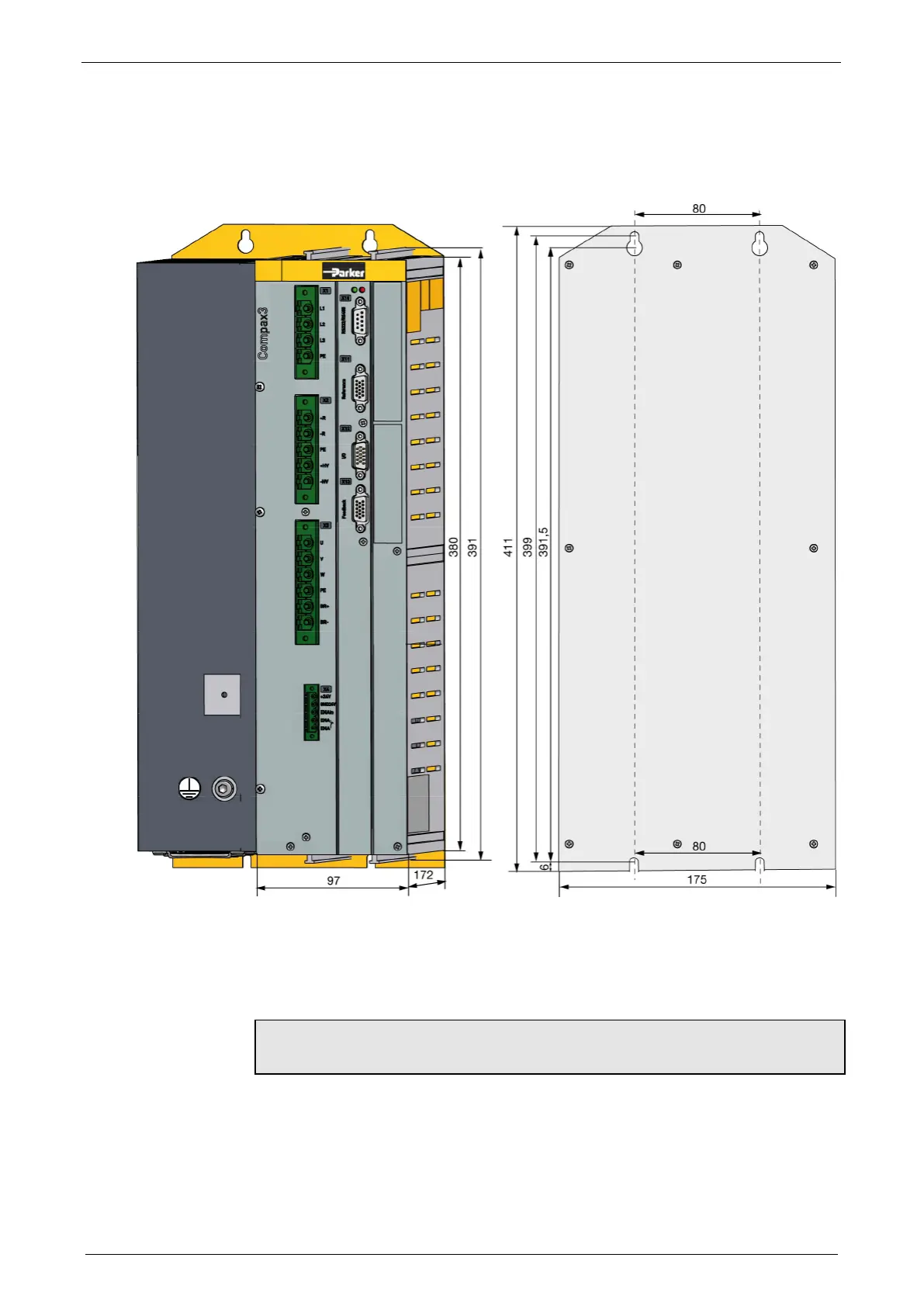

3.9.1.4 Mounting and dimensions Compax3S300V4
Mounting:
4 socket head screws M5
Stated in mm
Please respect an appropriate mounting gap in order to ensure sufficient
convection:
ļµ At the side: 15mm
ļµ At the top and below: at least 100mm
Compax3S300V4 is force-ventilated via a fan integrated into the heat
dissipator!
