Parker Compax3 I10T10 User Manual

Compax3 device description
C3I10T10
46
192-120100 N16 C3I10T10 - December 2010

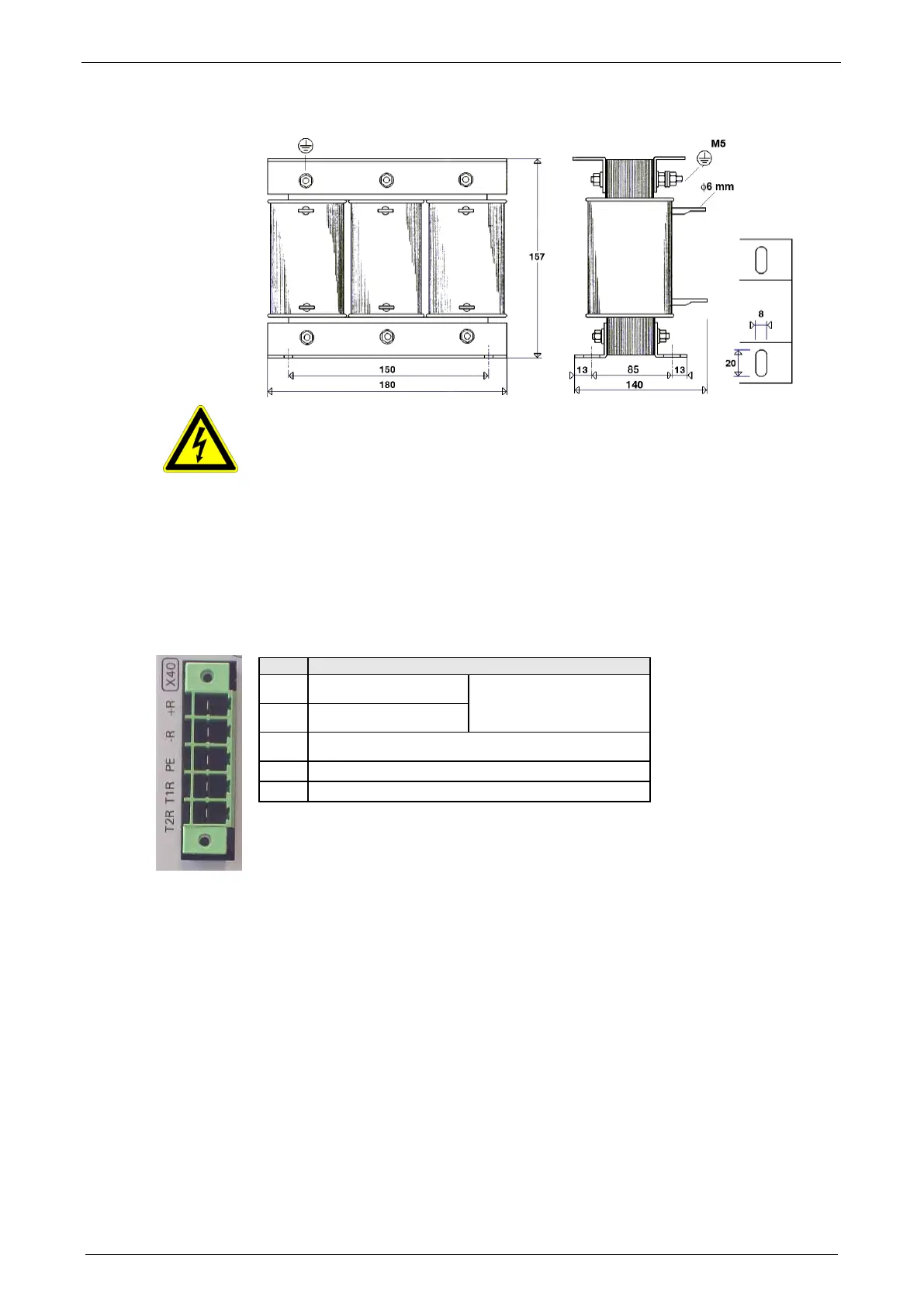

Dimensional drawing: LCG-0055-0.45 mH-UL
Caution - Risk of Electric Shock!
Always switch devices off before wiring them!
Dangerous voltages are still present until 10 min. after switching off the power
supply.
3.5.6. Braking resistor / temperature switch PSUP (mains module)
The energy generated during braking operation must be dissipated via a braking
resistor.
Connector X40
Pin
Description
+R + Braking resistor
short-circuit proof!
-R - Braking resistor
PE PE
T1R Temperature Switch
T2R Temperature Switch

Parker Compax3 I10T10 Specifications

General

Rated Current	10 A
Protection Class	IP20
Supply Voltage	200-480 VAC
Control Interface	EtherCAT, CANopen
Feedback Options	Resolver
