9.2.1.1 Mains filter NFI01/01
for Compax3 S025 V2 and Compax3 S063 V2

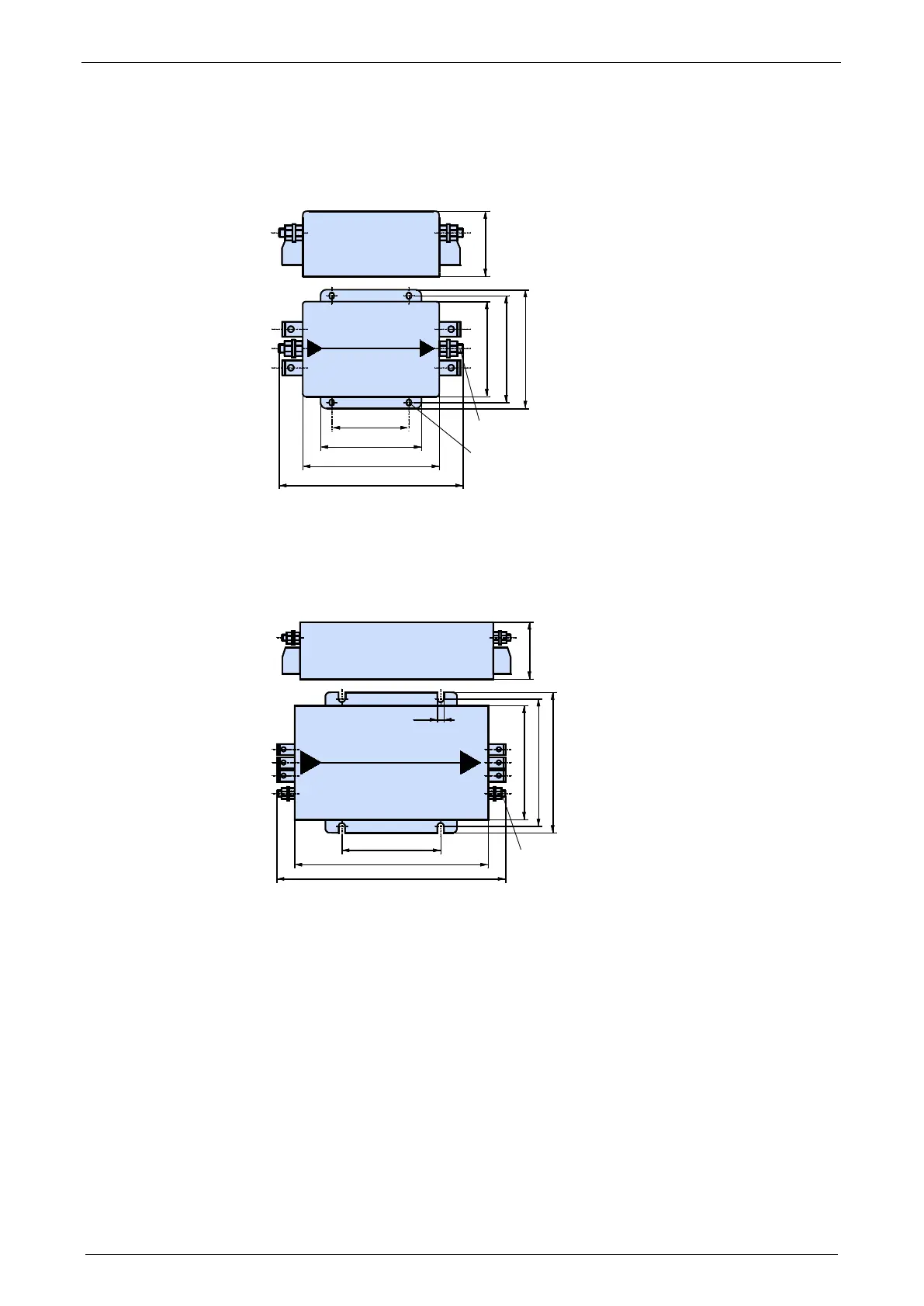

Dimensional drawing:
50,8±0,3
85,4
116
139
79,5
101
88,9±0,4
55,5
Ø 4
5,2 x 4
L
I
N
E
L
O
A
D
9.2.1.2 Mains filter NFI01/02
for Compax3 S0xx V4, Compax3 S150 V4 and Compax3 S1xx V2
Dimensional drawing:
65
6,6
177
151
70±0,3
140
125
111
Ø 4
L
I
N
E
L
O
A
D

Parker Compax3 I10T10 Specifications

General

Rated Current	10 A
Protection Class	IP20
Supply Voltage	200-480 VAC
Control Interface	EtherCAT, CANopen
Feedback Options	Resolver
