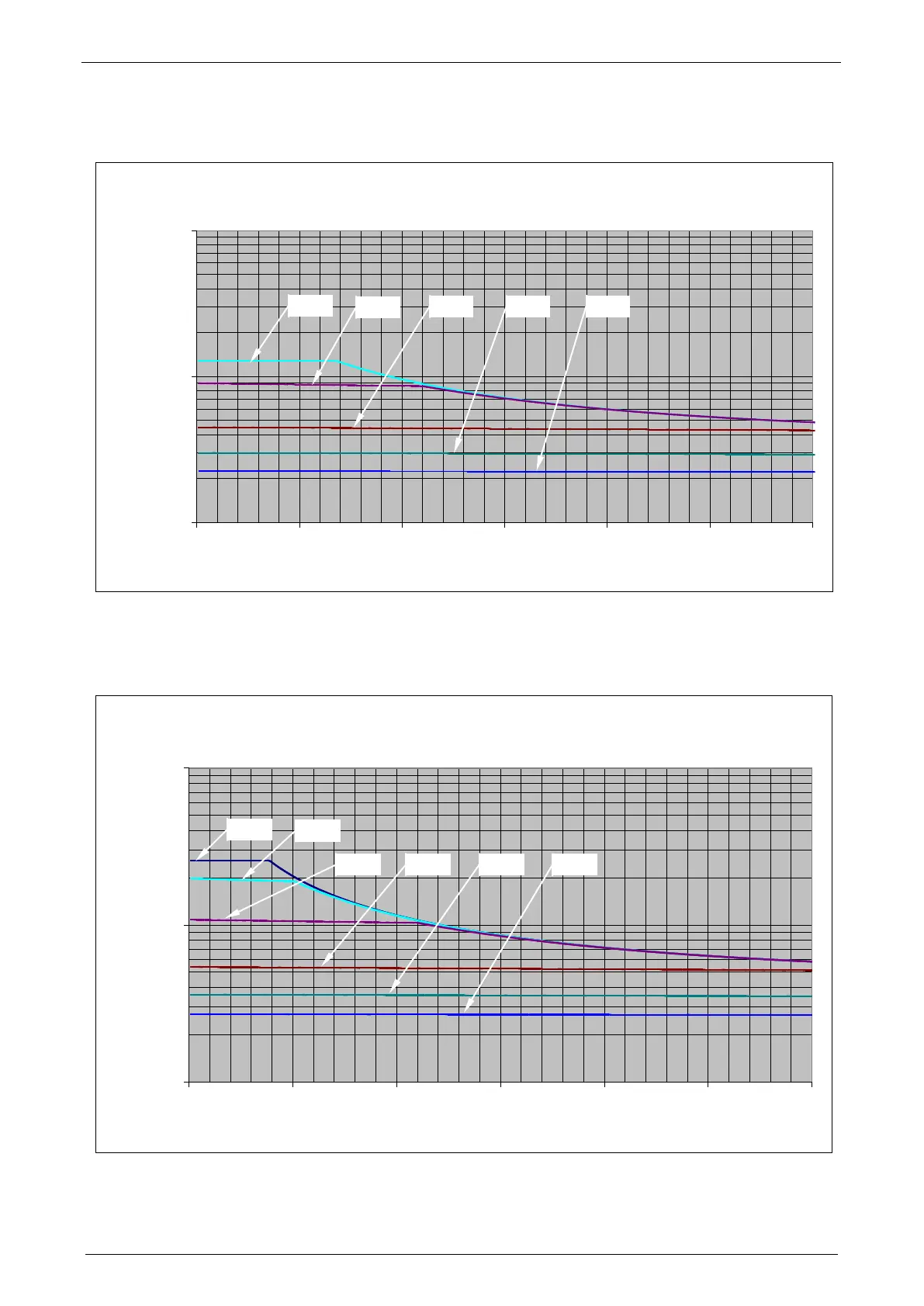

9.4.1.6 Permissible braking pulse power: BRM10/02 with
C3S150V4
BRM10/02 (400/480V)
1000
10000
100000
0 0,5 1 1,5 2 2,5 3
Braking time [s]
PBdyn [W]
9.4.1.7 Permissible braking pulse power: BRM05/01 with
C3S063V2
BRM05/01 (230V)
100
1000
10000
0 0,5 1 1,5 2 2,5 3
Braking time [s]
PBdyn [W]
F=10
F=5
F=2
F=1
F=0.5
F=20
F=10
F=5
F=2
F=1
F=0.5
