Chapter B: Preventive maintenance 2 Maintenance procedures
Technical manual Planmeca PlanMill 40 43

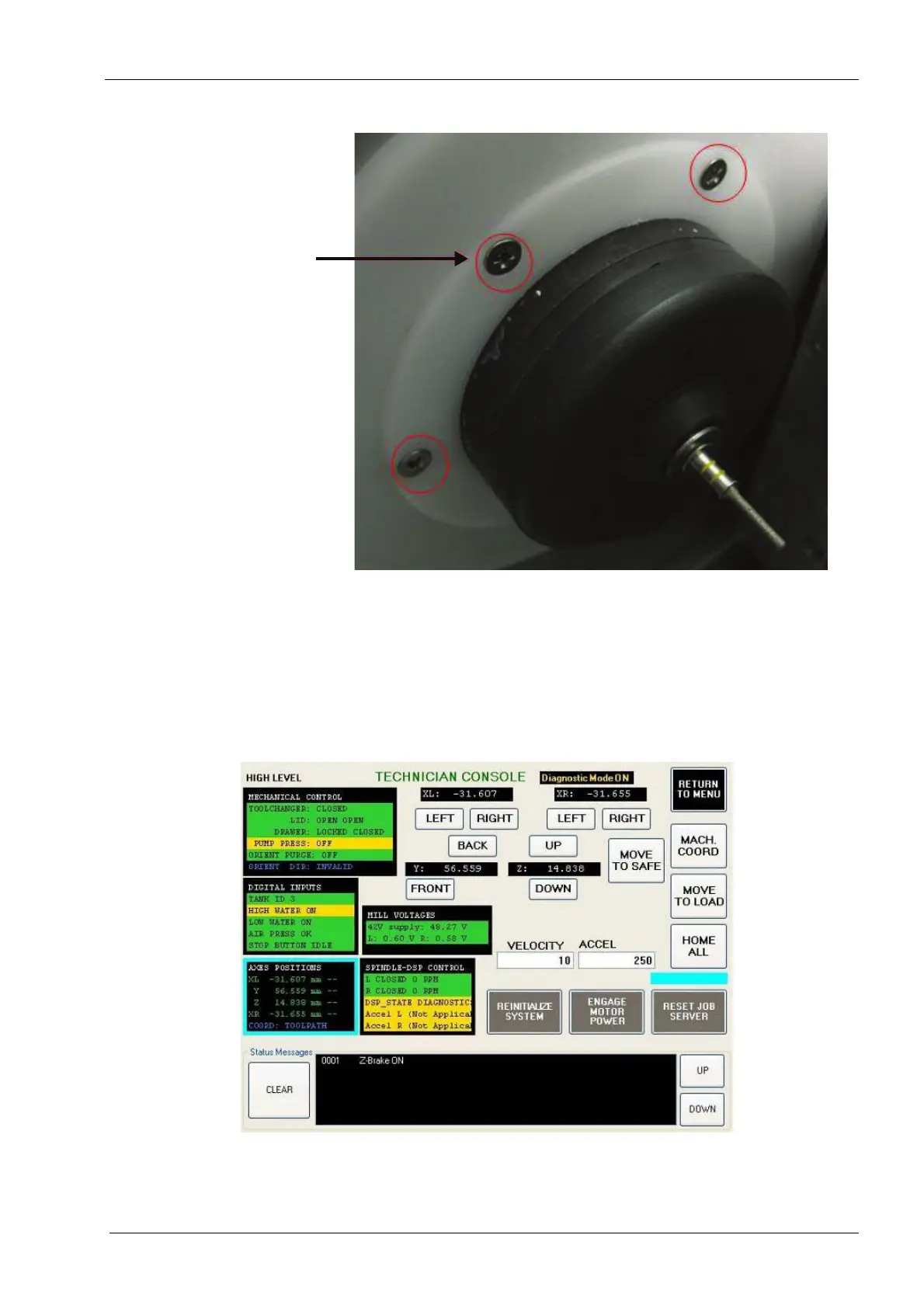

Figure 33: Removing spindle seal
12. Once the six screws have been removed from the inner seal, you will need to loosen
the inner seal so that it moves away from the spindle carriage, this best done by
moving the spindles inward using the motion system.
13. Close the lid and touch REINITIALIZE SYSTEM button.
14. After reinitializing is ready, move the spindel carriage insward by selecting the Axis
Positions window. Upon driving the spindle inward the inner seal should slide with the
spindle exposing the packing material.
Figure 34: Using axis position controls to move spindles inward
15. Reselect the Mechanical Control box.
16. Select the Open Lid button.
6 pcs Philips
screws
