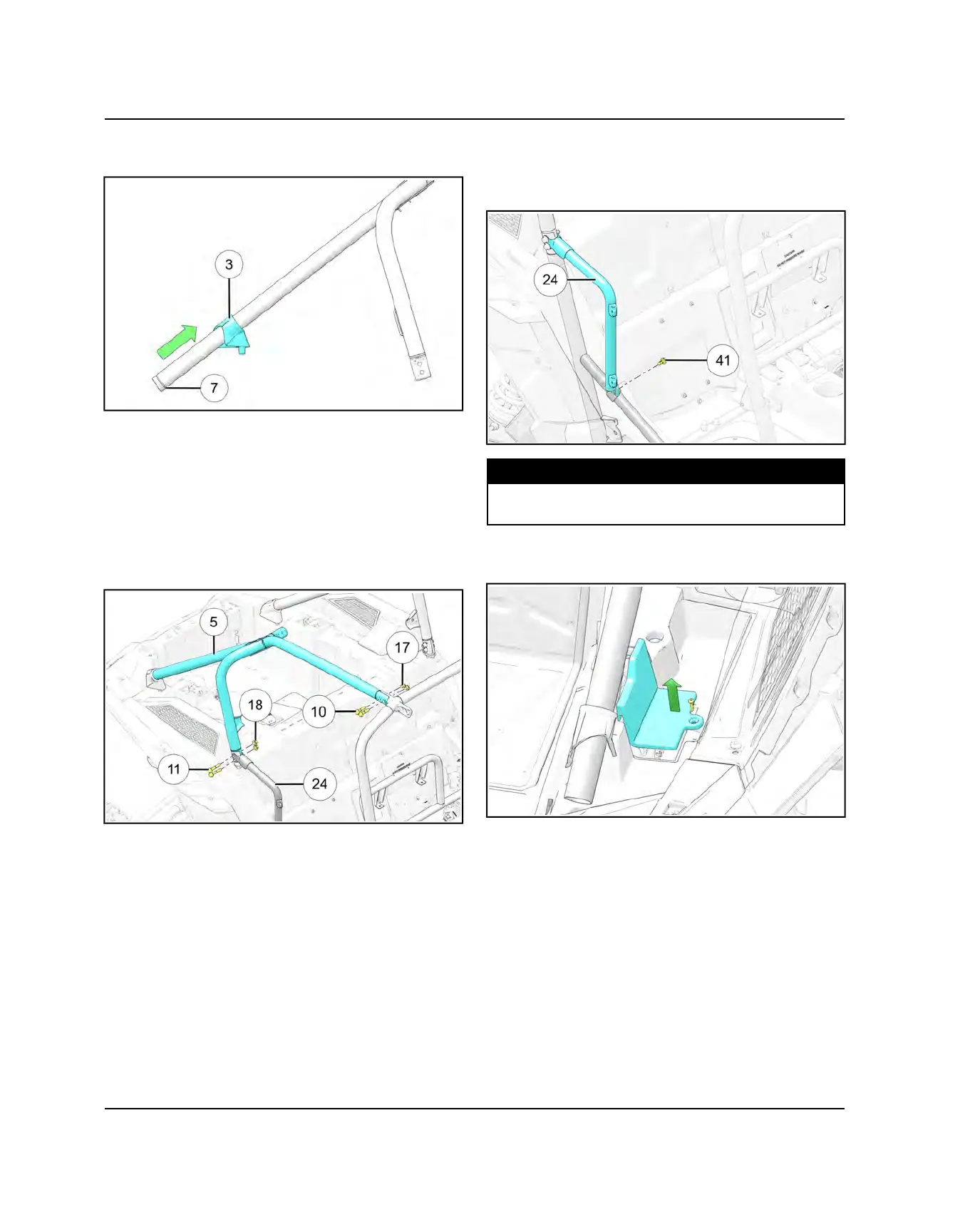

6. Slide the RH rear ROPS mount
w
onto the RH ROPS
as shown.
7. Install O-ring
u
approximately 3/4″ (20 mm) from the
end of the RH ROPS.
8. Install RH ROPS
t
onto vehicle. Loosely install M10
x 1.5 x 45 screws (PN 7519906)
a
and M10 x 1.5
Nyloc nuts (PN 7547746)
k
into the front mount
point. Install RH bolster
2 $
onto the middle mount.
Loosely install M10 x 1.25 x 55 screws (PN 7519956)
s
and M10 x 1.25 flanged Nyloc nuts (PN 7547333)
l
onto the bolster and middle mount point.
9. Align lower bolster mount on the outside of the rocker
frame mounting hole as shown. install M8 x 1.25 x 20
screw (PN 7518450)
4!
into the mount. Torque
fastener to specification.
TORQUE
Lower Bolster Mounting Fastener:
14 ft-lbs (19 Nm)
10.Remove the Torx fasteners retaining the rear ROPS
cover panels on both sides.
