Printing

QL-300 User Guide 105

2 Confirm the sensor position.

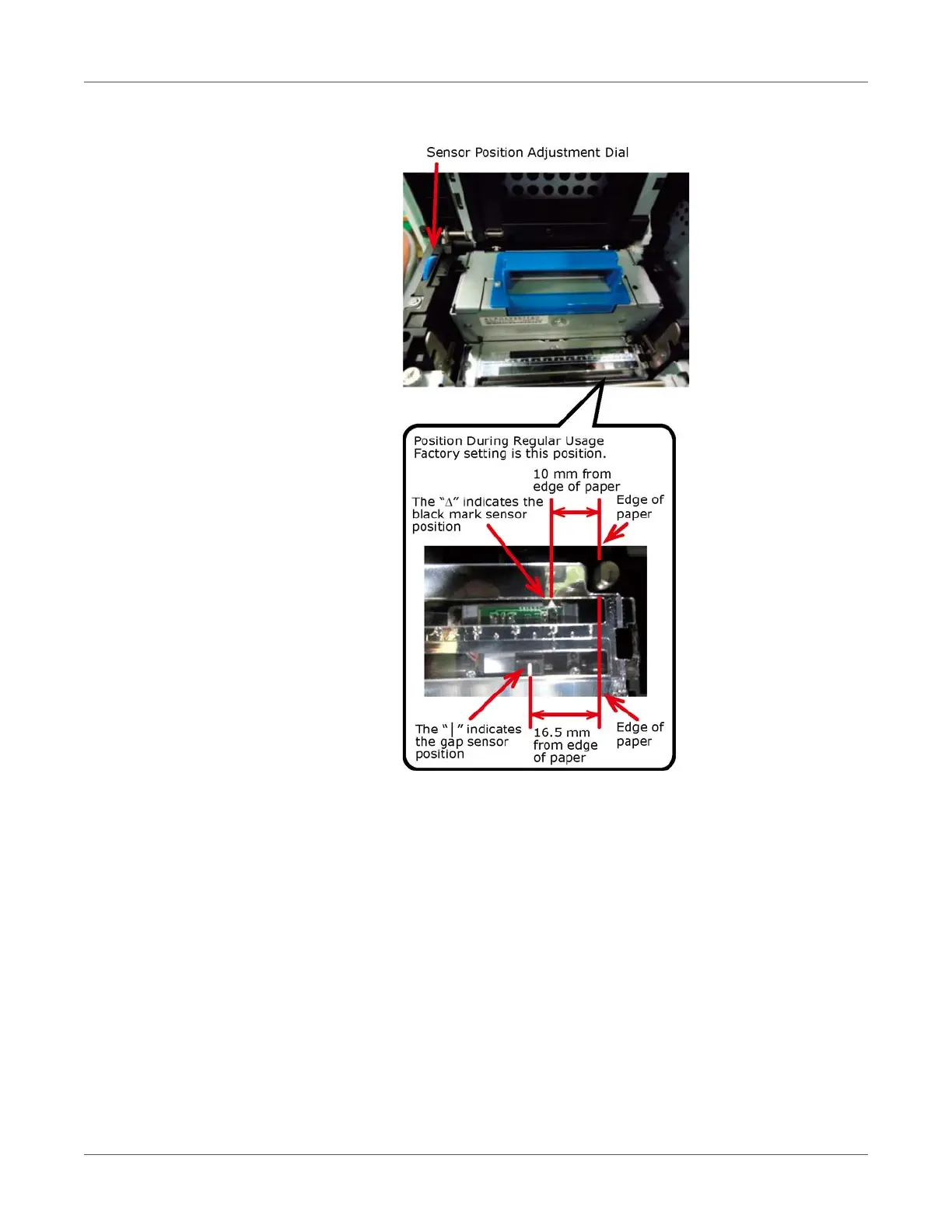

a) Check the black mark sensor position

Align the paper, and check the actual position of the black mark and the black mark

sensor position.
