QL-300 User Guide 104

Confirming the Unwinder Sensor Position

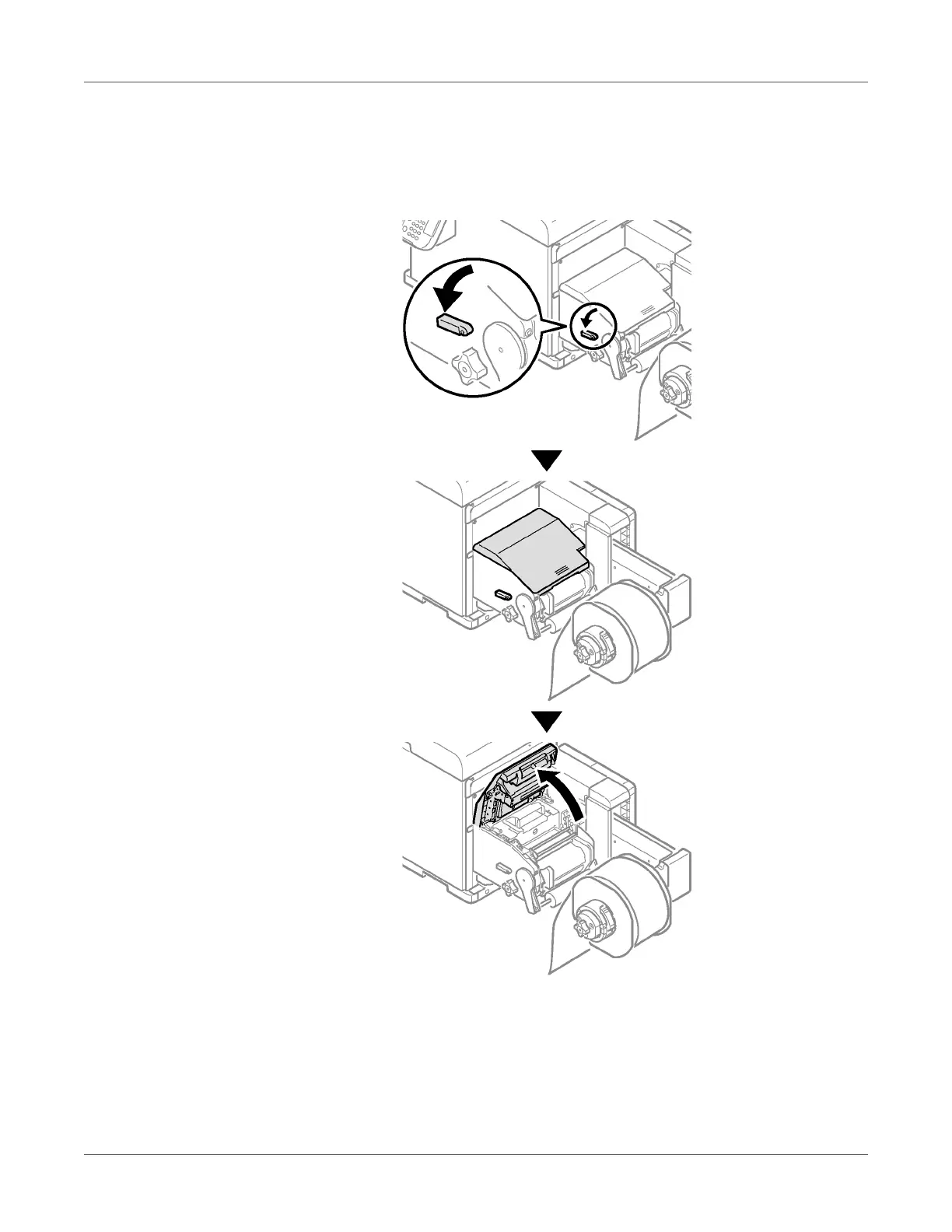

1 Lower the Unwinder Cover Open Lever to open the Unwinder Cover.

Open the Unwinder Cover manually in the direction indicated by the arrow until it locks.

Note: Open the Unwinder Cover until it locks securely.
