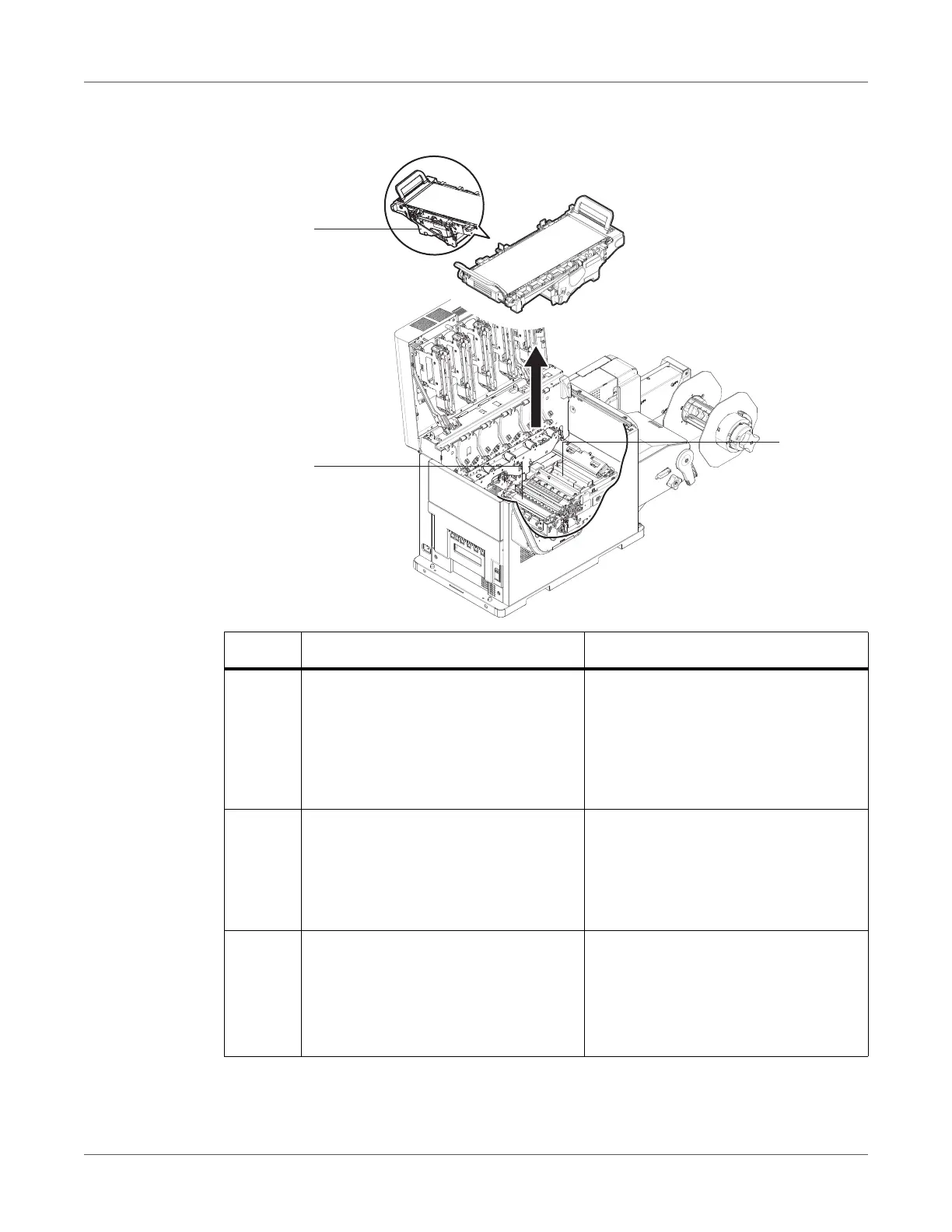

Printer Interior 2
# Part Description
1 Waste Toner Box Stores waste toner.
A message appears on the control
panel when the box is full of waste
toner.
The waste toner box is a wear item.
2 2nd Transfer Roller Transfers toner to the paper.
The 2nd transfer roller is a wear item.
The 2nd transfer roller is included with
the belt unit.
3 Paper Guide Remove when a paper jam occurs in
the paper transport path or when
cleaning the paper transfer roller.
The Paper Guide is a periodically
replaced part.
