Installation

QL-300 User Guide 31

Installation

Installing Cable Clamps

Cable clamps are provided with the unwinder. Use them to run the cable connected to the

printer's interface along the front.

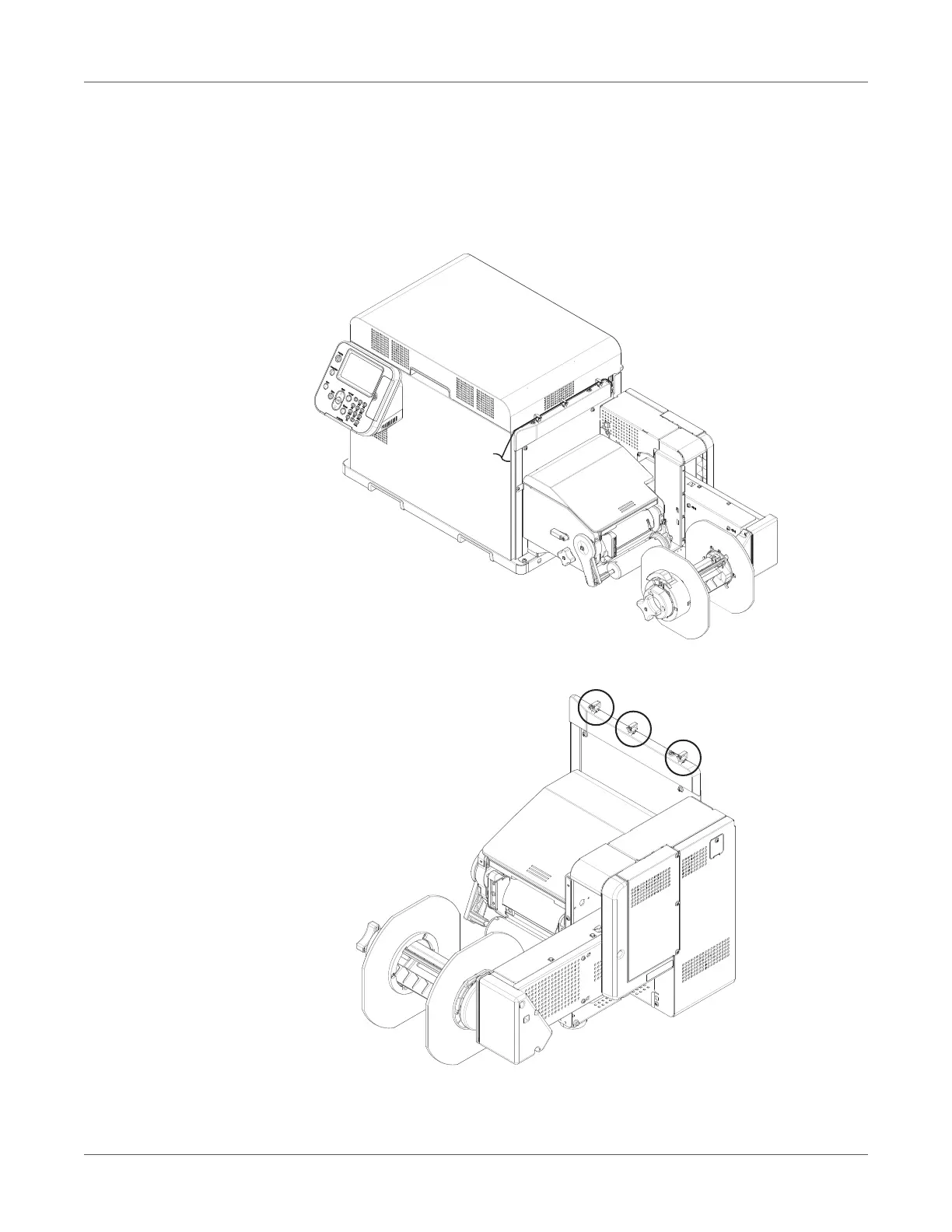

1 Install cable clamps (x 3 pieces).
