Installation

QL-300 User Guide 15

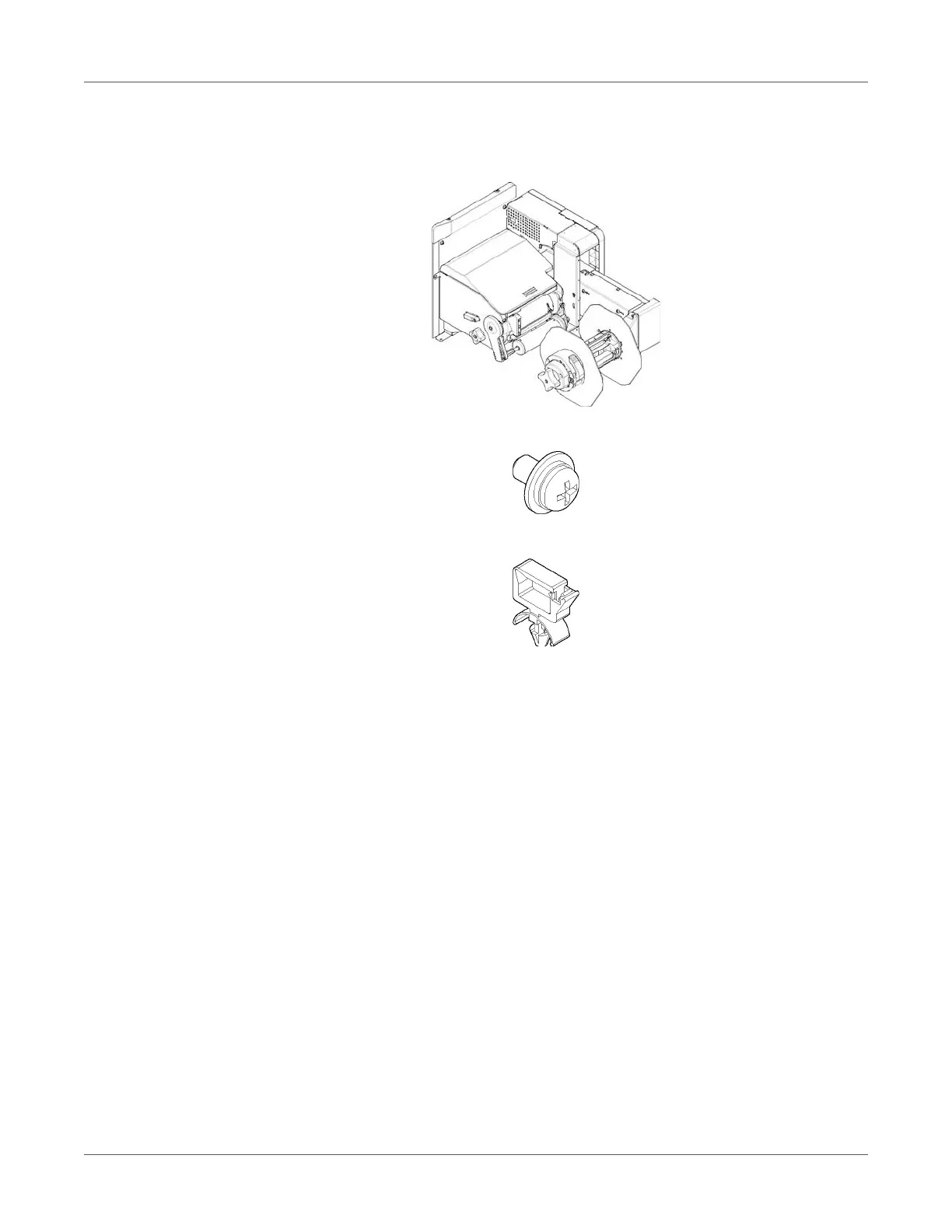

Unwinder

• Unwinder

• Mounting screws (x3)

• Cable clamps (x3)

Choosing an Installation Location

For safe and comfortable operations, install the product in a location that satisfies the conditions

in the following sections.

• “Precautions Related to Installation” on page 15

• “Choosing an Installation Location” on page 15

• “Installation Space” on page 17

Be sure to read these sections before starting installation work.

Precautions Related to Installation

Warnings

• Do not install the equipment in a location that is near open flame or may become very hot.

• Do not install the equipment in a location prone to chemical reactions (laboratory, etc.).

• Do not install the equipment in a location that is near flammable liquids, such as alcohol or

paint thinner.
